7800783 Murray - EMR175330H, 17.5HP 33" Premium Rider (2011)

Model: 7800783

Back To Assemblies

Save Part Not Listed?
product name

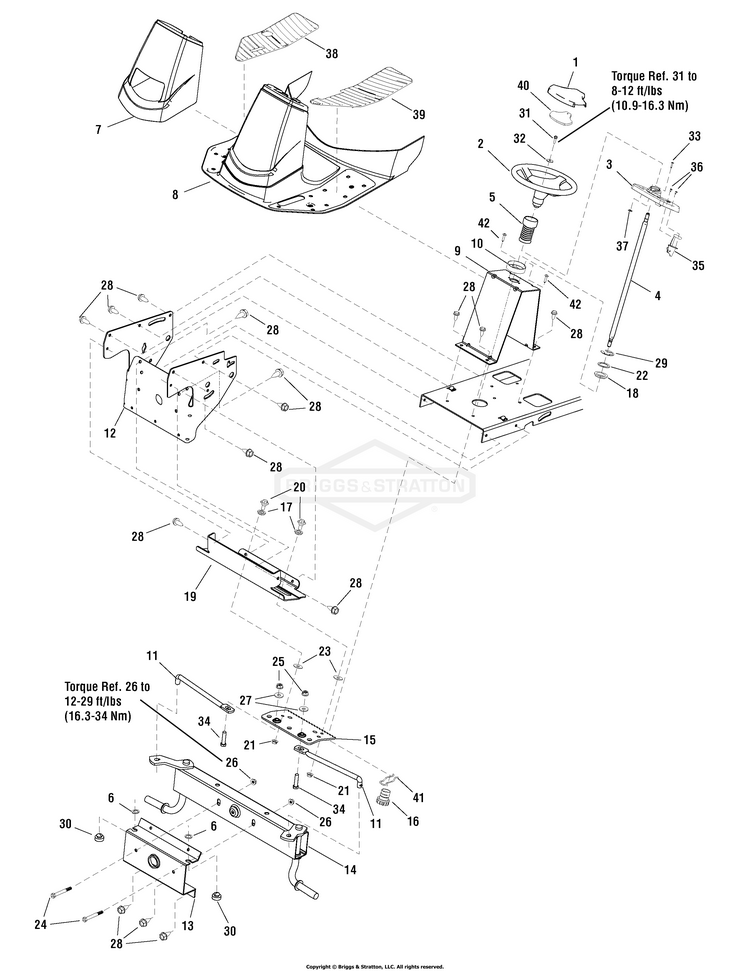

Steering Group (885157b)

...
...
1
COVER, Steering Wheel BS-1001982MA
...
2
STEERING WHEEL BS-1001980MA
...
3
DASHBOARD BS-885022YP
...
4
SHAFT, Shaft BS-885106YP
...
5
BELLOWS, Steering BS-054789MA
...
6
WASHER, Flat, .81 x .550 BS-017X91MA
...
7
FOOTREST SLEEVE BS-885007YP
...
8
FOOTREST, Plastic BS-885002YP
...
9
SUPPORT, Steering BS-1401055E701MA
...
10
BEARING, Upper Steering BS-1401090MA
...
11
LINK, Drag BS-1401123E701MA
...
12
BRACKET, Support BS-885036AYP
...
13
BRACKET, Axle Front BS-1401376E701MA
...
14
AXLE AND SPINDLE ASSEMBLY BS-885081AYP
...
15
RACK, Steering BS-1401046E701MA
...
16
GEAR, Pinion BS-1401099MA
...
17
ROLLER BS-1401102MA
...
18
BEARING, Lower Steering BS-1401098MA
...
19
PLATE, Gear Mounting BS-1401058E701MA
...
20
BOLT, Shoulder, 5/16-18 x 1-1/4 BS-009X67MA
...
21
NUT, HEX FLNG,5/16-18 BS-704067
...
22
WASHER, Flat, 1-1.3 BS-17X118ZMA
...
23
WASHER, .328 x 1.062 x .062 BS-17X201MA
...
24
BOLT, Hex Head, 5/16-24 x 2-3/4 BS-01X146MA
...
25
NUT, CNTR LCK, 3/8-16 BS-703893
...
26
NUT, 5/16-24 Hex Flange Lock, BZ BS-704279
...
27
WASHER, FLAT BS-710083MA
...
28
CAPSCREW, 5/16-18 x 3/4 BS-26X249MA
...
29
E-RING, Retainer BS-011X23MA
...
30
BUMPER, Rubber BS-1401377MA
...
31
BOLT, GR5, 1/4X.0750 BS-703466
...
32
WASHER, 5/16 x 1-1/4 OD BS-1933468SM
...
33
SCREW, Thread Forming, 10-16 x 1 BS-26X258MA
...
34
CAPSCREW,3/8-16X1.5 BS-703406
...
35
THROTTLE CONTROL BS-885240YP
...
36
SCREW, Self Tap, #8 x 3/8 BS-26X201MA
...
37
TINNERMAN CLIP BS-885118YP
...
38
FLOORMAT, RH BS-885102YP
...
39
FLOORMAT, LH BS-885103YP
...
40
SUPPORT PLATE, Steering BS-885223AYP
...
41
RETAINER, Spring BS-094131MA
...
42
SCREW, Thread Forming, 10-24 BS-26X270MA
