7800783 Murray - EMR175330H, 17.5HP 33" Premium Rider (2011)

Model: 7800783

Back To Assemblies

Save Part Not Listed?
product name

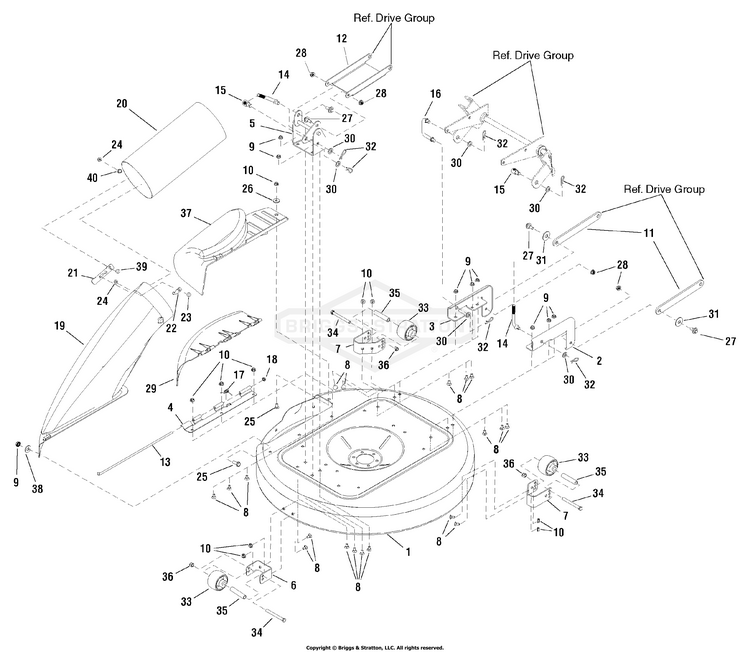

33" Mower Deck - Housing & Arbors Group (885315)

...
...
1
BLADE HOUSING KIT, 33" BS-885332DYP
...
2
BRACKET, Top Deck LH BS-885045DYP
...
3
BRACKET, Top Deck RH BS-885047DYP
...
4
HINGE, Mulching Cover BS-885094DYP
...
5
FRONT DECK ADJUSTMENT ASSY BS-885352DYP
...
6
ANTI SCALP BRACKET, Front BS-7033570BMYP
...
7
ANTI SCALP BRACKET, Rear BS-7033571BMYP
...
8
BOLT BS-703159
...
9
NUT, 5/16-18, GR5 BS-703409
...
10
NUT, HEX FLNG,5/16-18 BS-704067
...
11
ARM, Rear BS-885039DYP
...
12
HANGER, Front BS-885052DYP
...
13
ROD CHUTE BS-7105174YP
...
14
ROD, Lift Link BS-885348YP
...
15
ADJUSTING NUT BS-885115YP
...
16
LIFT ROD, Fixed BS-885349YP
...
17
SPRING, Deflector BS-885227YP
...
18
PUSH CAP BS-7026483YP
...
19
REAR DISCHARGE CHUTE BS-885005YP
...
20
CHUTE EXTENSION, Upper BS-885066YP
...
21
RUBBER STRAP BS-054695MA
...
22
PIN BS-054563MA
...
23
BOLT, Carriage, 1/4-20 x 5/8 BS-002X39MA
...
24
NUT .25-20 FLANGELOCK BS-015X89MA
...
25
BOLT, Round Head, Short Square Neck BS-703185
...
26
WASHER,FLAT .33 1. 16 BS-017X45MA
...
27
BOLT, SHOULDER BS-702315
...
28
NUT, CNTR LCK, 3/8-16 BS-703893
...
29
MULCH COVER BS-885016YP
...
30
WASHER BS-703128
...
31
WASHER, 1/2 x 1-1/2 BS-17X120MA
...
32
PIN, 3/32 X 1.6 BS-703300
...
33
WHEELS, Anti Scalp BS-7019190YP
...
34
CAPSCREW,3/8-2X3.75 BS-703876
...
35
SPACER, 3" Long BS-7015272YP
...
36
NUT, HEX, 3/8-24 BS-703901
...
37
DEFLECTOR, CHUTE BS-885093YP
...
38
WASHER, FLAT 5/16 BS-704015
...
39
BOLT, 1/4-20 x 1 BS-004X71MA
...
40
NUT, HEX, KEPS,1/4-20 BS-703914
