7800783 Murray - EMR175330H, 17.5HP 33" Premium Rider (2011)

Model: 7800783

Back To Assemblies

Save Part Not Listed?
product name

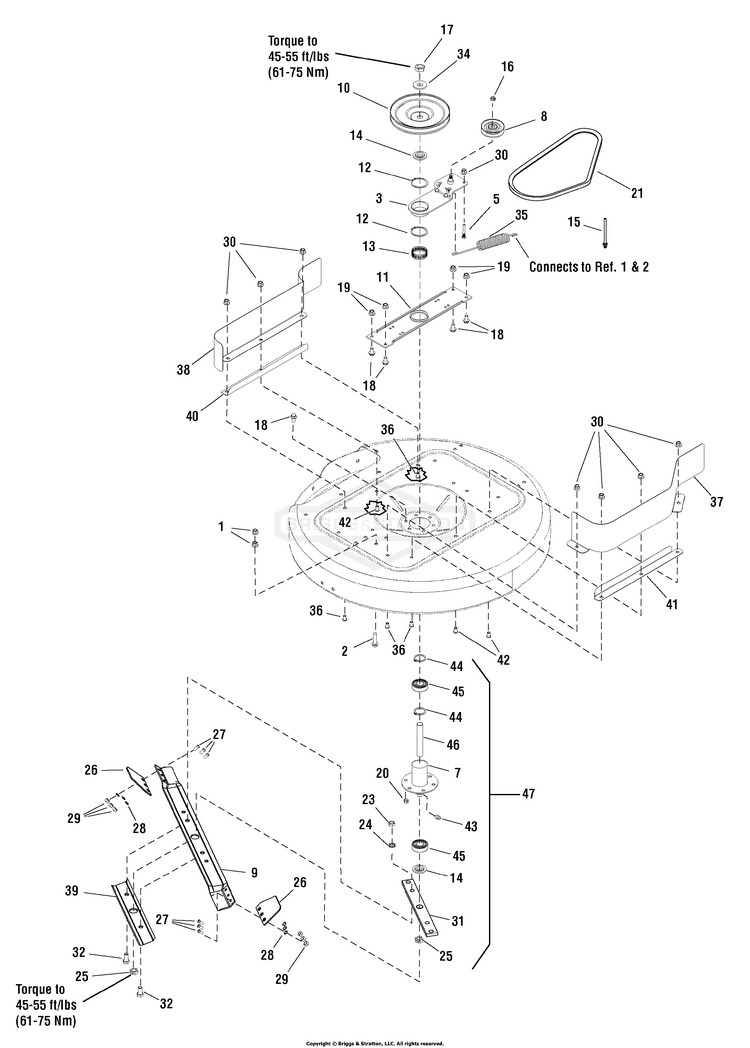

33" Mower Deck - Arbors Group (885315b)

...
...
1
NUT, HEX FLNG,5/16-18 BS-704067
...
2
BOLT, HEX, 5/16-18X2 BS-704062
...
3
BLADE, Idler Bracket BS-885309DYP
...
5
BELT GUIDE BS-094384MA
...
7
HOUSING, Spindle BS-7052294YP
...
8
IDLER PULLEY BS-1401252MA
...
9
BLADE, 33" (With Air Lift Holes) BS-7019523BZYP
...
10
PULLEY, 33" Input BS-885019YP
...
11
BRACE, Spindle BS-7038018BMYP
...
12
RING, Retaining BS-7010740YP
...
13
TOLERANCE RING BS-7012670YP
...
14
WASHER, Spindle BS-7014407SM
...
15
BELT GUIDE, Long BS-885078AYP
...
16
NUT, CNTR LCK, 3/8-16 BS-703893
...
17
NUT, Hex, Jam, 3/4F GR8 BS-7074467SM
...
18
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
19
NUT, 3/8-16 BS-703333
...
20
NUT, CNTR LCK, 3/8-16 BS-703893
...
21
BELT, Blade Drive, 33" BS-885018YP
...
23
NUT BS-703903
...
24
WASHER, Internal Tooth Lock, 1/2" BS-7090509YP
...
25
NUT, Hex Center Lock Jam, 5/8-18 BS-7090356YP
...
26
AIR LIFT, 33" BS-885054AYP
...
27
SCREW, Oval Head, 5/16 - 24 x 21/32 BS-7090228SM
...
28
WASHER, 5/16 BS-703587
...
29
NUT, 5/16-24 BS-703331
...
30
NUT, 5/16-18, GR5 BS-703409
...
31
HOLDER, Blade BS-885344BZYP
...
32
BOLT, 1/2-20 X 1-1/4" GD8 CZ BS-5025018X10SM
...
34
WASHER, 25/32 x 1.5 x .132 BS-7032028YP
...
35
SPRING, Extension PTO BS-885221YP
...
36
BOLT BS-703159
...
37
GUARD, LH BS-885133DYP
...
38
GUARD, RH BS-885354DYP
...
39
STIFFENER BS-885345AYP
...
40
BRACE, R.H. BS-885353AYP
...
41
BRACE, L.H. BS-885287AYP
...
42
SCREW, 5/16-18 BS-703354
...
43
FITTING, Grease BS-7010817SM
...
44
RING, Retaining BS-7012491SM
...
45
BEARING, BALL BS-2108202SM
...
46
SHAFT SPINDLE 30 L BS-7024687YP
...
47
SPINDLE ASSEMBLY, Complete (Includes Ref. Nos. 7, 14, 25, 31, 43, 44, 45 & 46) BS-7502343BMYP
