7800783 Murray - EMR175330H, 17.5HP 33" Premium Rider (2011)

Model: 7800783

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

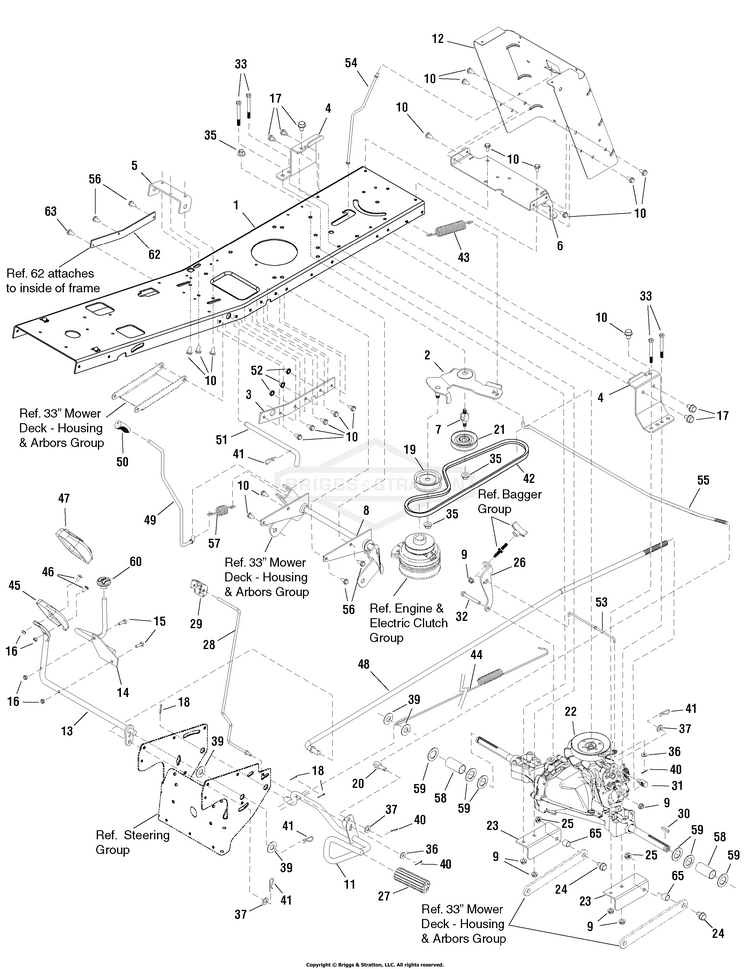

Drive Group (885313)

...
...
1
FRAME BS-885058AYP
...
2
IDLER PULLEY ARM ASSEMBLY BS-885069AYP
...
3
REINFORCEMENT PLATE, L.H. BS-885338AYP
...
4
BRACKET, Transaxle BS-885034AYP
...
5
BRACKET, Front Hanger Pivot BS-1401030E701MA
...
6
PLATE, Hitch BS-1401050E701MA
...
7
IDLER STUD BS-885064YP
...
8
LIFTER ASSEMBLY BS-885230AYP
...
9
NUT, HEX FLNG,5/16-18 BS-704067
...
10
CAPSCREW, 5/16-18 x 3/4 BS-26X249MA
...
11
CLUTCH & BRAKE PEDAL ASSEMBLY BS-885068AYP
...
12
PLATE, Rear BS-885269AYP
...
13
HYDRO ARM ASSEMBLY BS-885070AYP
...
14
REVERSE PEDAL ASSEMBLY BS-885089AYP
...
15
BOLT, 1/4-20X1, GR5 BS-703584
...
16
NUT, 1/4-20 BS-703251
...
17
SCREW, 5/16-18 x 1/2 BS-026X49MA
...
18
PIN, Cotter BS-030X35MA
...
19
IDLER PULLEY, Backside BS-1401309MA
...
20
NUT-ADJUSTING BS-094815ZMA
...
21
IDLER PULLEY, Fixed BS-1401252MA
...
22
*TRANSMISSION, Hydro Gear BS-885030YP
...
23
REAR HANGER BRACKET, R.H. BS-885053AYP
...
24
BOLT, Shoulder, 3/8-16 x 1 BS-885340YP
...
25
NUT, CNTR LCK, 3/8-16 BS-703893
...
26
BRACKET, Torque Strap BS-885031AYP
...
27
PEDAL-BRAKE BLACK RUB BS-1727261SM
...
28
ROD, Parking Brake BS-885104YP
...
29
KNOB, Parking Brake BS-885026YP
...
30
KEY, Square BS-056534MA
...
31
NUT, Adjusting BS-885076YP
...
32
SCREW BS-703868
...
33
BOLT, 5/16-18 BS-5025011X24SM
...
35
NUT, CNTR LCK, 3/8-16 BS-703893
...
36
WASHER, Flat, 3/4 BS-017X38MA
...
37
WASHER, FLAT .406X.81 BS-71072MA
...
39
WASHER, 0.641 x 1.38 BS-17X157MA
...
40
PIN, COTTER, 3/32X.75 BS-703312
...
41
PIN, 3/32 X 1.6 BS-703300
...
42
BELT, Drive, 33" BS-885015YP
...
43
SPRING, Extension BS-165X147MA
...
44
Spring, Brake Extension BS-885017YP
...
45
PEDAL, Hydro BS-885037AYP
...
46
BOLT, Carriage, 1/4-20 x 5/8 BS-002X39MA
...
47
PAD, Hydro Pedal BS-885086YP
...
48
ROD, Shift Link BS-885055YP
...
49
LEVER, Lift Deck BS-885048YP
...
50
GRIP .50 DELUXE- BLAC BS-094497MA
...
51
PIN, Front Hanger BS-1401118MA
...
52
NUT, 5/16-18, GR5 BS-703409
...
53
ROD, Roll Release BS-885059YP
...
54
ROD, Battery BS-885095YP
...
55
ROD - CLUTCH BS-1401305ZMA
...
56
SCREW, Self Tap, 5/16-18 x 7/8 BS-26X267MA
...
57
SPRING, Extension BS-165X154MA
...
58
SPACER BS-690554ZMA
...
59
WASHER, Flat, 1-1/4 BS-17X160MA
...
60
PEDAL PAD, Hydro Reverse BS-885228YP
...
61
SERVICE KIT, Lifter Assembly (Not Illustrated, Includes Ref. Nos. 8 and 49) BS-885282YP
...
62
REINFORCEMENT PLATE, R.H. BS-885337AYP
...
63
SCREW.25-20 S-T BS-26X263MA
...
65
SPACER BS-885341YP
