7800783 Murray - EMR175330H, 17.5HP 33" Premium Rider (2011)

Model: 7800783

Back To Assemblies

Save Part Not Listed?
product name

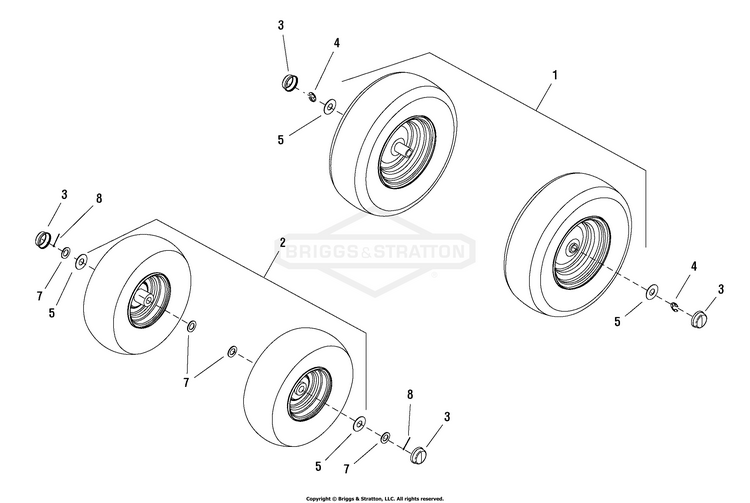

Wheel & Tire Group (885159)

...
...
1
REAR TIRE ASSEMBLY, 16/650 BS-885029YP
...
2
FRONT TIRE ASSEMBLY, 13/500 BS-885028YP
...
3
HUB CAP BS-094618MA
...
4
RING, E .750D .050T BS-0011X3MA
...
5
WASHER, Flat, 1.862 x .765 BS-17X195MA
...
7
WASHER, Flat, 3/4 BS-17X192MA
...
8
PIN, Cotter 1/8" x 1-1/4" BS-030X49MA
Schematic Image Zoomed
