7800783 Murray - EMR175330H, 17.5HP 33" Premium Rider (2011)

Model: 7800783

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

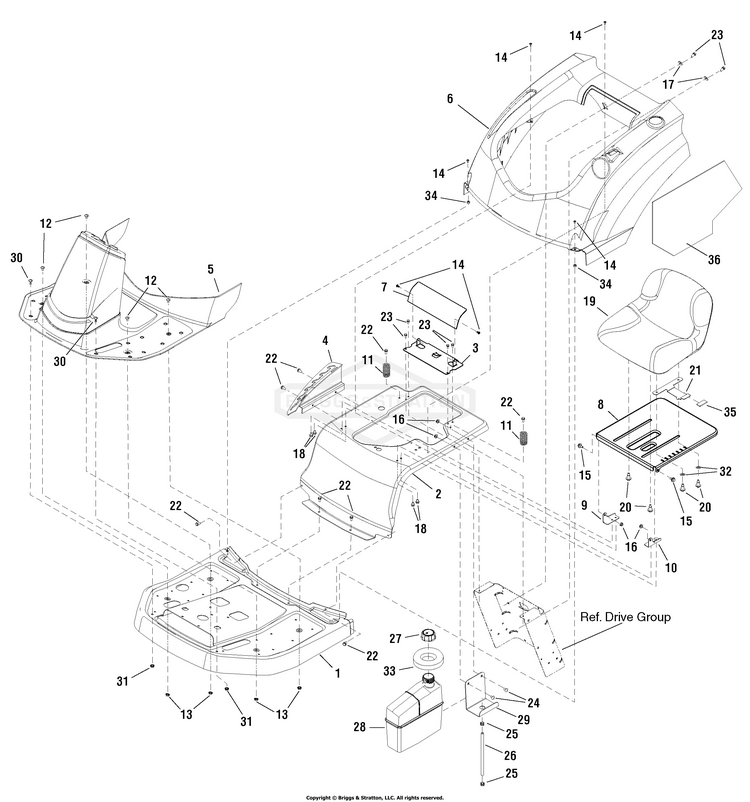

Seat, Body, Dash & Fuel Tank Group (885157)

...
...
1
FOOTREST BS-885003CYP
...
2
SEAT SUPPORT BS-885001AYP
...
3
COVER, Seat Support BS-885009AYP
...
4
DECK LIFT INDEX ASSY BS-885091AYP
...
5
FOOTREST, Plastic BS-885002YP
...
6
BODY, Plastic BS-885024YP
...
7
BATTERY COVER BS-885027YP
...
8
BRACKET, Seat BS-885010AYP
...
9
SEAT SUPPORT, Bracket RH BS-885060AYP
...
10
SEAT SUPPORT, Bracket LH BS-885061AYP
...
11
SPRING, Compression BS-164X30MA
...
12
BOLT BS-703159
...
13
NUT, 5/16-18, GR5 BS-703409
...
14
SCREW, Shoulder #10-24 BS-009X47MA
...
15
BOLT, Shoulder, 5/16-18 x 5/8 BS-009X56MA
...
16
NUT, HEX FLNG,5/16-18 BS-704067
...
17
WASHER, Flat, 3/4 BS-017X38MA
...
18
SCREW, 5/16-18 x 0.50 BS-026X49MA
...
19
SEAT BS-885172YP
...
20
BOLT, Shoulder, 5/16-18 x 1.50 BS-885108YP
...
21
LEVER, Seat Adjust BS-885100AYP
...
22
CAPSCREW, Hex Head, 5/16-18 x 3/4 BS-26X249MA
...
23
SCREW.25-20 S-T BS-26X263MA
...
24
BOLT BS-703159
...
25
CLAMP, Hose BS-791850
...
26
LINE, Fuel (Low Perm, Cut to Length) BS-791766
...
27
FUEL CAP BS-092317MA
...
28
TANK, Fuel 1.6 Gallon. BS-885006YP
...
29
BRACKET, Fuel Tank BS-885101AYP
...
30
BOLT, Carriage, 1/4-20 x 0.63 BS-002X39MA
...
31
NUT, HEX, KEPS,1/4-20 BS-703914
...
32
WASHER, Flat, .81 x .550 x 16GA BS-017X91MA
...
33
RING, Foam BS-1001963MA
...
34
NUT#10-24 MCLEANLOCK BS-015X81MA
...
35
COVER, Seat Adjustment Lever BS-885215YP
...
36
HEAT SHIELD (Used with Service Kit 885280 or After Serial No. 2013421413) BS-885278YP
