7800684 Murray - BT22675FC, 22" 6.75GT Brute Walk-Behind French Canadian Mower (2011)

Model: 7800684

Save Part Not Listed?
product name

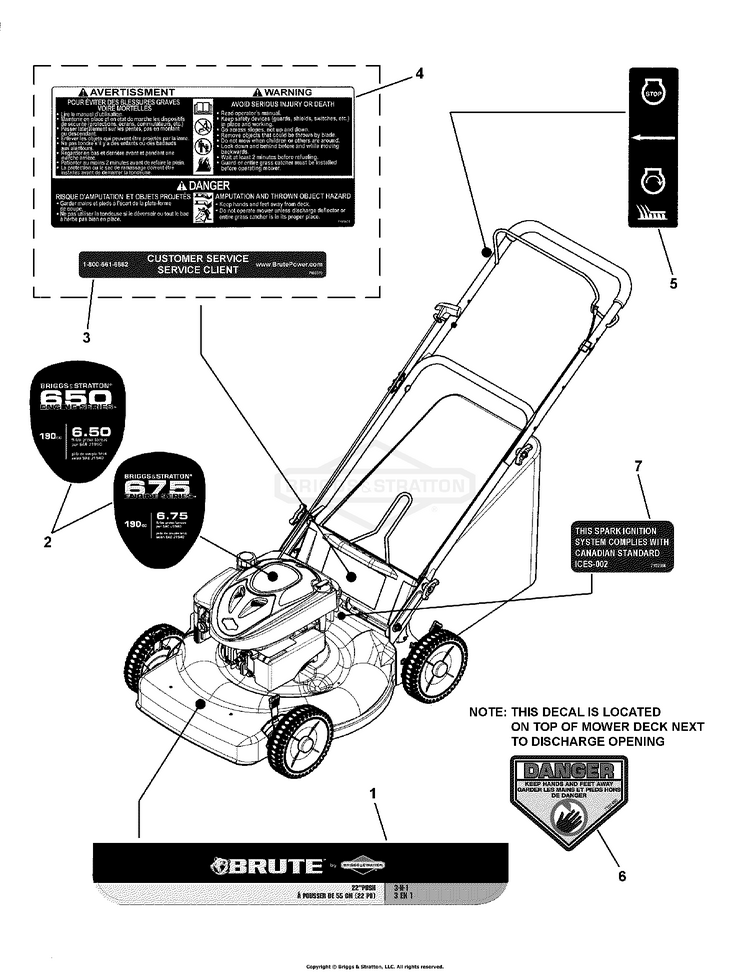

Decal Group

...
...
1
DECAL, Deck Front Brute 22" FC BS-7102042YP
...
2
DECAL, Engine, TP, Brute, 675, French Canadian BS-7102041YP
...
2
DECAL, Engine, TP, Brute, 675, French Canadian BS-7102039YP
...
3
DECAL, Customer Service, Brute, FC (not shown) BS-7102370YP
...
4
DECAL, French/English, Walk-Behind Safety BS-7101671YP
...
5
DECAL, OPC Bail, International Symbol BS-7029782MA
...
6
DECAL, CPSC, (Cut Finger) French/English BS-7101495YP
...
7
DECAL, ICES, Canadian Spark Compliance BS-7102996YP

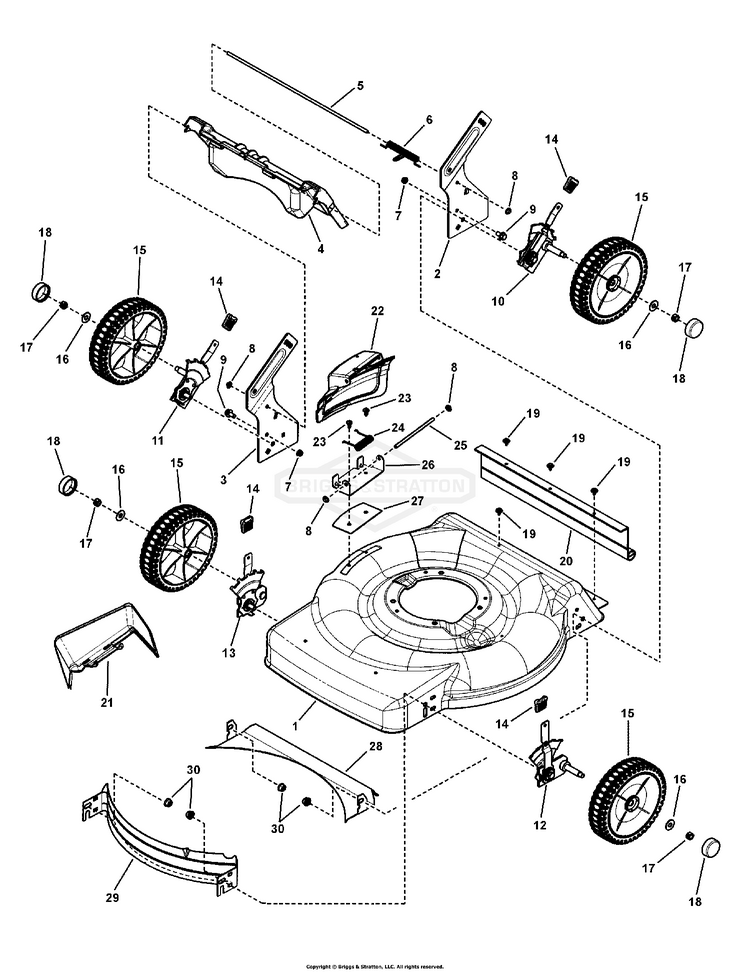

Deck Group

...
...
1
DECK, 22" WALK BS-7300401ZYP
...
2
BRACKET, Lower Handle, LH BS-7300668ZYP
...
3
BRACKET, Lower Handle, RH, BS-7300669ZYP
...
4
DOOR, Rear, 22" BS-7101243YP
...
5
ROD, Pivot, Rear Door (1/4"x17.5") BS-7101070YP
...
6
SPRING, Torsion, Rear Door, 22" Walk Mower BS-7101461YP
...
7
NUT, 5/16-18, GR5 BS-703409
...
8
PUSHNUT, CAP, 1/4 BS-704005
...
9
BOLT, 5/16-18X0.625 BS-703823
...
10
ASSY,HOC,LT,22 WBM BS-7501055YP
...
11
ASSY,HOC,RT,22 WBM BS-7501056YP
...
12
HOC ASSY, RF, 22 WBM BS-7501293YP
...
13
HOC ASSY, LF, 22 WBM BS-7501294YP
...
14
GRIP, HT LATCH, BLACK BS-7103793YP
...
14
GRIP, Height Latch, P-391-ST, Yellow BS-7103542YP
...
15
WHEEL, 8" x 2" Idle, w/Db Tread, Brute Yellow BS-7101712MA
...
16
WASHER, FLAT, .377X1 BS-703966
...
17
NUT, 3/8-16 BS-703347
...
18
HUBCAP, Round, Black BS-7101351MA
...
19
HWST, 10-24X.50 SEMS BS-7091286YP
...
20
GUARD, Rear, 22" Deck Mower BS-7103347YP
...
21
SIDE CHUTE, Plastic, Black BS-1101097MA
...
22
COVER, Mulch, Plastic, Black BS-1101098MA
...
23
SCREW, 1/4-20 X .550, T-30 Pan Head Torx, Self-Tapping, Zinc/Clear BS-703961
...
24
SPRING, Torsion, Chute BS-166X38MA
...
25
ROD, Chute Pivot - 1/4" dia. x 5.55" BS-7101067YP
...
26
BRACKET, Chute BS-7300855ZMA
...
27
PLATE, Mulch 22" RB Scotts BS-7300856ZMA
...
28
BAFFLE, REAR, 22 DEC BS-7300854DYP
...
29
BAFFLE, FRONT 22" BS-7300440BMYP
...
30
NUT, 3/8-16 BS-703333

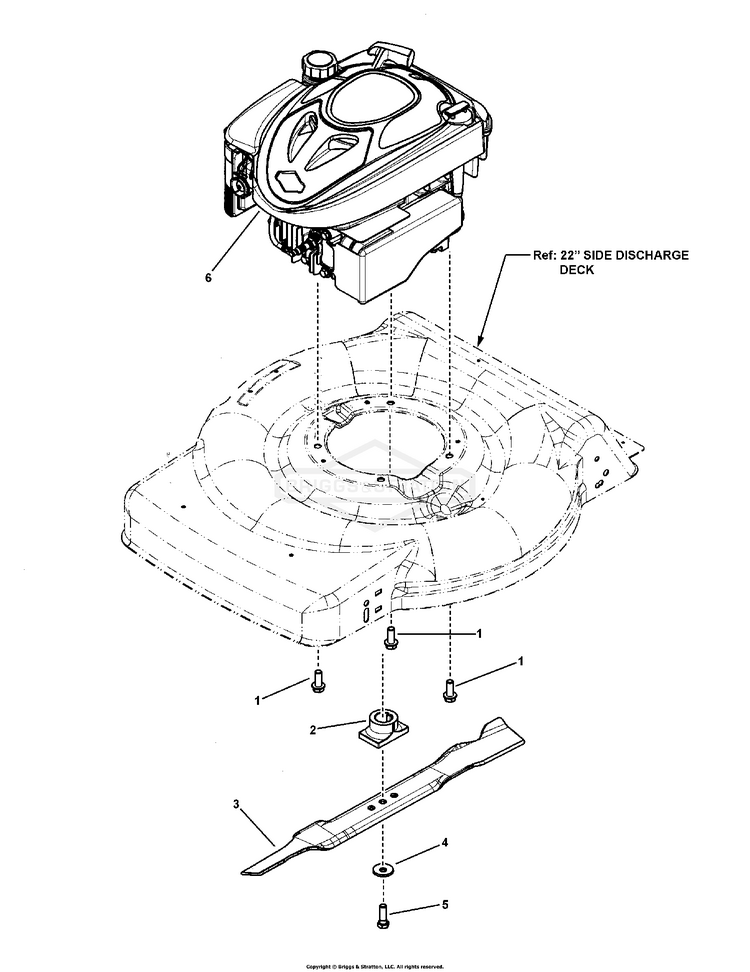

Engine & Blade Group

...
...
1
SCREW, Hex Washer Head, Self Tap, 3/8-16 x 1 BS-704000
...
2
HUB, Blade, 22" Push BS-7100862YP
...
3
BLADE, 22", WALK MWR BS-7100851AYP
...
4
WASHER, Belleville, .38" ID. x 1.183" OD. BS-1101989MA
...
5
SCREW, 3/8-24 x 1-1/4" Hex Head Cap, GR 5 BS-7090824YP
...
6
* ENGINE, B&S, 650 Ser, X-Spec, B1, FC BS-124T02-0301-B1
...
6
* ENGINE, B&S, 675 Ser, X-Spec, B1, FC BS-126T02-0177-B1
...
--
* CAP, Fuel Assembly (Fresh Start - Yellow B&S Logo) (Not Shown) BS-792327
...
--
SCREW, Hex Washer Head BS-691138

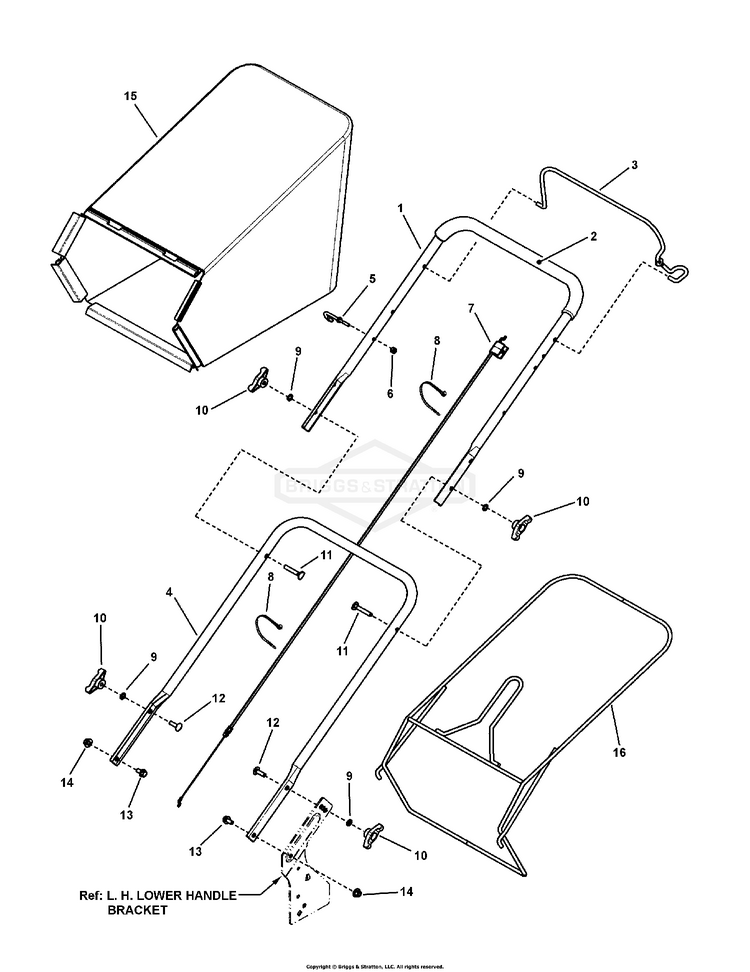

Handles & Controls

...
...
1
HANDLE, Upper BS-7300705AMA
...
2
FOAM GRIP, 18.75" (on upper handle) BS-7023810YP
...
3
BAIL, OPC Push BS-7101675AYP
...
4
HANDLE, Lower BS-7301013AYP
...
5
ROPE GUIDE-UPPER BS-071530MA
...
6
NUT, 1/4-20, NYLOCK BS-703232
...
7
CABLE, Bail (48.38" overall length) BS-7103030YP
...
8
WIRE TIE, 11" Std Black Nylon BS-7024649YP
...
9
WASHER, 5/16 BS-703587
...
10
WINGKNOB, 5/16-18 BS-703065
...
11
BOLT, 5/16-18X2 BS-703059
...
12
BOLT, 5/16-18 X 1", C BS-5025145X8SM
...
13
BOLT, 5/16-18X0.625 BS-703823
...
14
NUT, 5/16-18 BS-704001
...
15
GRASS BAG, 22" Rear Discharge BS-7102573YP
...
16
FRAME, Bag, 22" WBM BS-7101230AYP
