7800643 Murray - LP7800643 Murray - JS46FC, 22" 8.75GT Deere Self-Propelled FWD Mower (2010)

Model: 7800643

Back To Assemblies

Save Part Not Listed?
product name

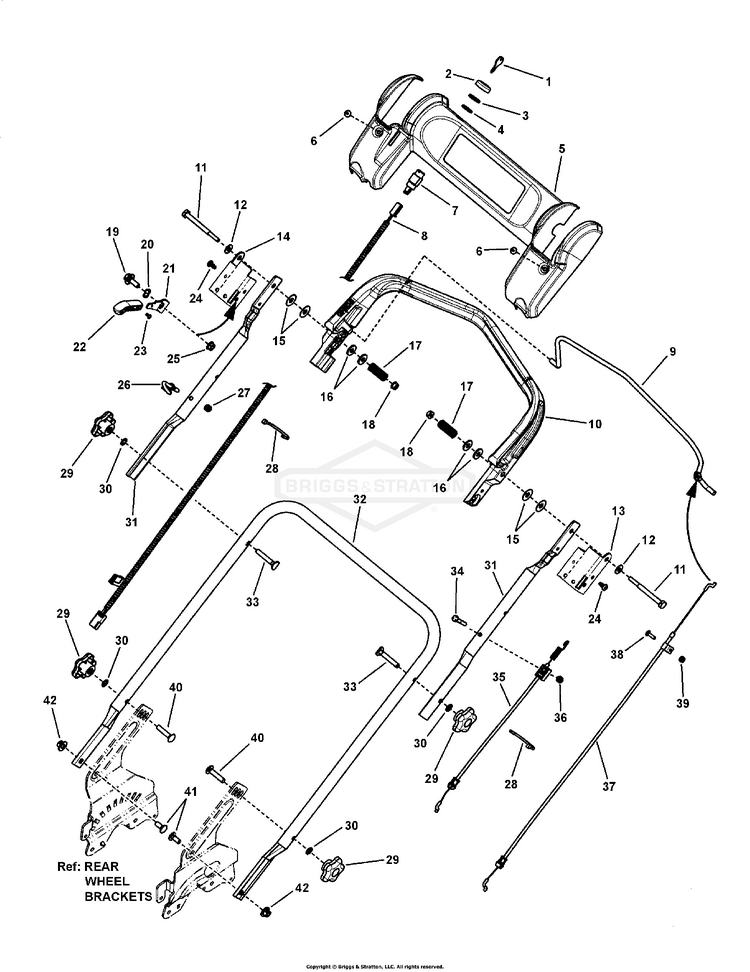

Group, Handle Control, ES, Deere FC

...
...
1
IGN KEY, PR BS-7011138YP
...
2
BEZEL BS-7023506SM
...
3
NUT, PLASTIC, 5/8-32 BS-7104149YP
...
4
SPACER, .65 X .88 X .10 BS-7016132SM
...
5
PANEL, UPPER HANDLE, DEERE BS-7101240YP
...
6
RIVET, POP, .250D .6L AL,STL STEM-BLACK BS-1960382YP
...
7
SWITCH, Key BS-690646
...
8
HARNESS, WIRING, EL START BS-7103676YP
...
9
BAIL, PIVOTING HANDLE - 21" JD WBM BS-7101322AYP
...
10
HANDLE, PIVOTING - DEERE WALK BS-7101239YP
...
11
BOLT, SHOULDER, 5/16 X 2.500, YZ BS-7900045YP
...
12
SHIM WASHER, 5/16 I.D. BS-7015686SM
...
13
BRACKET, LH Rotation Limit BS-7301187AYP
...
14
BRACKET, RH Rotation Limit BS-7301186AYP
...
15
WASHER, FLAT, .377X1 BS-703966
...
16
FW, YZ BS-7900022YP
...
17
SPRING, COMPRESSION BS-7101802YP
...
18
NUT BS-5025391FS
...
19
IDLER PIVOT BOLT (5/16-18 thread) BS-1716654SM
...
20
WASHER, .531 X .781 3-WAVE BS-7026257MA
...
21
HANDLE, LOCK BS-7300526BMYP
...
22
THROTTLE CONTROL LEVER BS-7023655YP
...
23
RIVET, PLASTIC SNAP BS-7071921YP
...
24
SCREW, 1/4-20 X .550, T-30 Pan Head Torx, Self-Tapping, Zinc/Clear BS-703961
...
25
NUT, 5/16-18, GR5 BS-703409
...
26
GUIDE, ROPE (1/4-20 thread) BS-7028488MA
...
27
NUT, 1/4-20, NYLOCK BS-703232
...
28
WIRE TIE, 11 INCH STD BLK NYLON BS-7024649YP
...
29
KNOB,HANDLE,5 PRONG BS-7105085YP
...
30
WASHER, 5/16 BS-703587
...
31
HANDLE, UPPER, STRAIGHT, EASY LINE BS-7300435AYP
...
32
HANDLE, Lower BS-7301182AYP
...
33
BOLT, 5/16-18X2 BS-703059
...
34
SCREW BS-703588
...
35
CABLE, DRIVE, VS, RWD, JD BS-7103354YP
...
36
NUT, 1/4-20 BS-703251
...
37
* CABLE, Zone Control w/Cap, 54.91" Long BS-7105033YP
...
38
FHSNB, YZ BS-7900056YP
...
39
NUT, NYLOCK, 10-24 BS-703412
...
40
BOLT, 5/16-18X1.5 BS-703296
...
41
BOLT, Round Head, Short Square Neck BS-703185
...
42
NUT, 5/16-18 BS-704001
