7800575 Murray - LP7800575 Murray - JS36, 22" John Deere RWD Walk Mower (2010)

Model: 7800575

Save Part Not Listed?
product name

Group, Decal, Deere JS36

...
...
1
DECAL, JS36 MOWMENTUM BS-7103894YP
...
2
DECAL, NEUTRAL LOCK BS-7101547YP
...
3
DECAL-DANGER, CUT FIN BS-7013010SM
...
4
DECAL, CUSTOMER SERVICE, MY08, DEERE BS-7101546YP
...
5
DECAL, OPERATION, JD BS-7101737YP
...
6
DECAL, WARNING, REAR DISCHARGE DOOR BS-7101394YP
...
--
KIT, 22" GRASS CATCHER (Includes Ref. Nos. 7 & 8) BS-7600107YP
...
7
BAG FRAME, RD BS-7103305AYP
...
8
BAG, GRASS, 22" REAR DISCHARGE BS-7103375YP

Group, Deck, RWD, Non ES, Deere

...
...
1
DECK, 22", RWD, NON ES BS-7301082FYP
...
2
SCREW, 4.8X1.59X13 BS-703834
...
3
COVER, BELT DRIVE, REAR BS-7103294YP
...
4
COVER, MULCHING BS-7103298YP
...
5
PUSHNUT, CAP, 1/4 BS-704005
...
6
ROD, PIVOT BS-7101067YP
...
7
SCREW, 1/4-20 X .550, T-30 Pan Head Torx, Self-Tapping, Zinc/Clear BS-703961
...
8
BRACKET, CHUTE BS-7300855FYP
...
9
SPRING, TORSION, CHUTE BS-166X38MA
...
10
HFLB, 5/16C X1 GR5 YZ BS-7091591SM
...
11
BOLT, DRAG SHIELD, 1/4 - 20 X 1.5 BS-7900073YP
...
12
BRKT, REAR WHEEL, LH, QUICK ADJUST BS-7300885AYP
...
13
BRKT, REAR WHEEL, RH, QUICK ADJUST BS-7300915AYP
...
14
NUT, 5/16-18, GR5 BS-703409
...
15
CHUTE, SIDE DISCHARGE, WBM, 22" BS-7103299YP
...
16
SPRING, TORSION, REAR DOOR BS-7103309YP
...
17
ASSEMBLY, Door, 22" WBM BS-7501541YP
...
18
ROD, PIVOT, REAR DOOR BS-7103322YP
...
19
SCREW, 1/4-20X0.625 BS-703054
...
20
HINGE, REAR DISCHARGE DOOR BS-7103292YP
...
21
NUT, 1/4-20, GR5 BS-703233
...
22
GUARD, REAR 22" BS-7103323YP
...
23
PLUG, MULCHING, 22" DECK BS-7103453YP
...
24
HWFST, 10C X 5/8 BS-7091075SM
...
25
NUT, RETAINER SPEED #10C W/EXT BS-1960593SM
...
26
CAPSCREW-HEX WSHR HD BS-1935450SM
...
27
NUT, 1/4 TINNERMAN BS-7041033YP
...
28
REAR, BAFFLE REAR WHEEL DRIVE WBM BS-7103293YP
...
29
BAFFLE, FRONT BS-7301020YP

Group, Engine, 700 Series Quantum, Deere

...
...
1
ENGINE, 700 SERIES QUANTUM, DEERE BS-128T02-0114-B1
...
2
COVER-BLOWER HOUSING BS-591706
...
3
SCREW, PAN HEAD THREAD ROLLING BS-698589
...
4
SCREW, PAN HD CROSS RECESS, TAPPING BS-691138
...
5
BELT GUIDE, ENGINE, FWD BS-7103517YP
...
6
HWST, 3/8-16 X 1.25 BS-7900072YP
...
7
KEY, #HP-506 HI-PRO BS-7091214YP
...
8
PULLEY, ENGINE BS-7100437YP
...
9
HRSS 5/16-18X1/2 BS-7092086YP
...
10
HUB, BLADE, 21" WBM, RD, 2 POSITION BS-7101414YP
...
11
BLADE, WAVE, STEEL DECK BS-7103288YP
...
12
WASHER, CONE BS-703963
...
13
HHCS, 3/8F X2 GR5 BS-7090167SM

Group, Handle Control, Deere

...
...
1
HANDLE, PIVOTING - DEERE WALK BS-7101239YP
...
2
BAIL, PIVOTING HANDLE - 21" JD WBM BS-7101322AYP
...
3
PANEL, UPPER HANDLE, DEERE BS-7101240YP
...
4
RIVET, POP.250D .6L AL, STL STEM-BLACK BS-1960382YP
...
5
BOLT, SHOULDER, 5/16 X 2.500, YZ BS-7900045YP
...
6
SHIM WASHER, 5/16 I.D. BS-7015686SM
...
7
SCREW, 1/4-20 X .550, T-30 Pan Head Torx, Self-Tapping, Zinc/Clear BS-703961
...
8
BRACKET, LH Rotation Limit BS-7301187AYP
...
9
BRACKET, RH Rotation Limit BS-7301186AYP
...
10
IDLER PIVOT BOLT BS-1716654SM
...
11
WASHER, .531 X .781 3-WAVE BS-7026257MA
...
12
HANDLE, LOCK BS-7300526BMYP
...
13
THROTTLE CONTROL LEVER BS-7023655YP
...
14
RIVET, PLASTIC SNAP BS-7071921YP
...
15
NUT, 5/16-18, GR5 BS-703409
...
16
HANDLE, UPPER, STRAIGHT, EASY LINE BS-7300435AYP
...
17
WASHER, FLAT, .377X1 BS-703966
...
18
NUT BS-5025391FS
...
19
SPRING, COMPRESSION BS-7101802YP
...
20
FW, YZ BS-7900022YP
...
21
WIRE TIE,11 INCH STD BLK NYLON BS-7024649YP
...
22
* CABLE, Zone Control w/Cap, 54.91" Long BS-7105033YP
...
23
FHSNB, YZ BS-7900056YP
...
24
NUT, NYLOCK, 10-24 BS-703412
...
25
NUT, 1/4-20 BS-703251
...
26
CABLE, DRIVE, VS, RWD, JD BS-7103354YP
...
27
SCREW BS-703588
...
28
HANDLE, Lower BS-7301182AYP
...
29
GUIDE, ROPE BS-7028488MA
...
30
NUT, 1/4-20, NYLOCK BS-703232
...
31
KNOB,HANDLE,5 PRONG BS-7105085YP
...
32
WASHER, 5/16 BS-703587
...
33
BOLT, 5/16-18X2 BS-703059
...
34
BOLT, 5/16-18X1.5 BS-703296
...
35
BOLT, Round Head, Short Square Neck BS-703185
...
36
NUT, 5/16-18 BS-704001

Group, Transmission, RWD

...
...
1
TRANSMISSION, VS, RWD BS-7105127YP
...
2
PULLEY, TRANS VAR SPD LC WBM BS-7100240YP
...
3
NUT, 3/8-16 BS-703347
...
4
BELT, 3L, TRACTION DRIVE, 22" WBM, RWD BS-7103364YP
...
5
BELT GUIDE, TRANSMISSION BS-7100863YP
...
6
PHST, #10-16 X 3/4, COMBO BS-7091195SM

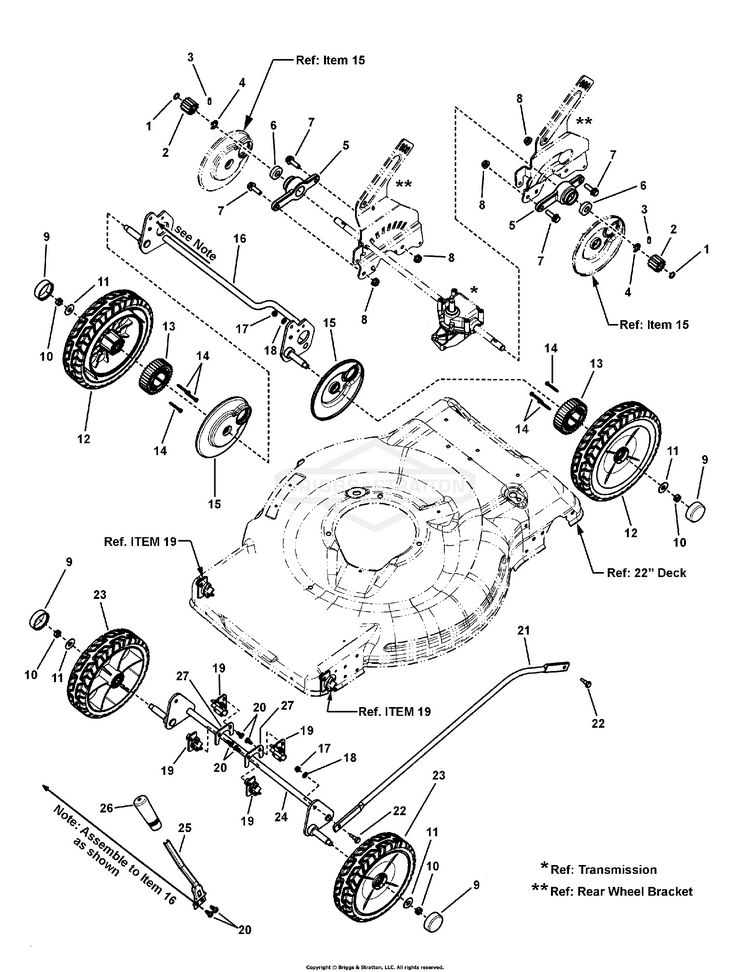

Group, Wheels, RWD, Single Point HOC

...
...
1
RETAINING RING BS-7027999YP
...
2
GEAR, PINION BS-7100820YP
...
3
PIN, AXLE BS-7100861YP
...
4
RETAINER, RING, 1/2 BS-703976
...
5
HOLDER, BEARING, RWD BS-7103290YP
...
6
BEARING, BALL, AXLE BS-7078243YP
...
7
HFLB, 5/16C X1 GR5 YZ BS-7091591SM
...
8
NUT, 5/16-18, GR5 BS-703409
...
9
HUBCAP, ROUND, JD YELLOW BS-7101391YP
...
10
NUT, 3/18-16, GR2 BS-703230
...
11
WASHER, FLAT, .377X1 BS-703966
...
12
ASSY, WHEEL, W/BEARING 9" JD TRD, JD YELLOW (Includes Ref. No. 28) BS-7500646YP
...
13
GEAR, EXTERNAL WHEEL BS-7100914YP
...
14
HWST, #8 X 1-1/4, HI-LO BS-7091196SM
...
15
SHIELD, DUST, 21" WBM, RD BS-7101367YP
...
16
WELDMENT, REAR CROSSBAR, RWD BS-7400259YP
...
17
NUT, NYLOCK, 10-24 BS-703412
...
18
FLW, .219 X .500 X .049 BL BS-7091552SM
...
19
BUSHING, BEARING, RWD BS-7103314YP
...
20
SCREW, 1/4-20 X .550, T-30 Pan Head Torx, Self-Tapping, Zinc/Clear BS-703961
...
21
ROD, LIFTER LINK, WBM BS-7103306FYP
...
22
BOLT, SHOULDER, 1/4 X .375, YZ BS-7101774YP
...
23
ASSY, WHEEL, 8X2 IDLE, JD TRD, BB, JD YELLOW (Includes Ref. No. 28) BS-7500544YP
...
24
WELDMENT, Front Axle BS-7400306YP
...
25
LEVER, SPRING, HOC BS-7103289YP
...
26
GRIP, HOC JD YELLOW BS-7103806YP
...
27
PLATE, SUPPORT, FRONT BUSHING BS-7301154YP
...
28
BALL BEARING, .50 ID (Not Illustrated) BS-071579MA
