7800569 Murray - RT24460, 24HP 46" Hydro Drive Manual PTO Rover Lawn Tractor (2009)

Model: 7800569

Back To Assemblies

Save Part Not Listed?
product name

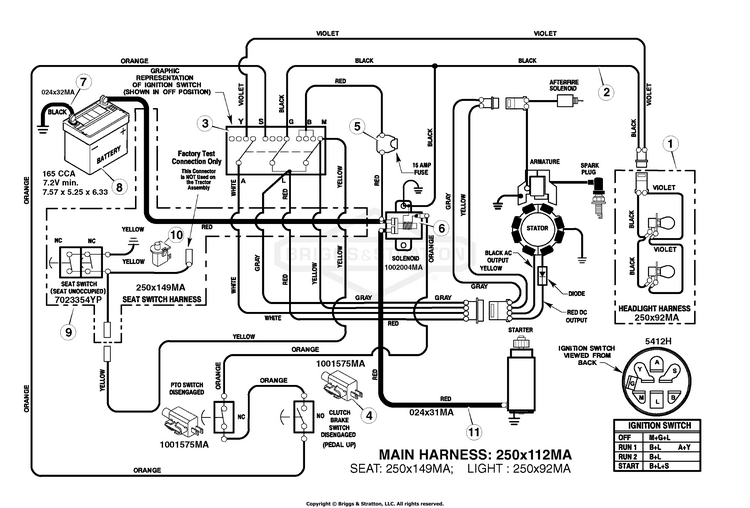

Electrical System - Main Harness 250X112MA

...
...
1
HARNESS, Headlight BS-250X92MA
...
2
HARNESS, Chassis Wire BS-250X112MA
...
3
7 TERMINAL SWITCH BS-5412K
...
--
NUT BS-703127
...
4
SWITCH, No Limit, Snap-In BS-1001575MA
...
--
WASHER BS-5025169FS
...
5
FUSE BS-302031MA
...
6
SOLENOID BS-7701100MA
...
7
CABLE, Battery Ground BS-024X32MA
...
--
WASHER BS-703332
...
8
BATTERY,12V BS-1685215SM
...
--
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
--
BOOT, POSITIVE TERMIN BS-690604MA
...
9
WIRING HARNESS, Seat Switch BS-250X149MA
...
11
CABLE, Battery BS-024X31MA
...
--
SWITCH, SEAT BS-7023354YP
...
--
NUT, SPECIAL, 5/8-32 BS-703995
...
--
CAP, Electric Start BS-7100330YP
...
--
SCREW, 1/4-14 x 3/8 BS-26X229MA
...
--
SET, Washer/Nut BS-847144
...
--
NUT, 1/4-20, NYLOCK BS-703232
...
--
CAP, Switch BS-847150
...
--
IGNITION SWITCH BS-1686734SM
...
--
KEY-IGNITION INDAK BS-1717163SM
