7800569 Murray - RT24460, 24HP 46" Hydro Drive Manual PTO Rover Lawn Tractor (2009)

Model: 7800569

Back To Assemblies

Save Part Not Listed?
product name

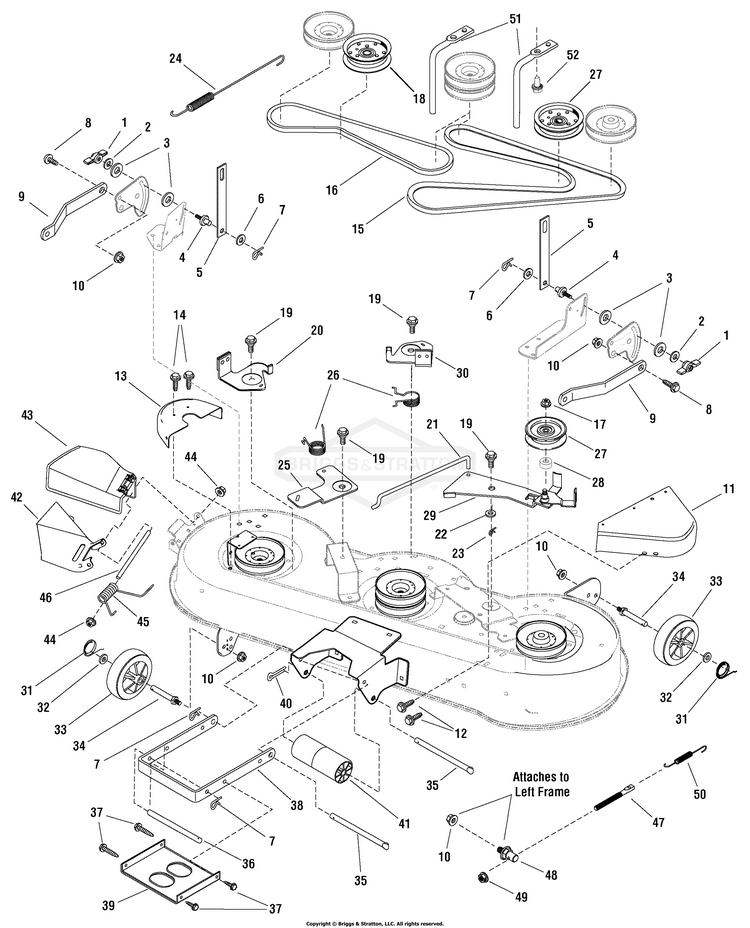

46" Mower Deck - Clutch & Support

...
...
1
WINGKNOB, 5/16-18 BS-703065
...
2
WASHER,FLAT .33 1. 16 BS-017X45MA
...
3
FRICTION PAD BS-094137MA
...
4
PIN, Hanger 3/8-16 x 1-1/4 BS-095194MA
...
5
LIFT LINK (LT) BS-690212E701MA
...
6
WASHER, Flat 1 BS-17X103MA
...
7
PIN, 3/32 X 1.6 BS-703300
...
8
BOLT, Shoulder 3/8-16 x 1 BS-009X52MA
...
9
BRKT, REAR SUSPENSION BS-7300826BMYP
...
10
NUT, CNTR LCK, 3/8-16 BS-703893
...
11
COVER, Left Pulley BS-7300773BMYP
...
12
SCREW, 5/16-18 x 1/2 BS-26X277MA
...
13
COVER, PULLEY, RH BS-7300857BMYP
...
14
SCREW,HEX, #10-24X.5 BS-704060
...
15
Belt, Primary BS-037X89MA
...
16
BELT, Secondary, 46 in BS-037X66MA
...
17
NUT, CNTR LCK, 3/8-16 BS-703893
...
18
PULLEY, IDLER BS-091801MA
...
19
BOLT, 3/8-16 X .925 BS-704206
...
20
BRAKE ASSEMBLY, Center BS-7500566BMYP
...
21
LINK, Bellcrank BS-094606ZMA
...
22
WASHER, FLAT 5/16 BS-704015
...
23
PIN, COTTER, 3/32X.75 BS-703312
...
24
SPRING BS-165X120MA
...
25
BELLCRANK BS-094603E701MA
...
26
SPRING, Torsion Brake BS-166X41MA
...
27
PULLEY, Idler, Left BS-690387MA
...
28
SPACER, 1/2" TO 17mm BS-690369MA
...
29
IDLER ARM, 46 in, Left BS-7400227BMYP
...
30
BRAKE ASSEMBLY, Left BS-7500565BMYP
...
31
CLIP, Hair Pin BS-031X11MA
...
32
WASHER, Flat, 7/8 BS-017X91MA
...
33
WHEEL GAGE BS-092683MA
...
34
BOLT, Gauge Wheel BS-094025MA
...
35
ROD, Deck Suspension BS-094996MA
...
36
ROD, Hanger BS-094158ZMA
...
37
CAPSCREW, 5/16-18 BS-26X249MA
...
38
BRACKET, Front Suspension BS-7300767BMYP
...
39
STIFFNER BS-7300871BMYP
...
40
COTTER PIN BS-030X49MA
...
41
ROLLER BS-1001252MA
...
42
DEFLECTOR, Inside BS-7300858BMYP
...
43
DEFLECTOR, Chute BS-092100MA
...
44
PUSHNUT, 3/8 BS-703948
...
45
SPRING, Torsion BS-166X34MA
...
46
ROD, Deflector BS-092159ZMA
...
47
STUD, Spring Mounting BS-094042ZMA
...
48
STUD, Swivel (3/8-16 thread) BS-690182MA
...
49
NUT, HEX FLNG,5/16-18 BS-704067
...
50
Spring, Extension BS-165X133MA
...
51
Guide, Belt BS-091797ZMA
...
52
SCREW, 3/8-16X.75 BS-703950
