7800494 Murray - 465624x108A, 46" Rover Lawn Tractor (2009)

Model: 7800494

Back To Assemblies

Save Part Not Listed?
product name

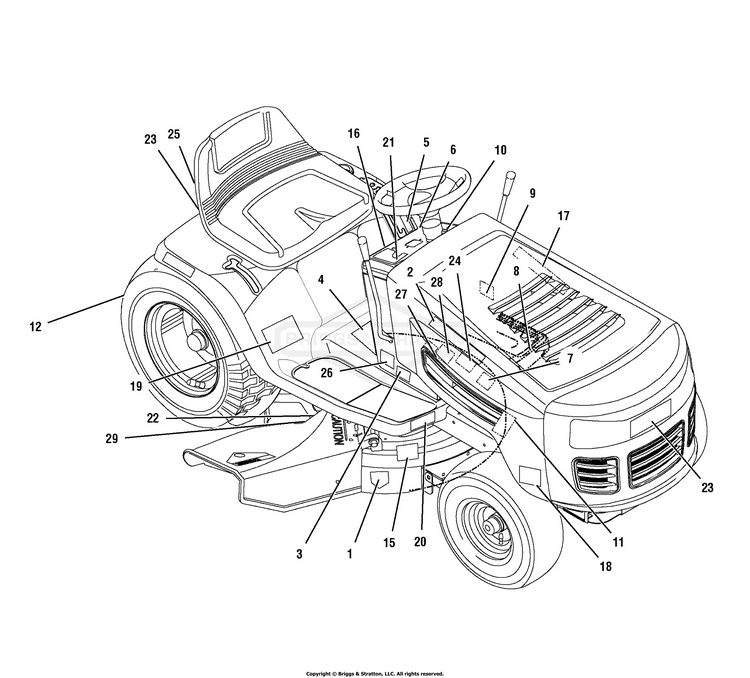

Decals

...
...
1
DECAL, Cut Finger Symbols BS-48X4033MA
...
2
DECAL, Rover Clipper R.H. BS-7102128YP
...
3
DECAL, Cutting Height BS-44X7535MA
...
4
DECAL, Warning Export BS-44X7325MA
...
5
DECAL, 7 Position Cut Height BS-44X8039MA
...
6
DECAL, Deck Level BS-44X7027MA
...
7
DECAL, No Step Export BS-48X5725MA
...
8
DECAL, Brake/Clutch Export BS-44X6668MA
...
9
DECAL, B&S Logo BS-44X6277MA
...
10
DECAL, 5 Speed BS-44X6941MA
...
11
DECAL, Heat Shield Warning BS-48X6007MA
...
12
DECAL, Warning Load Limit Export BS-48X511MA
...
15
DECAL, 100db Export BS-48X5911MA
...
16
DECAL, Gas Gauge BS-44X6595MA
...
17
DECAL, Rover Clipper L.H. BS-7102127YP
...
18
DECAL, 20.0/46 R.H. & L.H BS-7102808YP
...
19
DECAL, Rover 20.0/46 Box Autodrive BS-7102809YP
...
20
DECAL, Hydro Drive BS-44X6675MA
...
21
DECAL, Ignition Switch BS-48X5695MA
...
22
DECAL, No Step Chute BS-48X5710MA
...
23
DECAL, Rover BS-48X6005MA
...
24
DECAL, 3 Way Deck BS-48X630MA
...
25
DECAL, Hydro Release BS-48X5624MA
...
26
DECAL, Engage, PTO BS-48X5713MA
...
27
DECAL, Gage, Wheel Leveling BS-44X7228MA
...
28
DECAL, Gage, Wheel Instruction BS-7102215YP
...
29
DECAL, DANGER BS-7101665YP
