7800322 Murray - BTD2250FC, 22" 5GT Brute Walk-Behind Mower (2008)

Model: 7800322

Save Part Not Listed?
product name

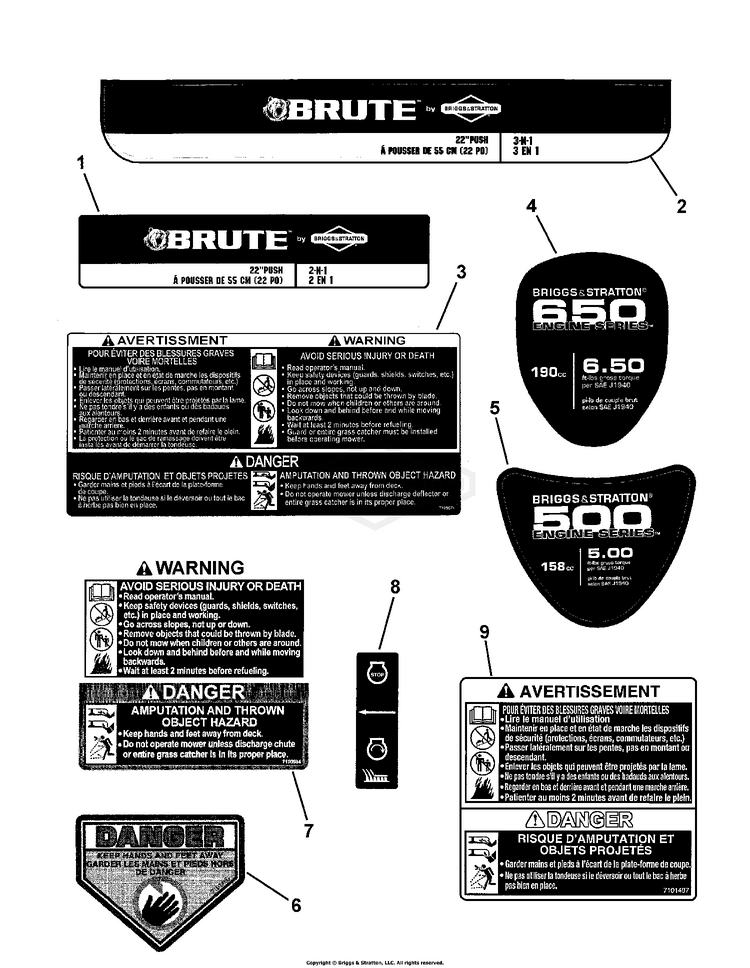

Decals

...
...
1
DECAL, Brute Logo, Deck, FC BS-7102071YP
...
2
DECAL, Deck Front Brute 22" FC BS-7102042YP
...
3
DECAL, French/English, Walk-Behind Safety BS-7101671YP
...
4
DECAL, Engine, TP, Brute 650 FC BS-7102041YP
...
5
DECAL, Engine, Brute, TP, 500, FC BS-7102070YP
...
6
DECAL, CPSC, French/English BS-7101495YP
...
7
DECAL, Warning/Danger Walk-Behind Mower BS-7100984YP
...
8
DECAL, OPC Bail, International Symbol BS-7029782MA
...
9
DECAL, Warning/Danger, French/English BS-7101497YP
...
10
DECAL, Customer Service, Brute, FC (not shown) BS-7102370YP

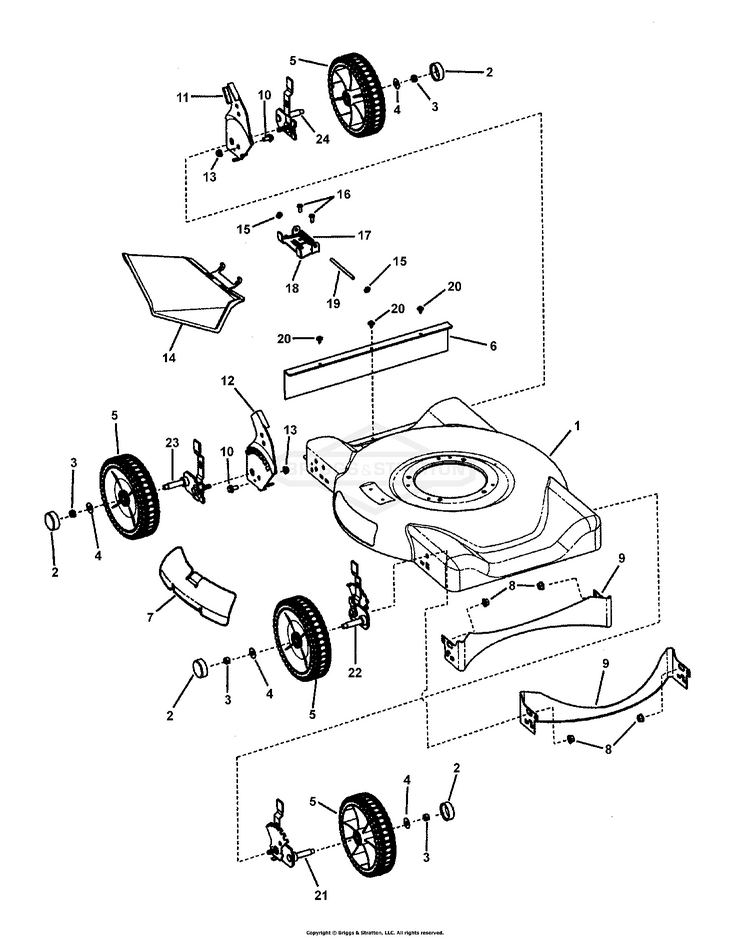

Deck Assembly - BTD2250FC

...
...
1
DECK, 22" WBM, Side Discharge BS-7300691ZYP
...
2
HUBCAP, Round, Black BS-7101351MA
...
3
NUT, 3/8-16 BS-703347
...
4
WASHER, FLAT, .377X1 BS-703966
...
5
ASSY, Wheel, 8" x 2" Idle, w/Db Tread, Brute Yellow BS-7101712MA
...
6
GUARD, Rear BS-672738MA
...
7
PLATE, Mulch BS-672422ZMA
...
8
NUT, 3/8-16 BS-703333
...
9
BAFFLE, 22" Side Discharge BS-7300853ZYP
...
10
BOLT, 5/16-18X0.625 BS-703823
...
11
BRACKET, Lower Handle, LH Low Cost BS-7300851ZYP
...
12
BRACKET, Lower Handle, RH Low Cost BS-7300850ZYP
...
13
NUT, 5/16-18, GR5 BS-703409
...
14
CHUTE, Plastic S/D BS-672421MA
...
15
PUSHNUT, CAP, 1/4 BS-704005
...
16
SCREW, 1/4-20 X .550, T-30 Pan Head Torx, Self-Tapping, Zinc/Clear BS-703961
...
17
SPRING, Torsion, Chute BS-0166X5MA
...
18
BRACKET, Chute Low Cost BS-7300852ZYP
...
19
ROD, Pivot, Mulch Cover BS-215X11ZMA
...
20
HWST, 10-24X.50 SEMS BS-7091286YP
...
21
ASSY, HOC, Left Front, 7 Position BS-7501064YP
...
22
ASSY, HOC, Right Front, 7 Position BS-7501063YP
...
23
ASSY, HOC, Right Rear, 7 Position BS-7501059YP
...
24
ASSY, HOC, Left Rear, 7 Position BS-7501060YP

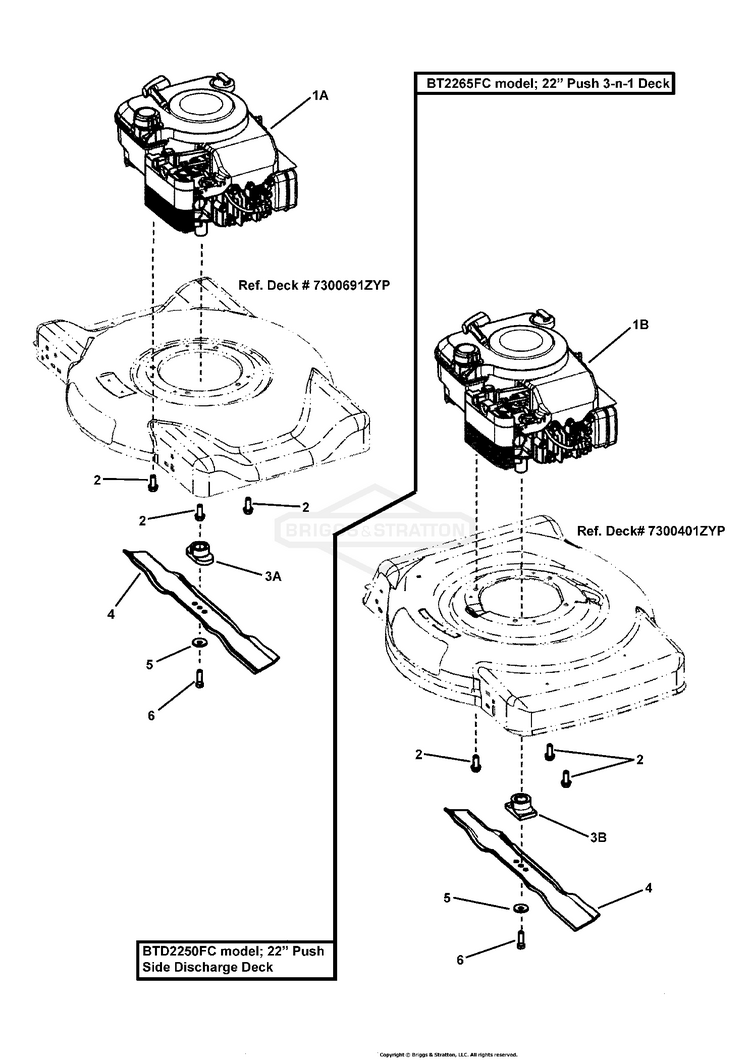

Engine and Blade Assembly

...
...
2
SCREW, Hex Washer Head, Self Tap, 3/8-16 x 1 BS-704000
...
3A
HUB, Blade, 22" Push used on BTD2250FC BS-1101825MA
...
3B
HUB, Blade, 22" Push used on BT2265FC BS-7100862YP
...
4
BLADE, 22", WALK MWR BS-7100851AYP
...
5
WASHER, Bellville, .38" ID x 1.183 OD BS-1101989MA
...
6
SCREW, 3/8-24 x 1-1/4" Hex Head Cap, GR 5 BS-7090824YP

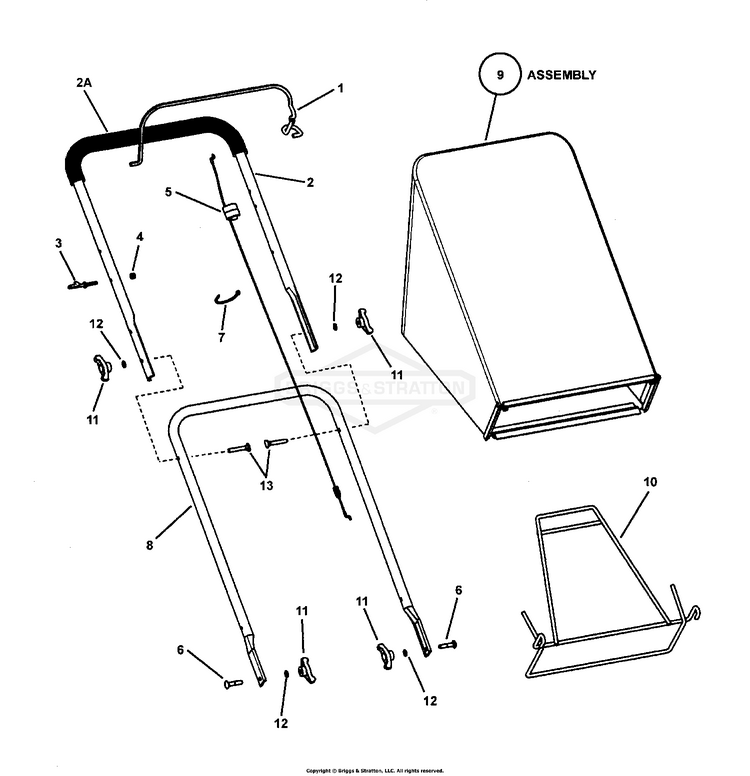

Handles and Controls

...
...
1
BAIL, OPC Push BS-7101675AYP
...
2
HANDLE, Upper BS-7300705AMA
...
2A
FOAM GRIP, 18.75" used on BT2265FC BS-7023810YP
...
3
ROPE GUIDE-UPPER BS-071530MA
...
4
NUT, 1/4-20, NYLOCK BS-703232
...
5
CABLE, Bail (45.00" overall length) used on BTD2250FC BS-7101808YP
...
5
CABLE, Bail (41.50" overall length) used on BT2265FC BS-7101330YP
...
6
BOLT, 5/16-18X1.5 BS-703296
...
7
WIRE TIE, 11 Inch Std Black Nylon BS-7024649YP
...
8
HANDLE, Lower BS-7300706AMA
...
9
ASSY, Grass Bag, Cloth- includes next item below BS-7101893MA
...
--
BAG, Cloth, Grass Bag BS-1101005MA
...
10
WELDMENT, Grass Bag Frame BS-1101074MA
...
11
WINGKNOB, 5/16-18 BS-703065
...
12
WASHER, 5/16 BS-703587
...
13
BOLT, 5/16-18X2 BS-703059
