7800303 Murray - 425621x108C/D, Lawn Tractor Rover (2008)

Model: 7800303

Back To Assemblies

Save Part Not Listed?
product name

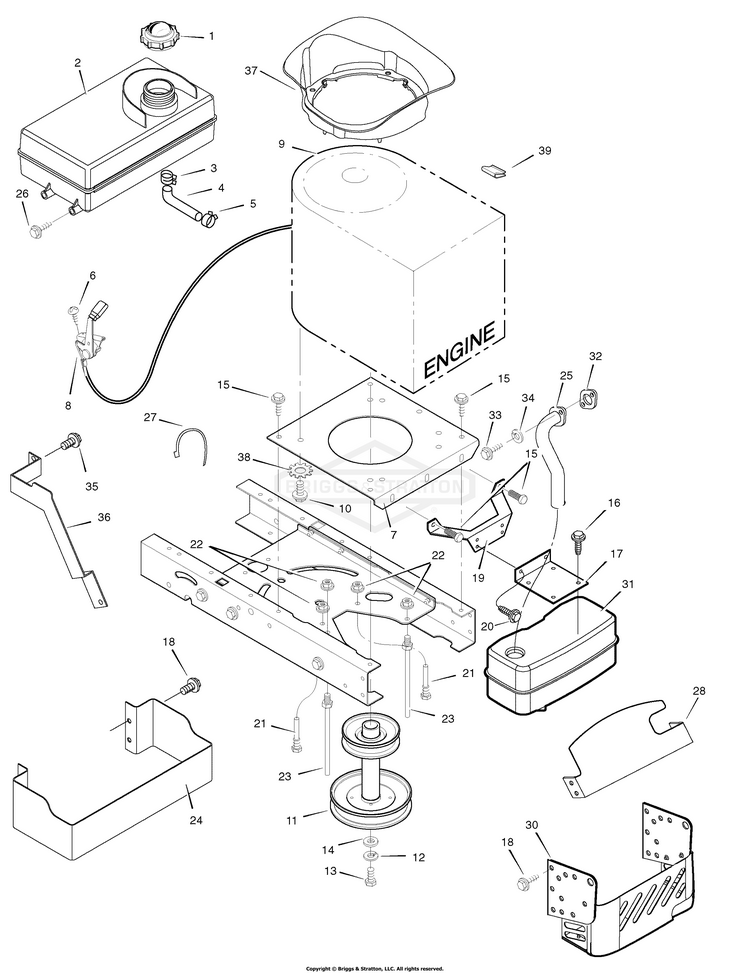

Engine Mount - Front Muffler Heat Shield

...
...
1
FUEL CAP (Included with Ref. No. 2) BS-092317MA
...
2
TANK, Fuel 1.4 Gal. BS-7601092MA
...
3
CLAMP, Hose BS-791850
...
4
Fuel Line (Must cut to length) BS-7601033MA
...
5
CLAMP, Hose BS-791850
...
6
SCREW BS-26X201MA
...
7
PLATE, Engine BS-094006E701MA
...
8
THROTTLE CONTROL BS-092371MA
...
10
SCREW-HEX WSHR HD TAP BS-2828635SM
...
11
STK PULLEY 38-42 IN R BS-690439MA
...
12
LOCKWASHER BS-019X35MA
...
13
BOLT, Hex BS-01X140MA
...
14
WASHER.46.97.25 FLAT BS-17X170MA
...
15
SCREW BS-26X249MA
...
16
SCREW BS-26X229MA
...
17
BRACKET, Muffler BS-690538E701MA
...
18
SCREW BS-26X277MA
...
19
BRKT - MUFF MTG HP BS-690537E701MA
...
20
SCREW BS-26X213MA
...
21
GUIDE, Belt BS-094384MA
...
22
NUT, 5/16-18, GR5 BS-703409
...
23
GUIDE, Belt BS-094066MA
...
24
GUARD-HEAT SHIELD-BLK BS-1001620E701MA
...
25
EXHAUST TUBE, Single BS-1001496MA
...
26
SCREW BS-26X253MA
...
27
STRAP, Tie BS-032618MA
...
28
GUARD, Heat Shield, Upper BS-1740502AMA
...
30
SHIELD, Heat BS-1001619E701MA
...
31
MUFFLER BS-094654MA
...
32
GASKET, Exhaust BS-692236
...
33
SCREW BS-06X103MA
...
34
WASHER, 5/16" LOCK BS-5025170SM
...
35
BOLT, Washer Hex Head BS-06X104MA
...
36
GUARD, Exhaust Pipe BS-1001880E701MA
...
37
PLENUM BS-7101960YP
...
38
WASHER, EXT, 3/8 BS-703864
...
39
CLIP, Wire Adhesive BS-055939MA
