7800303 Murray - 425621x108C/D, Lawn Tractor Rover (2008)

Model: 7800303

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

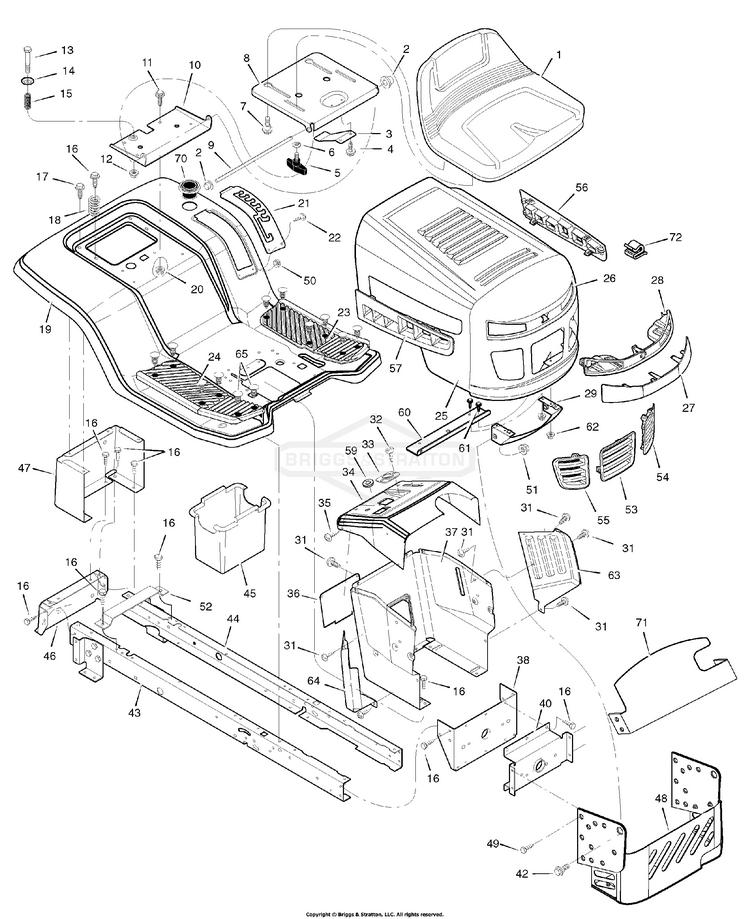

Chassis & Hood - Front Muffler Heat Shield

...
...
1
SEAT ADAPTOR KIT BS-1687498YP
...
2
PUSHNUT, 3/8 BS-703948
...
3
Spring BS-094057MA
...
4
Screw BS-26X229MA
...
5
Bolt, Wing BS-1001054MA
...
6
WASHER, FLAT 5/16 BS-704015
...
7
Bolt, Shoulder BS-009X56MA
...
8
SUPPORT, SEAT BS-7300875BMYP
...
9
Rod, Pivot BS-094156ZMA
...
10
Bracket, Pivot BS-7300794BEYP
...
11
CAPSCREW,5/16-18X.625 BS-703822
...
12
NUT .25-20 FLANGELOCK BS-015X89MA
...
13
Bolt, Shoulder BS-009X55MA
...
14
Washer, Cup BS-094155ZMA
...
15
Spring BS-164X31MA
...
16
Screw BS-26X249MA
...
17
SCREW.25-20 S-T BS-26X263MA
...
18
Spring BS-164X30MA
...
19
Deck, Seat BS-7300914BEYP
...
20
NUT, HEX, 5/16-18 BS-703902
...
21
Plate, Lift Index BS-094886E701MA
...
22
Screw BS-009X47MA
...
23
Mat, Left BS-095408MA
...
24
Mat, Right BS-095409MA
...
25
Hood BS-7400263BEYP
...
26
Grille BS-7300779BEYP
...
27
Lens BS-1001820MA
...
28
Housing, Light BS-1001819MA
...
29
Bracket, Lower Pivot BS-7300758BEYP
...
31
Screw BS-26X270MA
...
32
Screw BS-26X238MA
...
33
Bearing, Steering BS-1001491MA
...
34
Dash BS-1001594E701MA
...
35
Screw BS-26X201MA
...
36
Panel, Access BS-093007E701MA
...
37
SUPPORT, DASH BS-7300872BMYP
...
38
Bracket, Rear Hanger BS-1001270E701MA
...
40
Axle, Hanger BS-094007E701MA
...
42
BOLT, SHOULDER BS-702315
...
43
RAIL - FRAME RH BS-1001928E701MA
...
44
RAIL-FRAME LH BS-1001269E701MA
...
45
Container, Battery BS-690424MA
...
46
Plate, Hitch BS-1001002E701MA
...
47
PLATE REAR BS-7300866ZYP
...
48
Muffler Heat Shield Assembly BS-1740501AYP
...
49
Screw BS-26X277MA
...
50
NUT#10-24 MCLEANLOCK BS-015X81MA
...
51
Nut BS-15X124MA
...
52
Support, Battery BS-690482E701MA
...
53
Insert, Center Grille BS-1001816MA
...
54
Insert, Left Grille BS-1001818MA
...
55
Insert, Right Grille BS-1001817MA
...
56
Insert, Left Hood BS-1001814MA
...
57
Insert, Right Hood BS-1001815MA
...
59
Grommet, Parking Brake BS-1001755MA
...
60
Bracket, Support BS-1001921E701MA
...
61
Screw, Hex BS-0025X3MA
...
62
NUT, 1/4-20, GR5 BS-703233
...
63
Panel, Left Side BS-095218MA
...
64
Panel, Right Side BS-095217MA
...
65
Fastener, Panel BS-0193X1MA
...
70
Holder, Cup BS-1001542MA
...
71
HEAT SHIELD, Upper BS-1740502AMA
...
72
RETAINER, S-Clip BS-028X83MA
...
--
Owner's Manual BS-7102129
...
--
Illustrated Parts List BS-7102524
