7800292 Murray - 385002x108C, Lawn Tractor Rover (2008)

Model: 7800292

Back To Assemblies

Save Part Not Listed?
product name

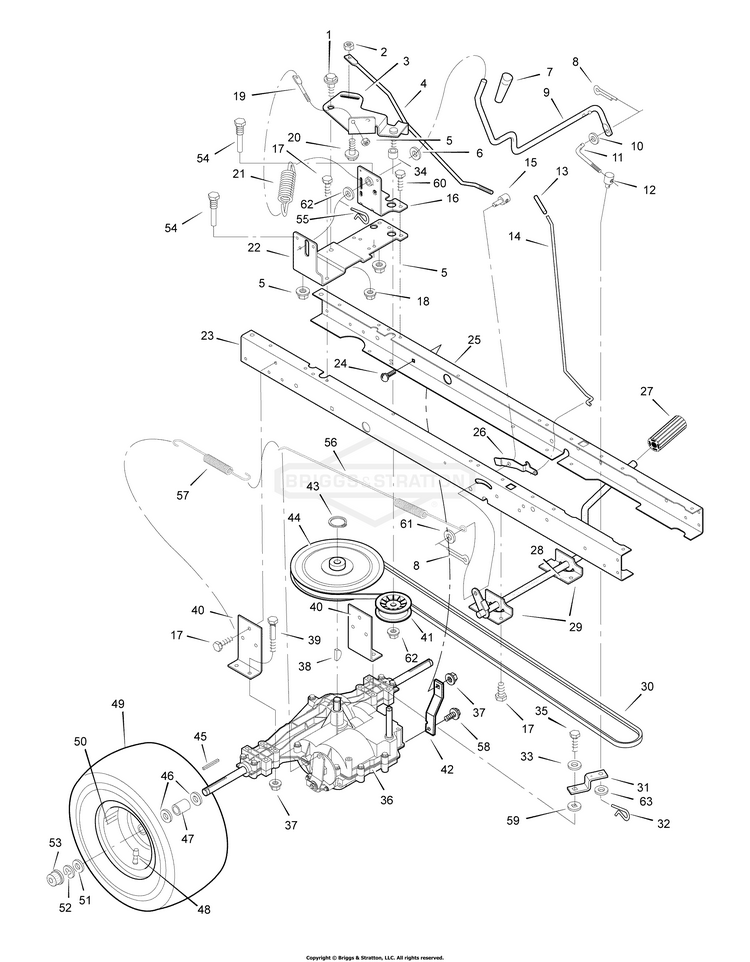

Motion Drive

...
...
1
BOLT, Shoulder BS-009X39MA
...
2
NUT .25-20 FLANGELOCK BS-015X89MA
...
3
ARM, Idler BS-690173ZMA
...
4
ROD, Clutch BS-094041ZMA
...
5
NUT, 5/16-18, GR5 BS-703409
...
6
WASHER BS-703128
...
7
GRIP BS-1753233YP
...
8
PIN, COTTER, 3/32X.75 BS-703312
...
9
LEVER, Shift BS-094043ZMA
...
10
WASHER, FLAT 5/16 BS-704015
...
11
LINK, Shift BS-094044ZMA
...
12
NUT, Adjuster BS-021920ZMA
...
13
GRIP BS-1753233YP
...
14
ROD, Parking Brake BS-1001245ZMA
...
15
NUT-ADJUSTING BS-094815ZMA
...
16
BRACKET, Shift Pivot BS-1001303ZMA
...
17
SCREW BS-26X249MA
...
18
NUT, 3/8-16 BS-703333
...
19
MOUNT, Stud Spring BS-094042ZMA
...
20
BOLT, Shoulder BS-009X54MA
...
21
SPRING, Extension BS-165X116MA
...
22
BRACKET, Right Shifter BS-7300824ZMA
...
23
FRAME, Right BS-7300870ZMA
...
24
BOLT BS-703159
...
25
FRAME, Left BS-7300869ZMA
...
26
LATCH, Parking Brake BS-094045ZMA
...
27
PEDAL-BRAKE BLACK RUB BS-1727261SM
...
28
LEVER, BRAKE, CLUTCH BS-7400256ZMA
...
29
BRACKET, Pedal BS-1001117E701MA
...
30
Belt, Motion Drive BS-037X87MA
...
31
YOKE, Shift BS-094031ZMA
...
32
PIN, 3/32 X 1.6 BS-703300
...
33
WASHER BS-017X38MA
...
34
SPACER BS-690369MA
...
35
BOLT BS-06X105MA
...
37
NUT, HEX FLNG,5/16-18 BS-704067
...
38
KEY, Woodruff BS-020697MA
...
39
SCREW BS-703868
...
40
BRACKET, Transaxle BS-7300769ZMA
...
41
PULLEY BS-690409MA
...
42
BRACKET, Torque Strap, LH BS-7300845ZMA
...
43
RING RETAINER BS-0011X7MA
...
44
PULLEY Drive BS-095094MA
...
45
KEY, Square BS-021553MA
...
46
WASHER BS-17X160MA
...
47
SPACER, Transaxle BS-1401103MA
...
48
VALVE STM&CP,TR41 SE BS-024373MA
...
49
Tire * (K358 Tread) BS-091923MA
...
50
WHEEL & TIRE ASSEMBLY (Includes Ref. No. 48, 49, 64) BS-092288601MA
...
51
WASHER BS-17X195MA
...
52
RING, E .750D .050T BS-0011X3MA
...
53
HUB CAP BS-094618MA
...
54
GUIDE SCREW - ZINC BS-093349MA
...
55
PIN, 3/32 X 1.6 BS-703300
...
56
SPRING, Extension BS-165X115MA
...
57
SPRING, Extension BS-165X92MA
...
58
SCREW BS-26X216MA
...
59
WASHER BS-17X148MA
...
60
SCREW BS-26X267MA
...
61
WASHER, FLAT, .377X1 BS-703966
...
62
NUT, CNTR LCK, 3/8-16 BS-703893
...
63
WASHER, FLAT .406X.81 BS-71072MA
...
64
TUBE (Not Illustrated) BS-2164247SM
