7800292 Murray - 385002x108C, Lawn Tractor Rover (2008)

Model: 7800292

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

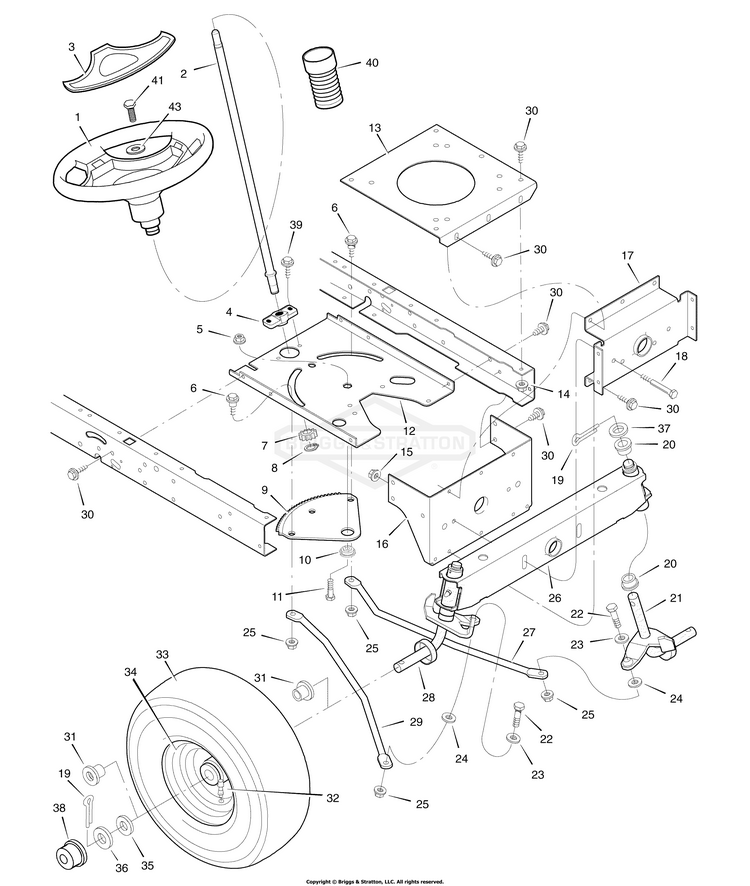

Steering

...
...
1
Wheel, Steering BS-1001980MA
...
2
Post, Steering BS-690625MA
...
3
Cover, Steering Wheel BS-1001982MA
...
4
Bearing (Included with Ref. No. 2) BS-094124MA
...
5
Nut, Flange * BS-15X111MA
...
6
Bolt, Shoulder BS-009X57MA
...
7
GEAR - PINION (Included with Ref. No. 2) BS-690183MA
...
8
Ring, Snap * BS-011X25MA
...
9
Gear, Sector BS-094121MA
...
10
Bearing BS-094123MA
...
11
BOLT BS-5025011X8FS
...
12
PLATE, STEERING MT BS-7300867ZMA
...
13
Plate, Engine BS-094006E701MA
...
14
NUT, HEX FLNG,5/16-18 BS-704067
...
15
NUT, 5/16-24 Hex Flange Lock, BZ BS-704279
...
16
Bracket, Hanger BS-1001270E701MA
...
17
Axle, Hanger BS-094007E701MA
...
18
Bolt BS-01X146MA
...
19
Pin, Cotter BS-030X49MA
...
20
Bearing BS-690150MA
...
21
Spindle Assembly, Left BS-094576E701MA
...
22
CAPSCREW,3/8-16X1.5 BS-703406
...
23
WASHER, FLAT BS-710083MA
...
24
WASHER, FLAT .406X.81 BS-71072MA
...
25
NUT, CNTR LCK, 3/8-16 BS-703893
...
26
Axle Assembly BS-1001460E701MA
...
27
Drag Link, Left BS-095329E701MA
...
28
Spindle Assembly, Right BS-094575E701MA
...
29
Drag Link, Right BS-095328E701MA
...
30
Screw BS-26X249MA
...
31
Bearing, Wheel BS-091334MA
...
32
VALVE STM&CP,TR41 SE BS-024373MA
...
33
Tire ** (Turf Saver Tread) BS-024380MA
...
34
Wheel and Tire Assembly ** (Include Ref. No. 32, 33, 44) BS-094581650MA
...
35
Washer BS-17X195MA
...
36
Washer BS-17X192MA
...
37
WASHER.76-1.2 13G FL BS-17X113MA
...
38
HUB CAP BS-094618MA
...
39
Screw BS-26X267MA
...
40
Bellows BS-092059MA
...
41
Screw, Hex BS-0025X3MA
...
43
WASHER, 5/16 x 1-1/4 OD BS-1933468SM
...
44
Tube (Not Illustrated) BS-1664090SM
