7800292 Murray - 385002x108C, Lawn Tractor Rover (2008)

Model: 7800292

Back To Assemblies

Save Part Not Listed?
product name

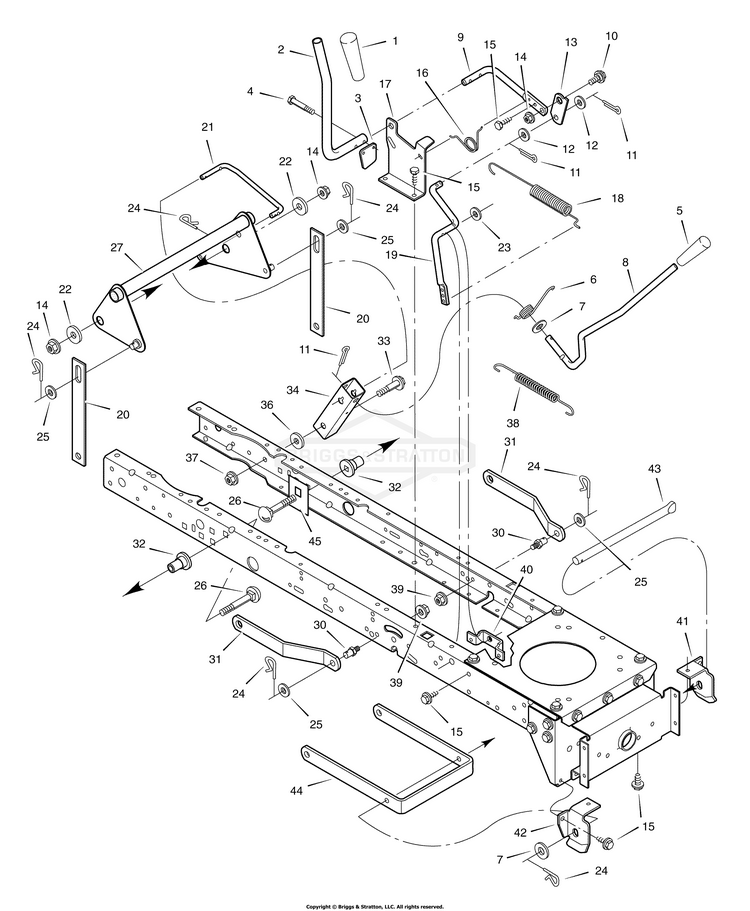

Mower Housing Suspension

...
...
1
GRIP BS-1753233YP
...
2
HANDLE PTO BS-094157ZMA
...
3
PADDLE-SWITCH BS-094022ZMA
...
4
SCREW, Hex BS-0025X3MA
...
5
GRIP BS-1753233YP
...
6
SPRING BS-166X40MA
...
7
WASHER BS-17X103MA
...
8
HANDLE, Lift BS-690533MA
...
9
LEVER, PTO BS-094017ZMA
...
10
BOLT, Shoulder BS-009X39MA
...
11
PIN, COTTER, 3/32X.75 BS-703312
...
12
WASHER BS-017X57MA
...
13
LINK, PTO BS-094004YZMA
...
14
NUT, 3/8-16 BS-703333
...
15
SCREW BS-26X249MA
...
16
SPRING BS-166X39MA
...
17
BRACKET, PTO BS-7300821ZMA
...
18
SPRING, PTO BS-165X118MA
...
19
CRANK, PTO BS-690394E701MA
...
20
LIFT LINK (LT) BS-690212E701MA
...
21
LINK, Lift Handle BS-7300877ZMA
...
22
WASHER BS-17X168ZMA
...
23
WASHER BS-017X57MA
...
24
PIN, 3/32 X 1.6 BS-703300
...
25
WASHER BS-017X91MA
...
26
BOLT, Carriage BS-002X85MA
...
27
LEVER ASSEMBLY, Lift BS-7500525ZMA
...
30
PIN, 3/8-16 BS-704054
...
31
BRKT, REAR SUSPENSION BS-7300826BMYP
...
32
SPACER, Lifter BS-690151MA
...
33
BOLT, Shoulder BS-009X53MA
...
34
BRACKET, Pivot BS-7300819ZMA
...
36
WASHER BS-17X191MA
...
37
NUT, 3/8-16 BS-703333
...
38
SPRING BS-165X131MA
...
39
NUT, 3/8-16 BS-703333
...
40
BRACKET, PTO BS-7300796ZMA
...
41
HANGER, Left Deck BS-094027E701MA
...
42
HANGER, Right Deck BS-094026E701MA
...
43
ROD, Hanger BS-094158ZMA
...
44
BRACKET, Suspension BS-7300767ZMA
...
45
PLATE, Stiffening BS-7300868ZMA
