7800204 Murray - MP2265, 22" Walk Behind (2008)

Model: 7800204

Save Part Not Listed?
product name

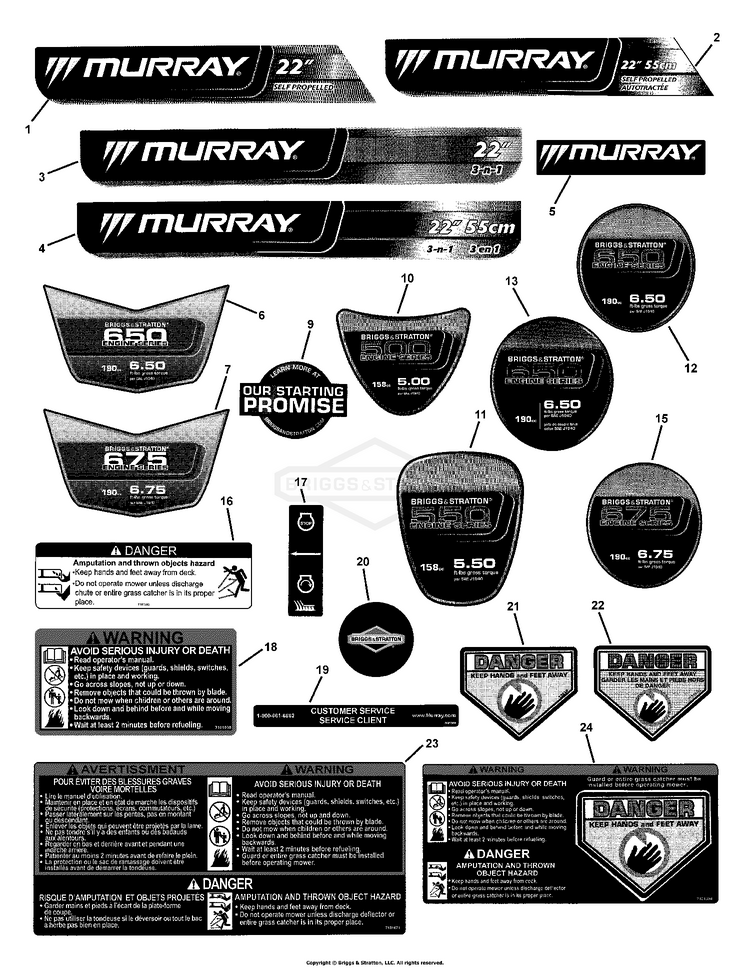

Decals

...
...
1
DECAL, Murray Logo, Deck BS-7101932YP
...
2
DECAL, Murray Logo, Deck, SS, FC (used on 7800260) BS-7102313YP
...
3
DECAL, Murray Logo, Deck BS-7101902YP
...
4
DECAL, Murray Logo, Deck, Push, FC (used on 7800258) BS-7102314YP
...
5
DECAL, Murray Logo, Deck BS-7101901YP
...
6
DECAL, Engine, Murray, TP, 650, Cailf. (used on 7800241 & 7800242) BS-7102268YP
...
7
DECAL, Engine, Murray, TP, 675, Cailf. (used on 7800243) BS-7102269YP
...
8
DECAL, Engine, Murray, TP, 500 (used on 7800239) (Not Shown) BS-7102270YP
...
9
DECAL, Starting Promise (used on 7800243) BS-277878YP
...
10
DECAL, ENGINE, TP 500 BS-7101930YP
...
11
DECAL, Engine, Murray, TP, 550 BS-7101929YP
...
12
DECAL, Engine, Murray, TP, 650 BS-7101903YP
...
13
DECAL, Engine, TP, 650, Murray, FC (used on 7800260) BS-7102166YP
...
14
DECAL, Engine, Murray, TP, 550, FC (Not shown) BS-7102272YP
...
15
DECAL, Engine, Murray, TP, 675 BS-7101909YP
...
16
DECAL, Danger, Deck, MY 07.5 BS-7101110YP
...
17
DECAL, OPC Bail International Symbol BS-7029782MA
...
18
DECAL, Warning, Walk-Behind Mower BS-7101908YP
...
19
DECAL, Customer Service, Murray BS-7102369YP
...
21
DECAL-DANGER, CUT FIN BS-7013010SM
...
22
DECAL, CPSC, French/English BS-7101495YP
...
23
DECAL, WB Safety, French/English BS-7101671YP
...
24
DECAL, Warning, Rear Discharge Door BS-7101394YP
...
--
DECAL, Engine, TP, 675, Murray, FC (Not shown) BS-7102167YP
...
--
DECAL, ENGINE, TP 500 (Not shown) BS-7101930YP
...
--
DECAL, Honda, 160 GCV, FC (Not shown) BS-7102305YP
...
--
DECAL, RF/EMC, Honda, P# 87629-ZG9-8012 (Not shown) BS-7102373YP
...
--
DECAL, Meets CPSC Requirements (Used on California Models) (Not Shown) BS-7102286YP

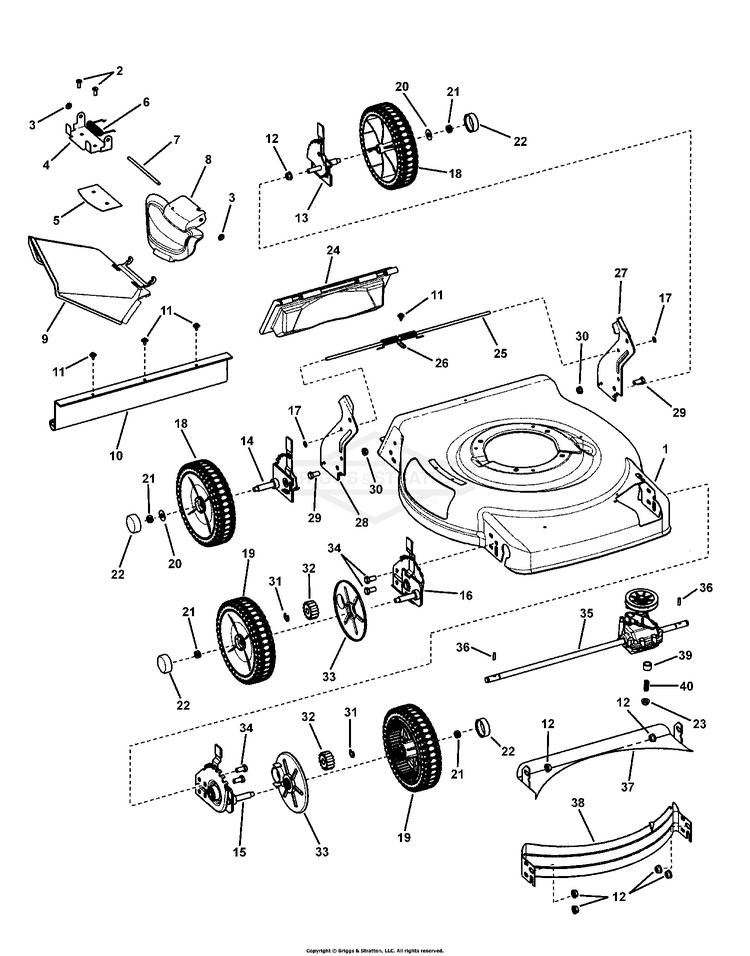

Deck Assembly - Self-Propelled, Standard Wheels

...
...
1
DECK, 22" Walk, 3-N-1 BS-7300400ZMA
...
2
SCREW, 1/4-20 X .550, T-30 Pan Head Torx, Self-Tapping, Zinc/Clear BS-703961
...
3
PUSHNUT, CAP, 1/4 BS-704005
...
4
BRACKET, Chute BS-7300855ZMA
...
5
PLATE, Mulch, 22" RB Scott's BS-7300856ZMA
...
6
SPRING, Chute - Torsion BS-166X38MA
...
7
ROD, PIVOT BS-7101067YP
...
8
COVER, Mulch, Plastic, Black BS-1101098MA
...
9
SIDE CHUTE, Plastic, Black BS-1101097MA
...
10
GUARD, Rear, 22" Mower Deck BS-7103347YP
...
11
HWST, 10-24X.50 SEMS BS-7091286YP
...
12
NUT, 3/8-16 BS-703333
...
13
ASSY, Height-of-Cut, Left Rear, 7 Position BS-7501066YP
...
14
HOC ASSY, MURRAY, 7 BS-7501065YP
...
15
ASSY, Height-of-Cut, Left Front, 22" WBM, Self-Prop, 7 Position BS-7501061YP
...
16
HOC ASSY, 22" WBM PR BS-7501062YP
...
17
CAP, Retainer BS-028X49MA
...
18
ASSY, Wheel, 8" x 2" Idle, NB Murray Tread, Gray BS-7500860YP
...
19
ASSY, Wheel, 8" x 2" Drive, NB, Murray Tread, Gray BS-7500862YP
...
20
WASHER, FLAT, .377X1 BS-703966
...
21
NUT, 3/8-16 BS-703347
...
22
HUBCAP, Round, Black BS-7101351MA
...
23
NUT, HEX FLNG,5/16-18 BS-704067
...
24
DOOR, Rear Discharge, 22" Walk Mower BS-1101070MA
...
25
ROD, Pivot, Rear Door - 1/4" Dia. X 17-1/2" BS-215X21MA
...
26
SPRING, Torsion, Rear Door, 22" Walk Mower BS-7101461YP
...
27
BRACKET, Lower Handle, RH BS-7300890ZYP
...
28
BRACKET, Lower Handle, LH BS-7300891ZYP
...
29
BOLT, 5/16-18X0.625 BS-703823
...
30
NUT, 5/16-18, GR5 BS-703409
...
31
RETAINER, RING, 1/2 BS-703976
...
32
GEAR, Pinion, 22" WBM, FWD BS-7101207YP
...
33
SHIELD, Dust, 22" WBM, FWD BS-7101402YP
...
34
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
35
TRANSMISSION, 22" WBM Single Speed, Front Wheel Drive BS-7101206MA
...
36
DRIVE PIN, 22" WBM, Front Wheel Drive BS-7101270YP
...
37
BAFFLE, REAR, 22 DEC BS-7300854DYP
...
38
BAFFLE, FRONT 22" BS-7300440BMYP
...
39
SPACER, Engine BS-043844MA
...
40
SPRING, Compression BS-164X27MA

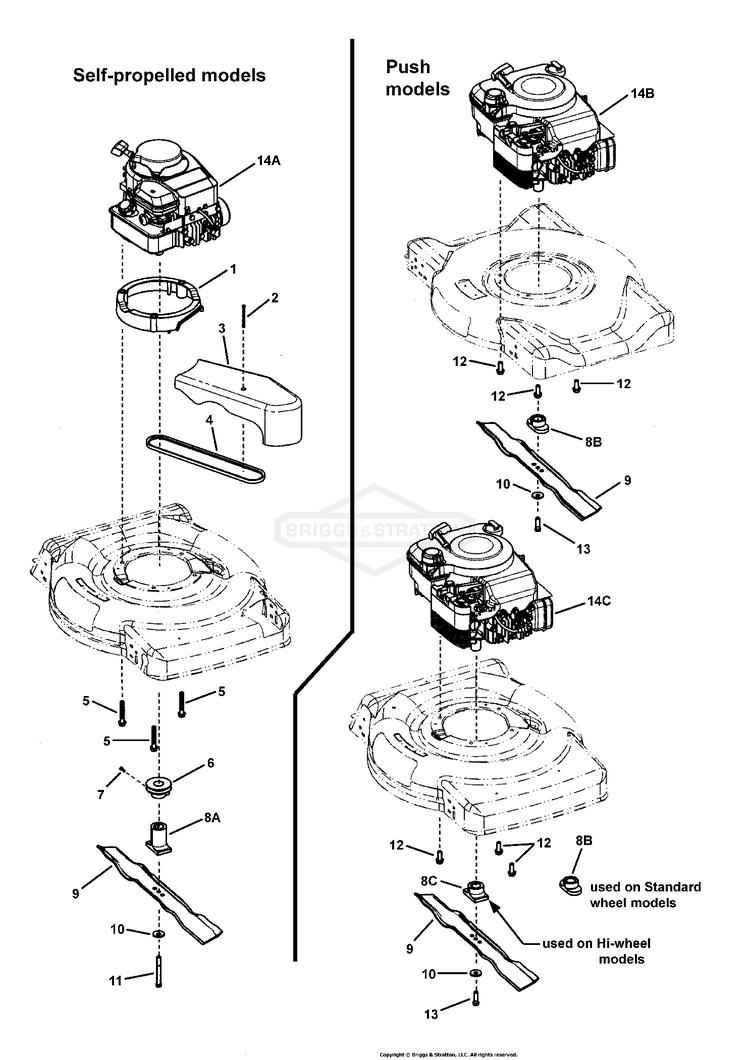

Engine, Blade & Front Cover

...
...
1
** ASSY, Engine Spacer, 22" WBM, Propelled BS-7101449YP
...
2
SCREW, #10-24 x 2-1/2" BS-26X304MA
...
3
COVER, Belt, Plastic BS-1101596MA
...
4
BELT, Drive 22" WBM, SS (3L sect. 33.75 effective length) BS-7101193MA
...
5
BOLT, 3/8-16 x 2-1/2" Hex Washer Face BS-025X11MA
...
6
PULLEY, Engine, 22" Deck, Single Speed BS-7100763MA
...
7
SCREW, #8-11 x 5/8" Poly BS-26X303MA
...
8A
HUB, Blade, 22" Deck (self-propelled) (used on self-propelled models) BS-7100740YP
...
8B
HUB, Blade, 22" Push (used on push models with standard wheels) BS-1101825MA
...
8C
HUB, Blade, 22" Push (used on push models with high-wheels) BS-7100862YP
...
9
BLADE, 22", WALK MWR BS-7100851AYP
...
10
WASHER, Bellville, .38" ID x 1.183 OD BS-1101989MA
...
11
BOLT, 3/8-24 x 3-1/4" Hex Head, GR 8 BS-01X144MA
...
12
SCREW, Hex Washer Head, Self Tap, 3/8-16 x 1 BS-704000
...
13
SCREW, 3/8-24 x 1-1/4" Hex Head Cap, GR 5 BS-7090824YP
...
14A
* ENGINE, B&S, 650 Ser, B3, X-Spec (used on 7800203 & 7800204) BS-124T02-0650-B3
...
14A
* ENGINE, B&S, 650 Ser, B1, X-Spec (used on 7800259 & 7800260) BS-124T02-0301-B1
...
14A
* ENGINE, B&S, 650 Ser, F3, X-Spec (used on 7800241 & 7800242) BS-124L02-0650-F3
...
14A
* ENGINE, B&S, 675 Ser, B3, X-Spec (used on 7800205) BS-126T02-0675-B3
...
14A
* ENGINE, B&S, 675 Ser, F3, X-Spec (used on 7800243) BS-126L02-0675-F3
...
14A
* ENGINE, B&S, 675 Ser, X-Spec, B1, FC (used on 7800261) BS-126T02-0177-B1
...
14B
* ENGINE, B&S, 500 Ser, Murray, XSQ, B1 (used on 7800201) BS-10T602-0114-B1
...
14B
* ENGINE, B&S 500 Series, FC (used on 7800257 & 7800803) BS-10T602-0119-B1
...
14C
* ENGINE, B&S, 550 Ser, X, B3 (used on 7800202) BS-10T802-0144-B1
...
14C
* ENGINE, B&S, 550 Ser, XAQ, B1 (used on 7800258) BS-10T802-0155-B1
...
14C
* ENGINE, B&S, 550 Ser, FC, B1 (used on 7800804) BS-10T802-0155-B1

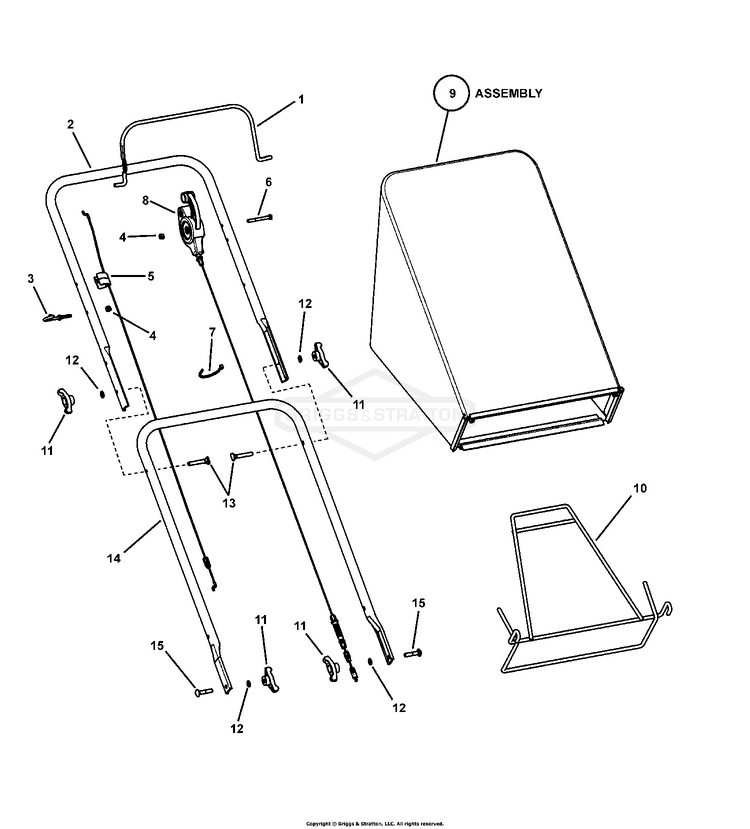

Handles & Controls - Self-Propelled

...
...
1
BAIL, OPC Propelled BS-7101676AMA
...
2
UPPER HANDLE, Propelled BS-7300705AMA
...
3
ROPE GUIDE-UPPER BS-071530MA
...
4
NUT, 1/4-20, NYLOCK BS-703232
...
5
CABLE, Bail, Std Propelled - 53.50" overall length (used on 7800204 & 7800260) BS-7101862YP
...
5
CABLE, Bail, Hi-Wheel Propelled - 58.00" overall length (used on 7800205 & 7800261) BS-7101861MA
...
6
BOLT, 1/4-20 BS-5025010X18SM
...
7
WIRE TIE, 11 Inch Std Black Nylon BS-7024649YP
...
8
CONTROL, Drive, Single Speed Std Wheel (used on 7800204 & 7800260) BS-7101858YP
...
8
CONTROL, Drive, Single Speed Hi-Wheel (used on 7800205 & 7800261) BS-1101670MA
...
9
ASSY, Grass Bag, Cloth - incl. next item below BS-7101893MA
...
--
BAG, Cloth, Grass Bag, Murray BS-1101005MA
...
10
WELDMENT, Frame, Grass Bag BS-1101074MA
...
11
WINGKNOB, 5/16-18 BS-703065
...
12
WASHER, 5/16 BS-703587
...
13
BOLT, 5/16-18X2 BS-703059
...
14
HANDLE, Lower BS-7300706AMA
...
15
BOLT, 5/16-18 x 1-1/2" Square Neck Carriage BS-002X81MA
...
15
BOLT, 5/16-18X1.5 BS-703296
