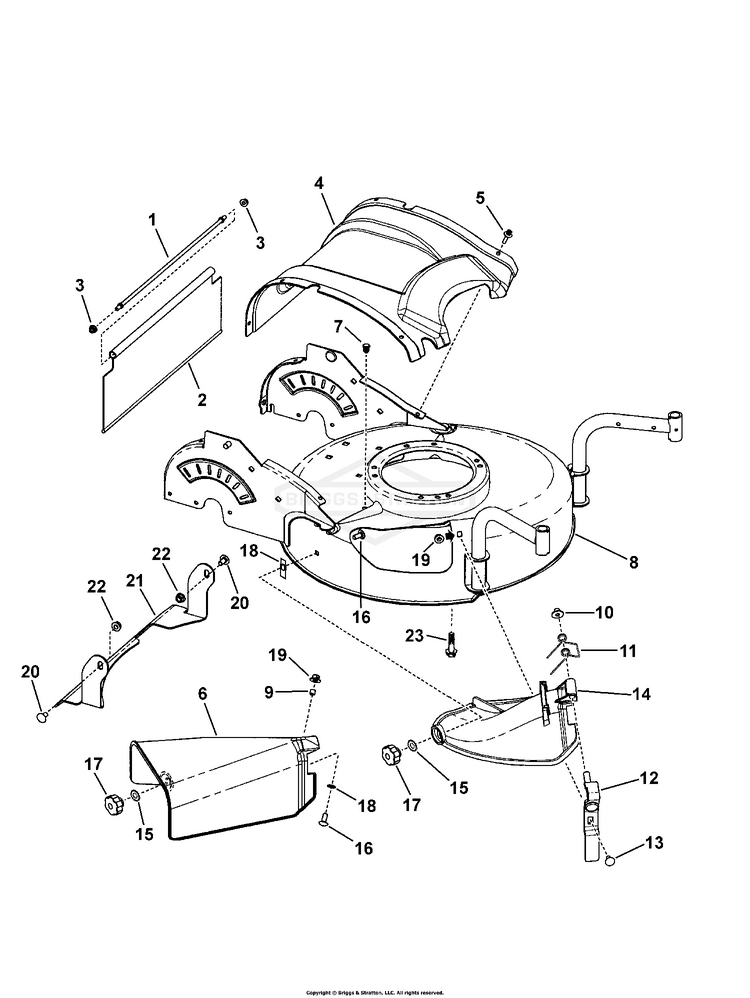

7800198 Murray - JS45, 21" 8.75GT Variable Speed Swivel Wheel Mower (2009)

Model: 7800198

Save Part Not Listed?

Popular Parts

ENGINE, B&S 875 SERIES, INTEK (not shown) used on JS45 BS-12S502-0114-B1

ENGINE, B&S 875 SERIES, XIC (not shown) used on NJS45 BS-12S602-0111-F1

ENGINE, B&S 875 SERIES, XIP, FC (not shown) used on JS45FC BS-12S502-0122-B1

ROD, Trail Shield (1/4-20 thread, both ends) BS-7078225YP

SHIELD, Trail BS-7078272YP

NUT, 1/4-20, GR5 BS-703233

COVER, Rear, Belt/Transmission BS-7100001YP

SCREW, 7mm x 1 x .550 AB Point BS-7900032YP

CHUTE, SIDE DISCHARGE BS-7100244YP

PLUG, Hole, .44” OD BS-7046780SM

WELDMENT, DECK, 21" WHL, VALUE LINE BS-7400295F

SPACER BS-7024340SM

PUSHNUT, 3/8 BS-703948

SPRING, MULCH COVER BS-7100253YP

HINGE PIVOT/COVER STP BS-7400137YP

RHSSNB, 5/16C X5/8 BS-7900015YP

COVER, MULCHING BS-7100243YP

IETLW, 5/16 BZ BS-7090189

BOLT, Round Head, Short Square Neck BS-703185

KNOB, Fluted, 5/16 X 1/2 BS-7101022YP

RETAINER, GR5, 5/16 BS-703297

NUT, 5/16-18 BS-704001

BOLT, 5/16-18X.625 G5 BS-703447

SHIELD, DEBRIS,DECK BS-7300700FYP

NUT, 5/16-18, GR5 BS-703409

SCREW, HWST, 3/8-16 X 1.25 BS-7900072YP
