7800198 Murray - JS45, 21" 8.75GT Variable Speed Swivel Wheel Mower (2009)

Model: 7800198

Save Part Not Listed?

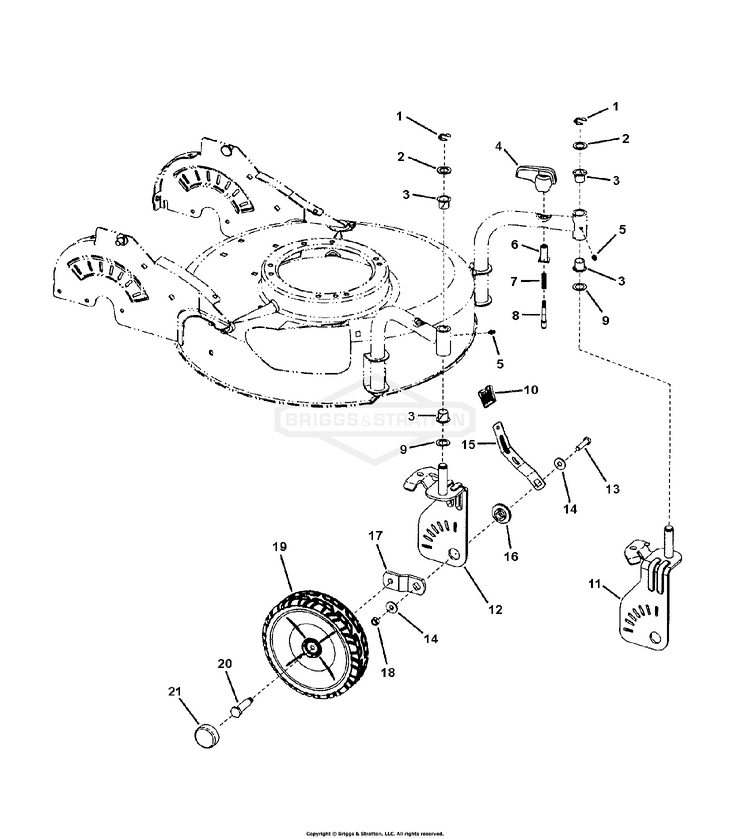

Front Wheels

RING, Clipring Extension for .625 dia. Shaft BS-1704420SM

WASHER, .64 x .99 x .025 Flat, YZ BS-7092021YP

NYLINER, 5/8 BS-7046628YP

KNOB, Quick Release BS-7101202YP

LUBE FITTING, 3/16" Press Fit BS-7013864SM

BUSHING, Handle Pin BS-7101199YP

SPRING, Compression BS-7101200YP

PIN, Handle Adjust BS-7101198YP

WASHER, Flat, 5/8 BS-7091628SM

GRIP, HT LATCH, BLACK BS-7103793YP

WELDMENT, Swivel Wheel Bracket, LH BS-7400293YP

WELDMENT, Swivel Wheel Bracket, RH BS-7400294YP

CAPSCREW, Hex Head, 5/16-18 x 1 1/4 BS-703570

FW, YZ BS-7900022YP

LEVER, Height Adjust, Swivel Wheel BS-7100251YP

SPACER, Swivel Wheel Pivot BS-7100249YP

AXLE PLATE, Swivel Wheel BS-7300432YP

NUT BS-703164

ASSY, WHEEL, 8X2 IDLE, JD TRD, BB, JD YELLOW (incl. 2 ball brgs, p/n 7101380) BS-7500544YP

AXLE, Swivel Wheel, 1-5/8 (3/8-16 thread) BS-7101484YP

HUBCAP, ROUND, JD YELLOW BS-7101391YP
