7800198 Murray - JS45, 21" 8.75GT Variable Speed Swivel Wheel Mower (2009)

Model: 7800198

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

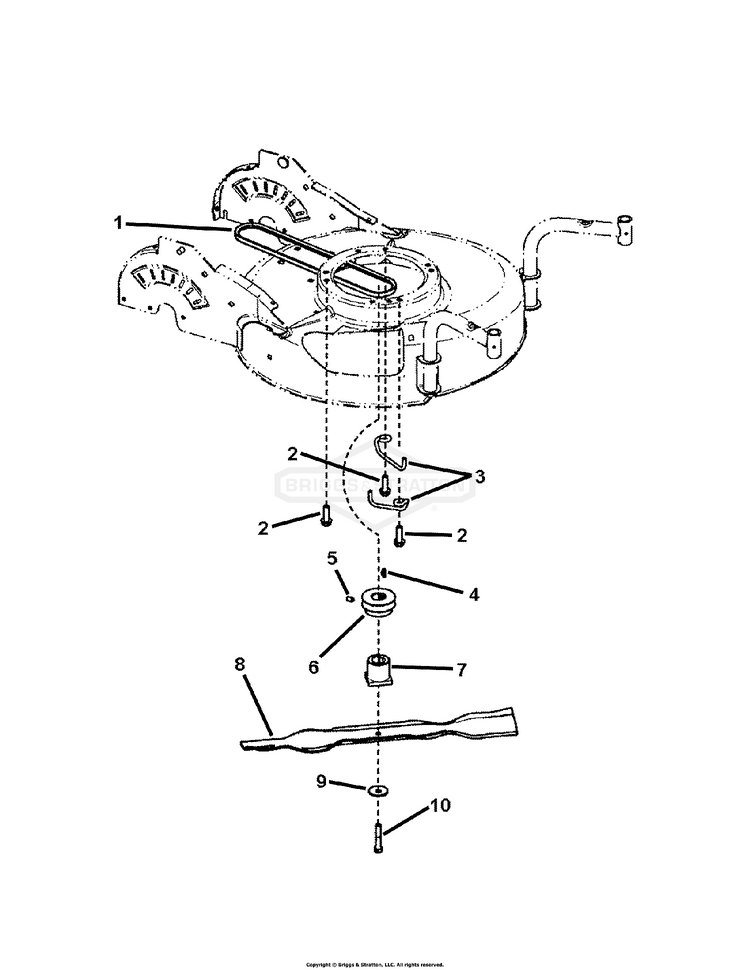

Blade and Adapter

...
...
1
BELT, 3L, Traction Drive, 21" BS-7100883YP
...
2
SCREW, HWST, 3/8-16 X 1.25 BS-7900072YP
...
3
BELT GUIDE BS-7102900YP
...
4
KEY, #HP-506 Hi-Pro BS-7091214YP
...
5
SET SCREW, 5/16-18 x 1/2" Hex Recess BS-7092086YP
...
6
PULLEY, Engine BS-7100437YP
...
7
HUB, BLADE, 21" WBM, RD, 2 POSITION BS-7101414YP
...
8
BLADE, WAVE, 21 STEEL BS-7100242AYP
...
9
WASHER, CONE BS-703963
...
10
HHCS, 3/8F X2 GR5 BS-7090167SM
