product name

77236000NB Murray - 536.772360, Craftsman Edgers (2008)

Model: 77236000NB

Save
Part Not Listed?Part Not Listed?

product name

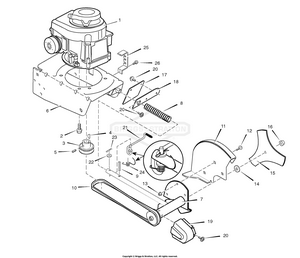

Edger Blade Assembly

...
...
2

...
3
PULLEY, V3L BS-52052MA

...
4
KEY, Hi Pro #505 BS-338490MA

...
5
SCREW, Set BS-120580MA

...
6
FRAME, Edger BS-1701067E701MA

...
7
QUILL ASSY, VERT E/T BS-740096E701MA

...
8

...
9
SPRING PIN BS-032X72MA

...
10
BELT, V4L BS-32668MA

...
11
BLADE GUARD BS-331076E701MA

...
12

...
13
NUT, HEX FLNG,5/16-18 BS-704067

...
14
WASHER, Flat BS-22265MA

...
15
BLADE, Edger BS-740296MA

...
16
NUT, 1/2-20 BS-46023MA

...
17
DEFLECTOR, Rubber BS-338582MA

...
18
PLATE, Rubber Flap BS-337792E701MA

...
19
BELT GUARD BS-336631MA

...
20
SCREW-#10X.5 B W/WAS BS-26X245MA

...
21
LEVER, Blade BS-1701069MA

...
22

...
23
PIN, Hair BS-36368MA

...
24
SPRING, Torsion BS-166X49MA

...
25
BRACKET, Index BS-1701066MA

...
26
SCREW.25-20 S-T BS-26X263MA

...
--
Decal, Caution Rotating Blade BS-333874MA

...
--
MANUAL, Owner's BS-1740549

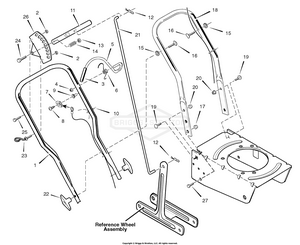

Handle Assembly

...
...
1
HANDLE, Upper BS-740142E701MA

...
2
NUT, 1/4-20 BS-703251

...
3
CAP, Operator Control BS-339489MA

...
4
NUT, Push On BS-314276MA

...
5
BAIL, Operator Control BS-337744MA

...
6
SPRING, Torsion BS-337775MA

...
7
CLIP, Grounding BS-340162MA

...
8
SCREW, #6x.50 BS-57796MA

...
9
INSULATOR, Operator Control BS-339229MA

...
10
TIE,STRAP-REMOVABLE BS-071372MA

...
11
HANDLE, Depth BS-1701062E701MA

...
12
HAIR PIN BS-36368MA

...
13

...
14
SPRING, Compression BS-25644MA

...
15

...
16
BOLT, 5/16-18 x .75 BS-315288MA

...
17
NUT, 5/16-18 BS-1498MA

...
18
HANDLE, LOWER BS-1701051E701MA

...
19
BOLT, 5/16-18 x .75 BS-711558MA

...
20
NUT, 5/16-18, GR5 BS-703409

...
21
ROD, Control BS-1701064E701MA

...
22
WING KNOB 5/16-18 BS-071495MA

...
23
ROPE GUIDE BS-672510MA

...
24

...
25
BOLT, 1/4-20 BS-5025010X12SM

...
26
BRACKET, Adjustment Quadrant BS-1701063E701MA

...
27
BOLT, 5/16-18 x 2 BS-126380MA

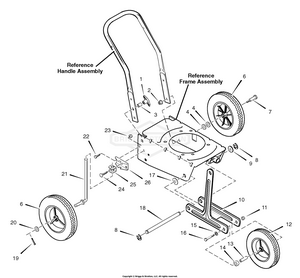

Wheel Assembly

...
...
1
WINGKNOB, 5/16-18 BS-703065

...
2
NUT, 3/8-16 BS-703333

...
3
SPACER, Sleeve BS-45222MA

...
4

...
6
TIRE & RIM BS-336545MA

...
7
BOLT, Shoulder BS-0009X6MA

...
8
Ring, Ret E. BS-011X16MA

...
9
WASHER, Flat BS-417098MA

...
10
ARM, Front Wheel BS-1701050E701MA

...
11
NUT, HEX FLNG,5/16-18 BS-704067

...
12
TIRE & RIM BS-336546MA

...
13
SPACER, Sleeve BS-1701052MA

...
14
WASHER, Nylon BS-1701054MA

...
15
WASHER, Flat BS-120393MA

...
16

...
17
WASHER,SPRING .52X.99 BS-0020X3MA

...
18
ROD, Axle Front BS-740091MA

...
19
PIN, COTTER, 3/32X.75 BS-703312

...
20

...
21
ROD, Wheel Support BS-310896MA

...
22
BOLT, 5/16-18 X 3/4" BS-5025011X6SM

...
23
NUT, 5/16-18 BS-1498MA

...
24
BOLT, 5/16-18 x 2.00 BS-126380MA

...
25
CLEVIS BS-8082MA

...
26
BRACKET, Curb-Hop BS-6842MA
...
...
...
