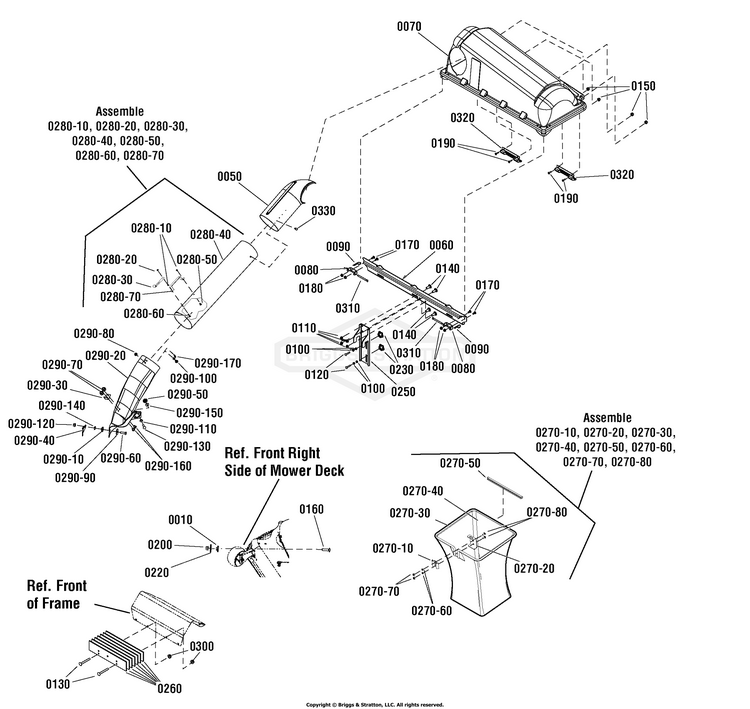

7600124 Murray - 107.99021 - Triple Bagger

Model: 7600124

Save
 Part Not Listed?Part Not Listed?
product name

Triple Bagger

...
...
0010
SPACER, Pivot BS-1723244SM
...
0050
ELBOW, Upper Tube BS-1733885SM
...
0060
CROSS SUPPORT BS-1736080AYP
...
0070
ASSEMBLY, Cover and Screen BS-1736101YP
...
0080
PIVOT, HINGE BS-1736886BMYP
...
0090
PIN, HAIR, .0915 X 1-7/8 BS-5025210YP
...
0100
NUT, Hex Flange Whiz-Lock, 5/16-18 BS-703330
...
0110
NUT, 3/8-16 HEX SERRA BS-5025128SM
...
0120
BOLT,RD SH SQ BS-703175
...
0130
BOLT, 5/16-18X2.75 BS-703857
...
0140
BOLT, RD SQ 3/8-16X1 BS-703815
...
0150
NUT, NYLOCK, 10-24 BS-703412
...
0160
BOLT, 5/16-18X1.25 G5 BS-703446
...
0170
BOLT-RD HD SH SQ NK 1 BS-1960252SM
...
0180
NUT, 1/4-20, GR5 BS-703233
...
0190
SCREW, Truss Head Phillips, #10-24 x 3/4 BS-1960404SM
...
0200
NUT BS-703115
...
0220
WASHER, .32IDX1.4OD BS-703939
...
0230
KNOB,HANDLE,5 PRONG BS-7105085YP
...
0250
BRACKET, Triple Bagger, Rear Bumper BS-7301143BMYP
...
0260
BALLAST, Weight BS-7301153BMYP
...
0270-10
CLAMP, GRASS BAG - BL BS-1672023ASM
...
0270-20
HANGER, Grass Bag BS-1703807ASM
...
0270-30
HOOP, Bag BS-1733517SM
...
0270-40
BAG, Grass Catcher, Cloth BS-1733695SM
...
0270-50
EDGING, 12 Long PVC BS-1733709SM
...
0270-60
WASHER, 5/16" LOCK BS-5025170SM
...
0270-70
HN, 5/16C GR5 YZ BS-7091511SM
...
0270-80
BOLT, Round Head, Short Square Neck BS-703185
...
0280-10
NUT, HEX, KEPS,1/4-20 BS-703914
...
0280-20
NUT, HEX FLNG, 1/4-20 BS-703916
...
0280-30
STRAP, Hood BS-2171600SM
...
0280-40
TUBE, Clear, 34" BS-7104383YP
...
0280-50
SCREW, Slotted, 1/4-20 x 1/2 BS-004X24MA
...
0280-60
SCREW, Machine, 1/4-20 x 1 BS-004X71MA
...
0280-70
HANDLE, Connect Tube BS-054416ZMA
...
0290-10
SPACER, 5/16 ID x 1 OD x 1/4 BS-1708511SM
...
0290-20
BOOT, Bagging, 52 Mower BS-1734776YP
...
0290-30
UPSTOP, Deflector BS-1737764AYP
...
0290-40
LATCH, Boot BS-1737765AYP
...
0290-50
KNOB, ESNA, 1/4-20 BS-1738295YP
...
0290-60
CAPSCREW, Hex Head, 5/16-18 x 1 1/4 BS-703570
...
0290-70
NUT, HEX, KEPS,1/4-20 BS-703914
...
0290-80
NUT, HEX FLNG, 1/4-20 BS-703916
...
0290-90
WASHER-0.312(0.33IDX1 BS-1960044SM
...
0290-100
BOLT-RD HD SH SQ NK 1 BS-1960252SM
...
0290-110
NUT, HEX KEPS, 1/4-20 BS-703061
...
0290-120
NUT BS-703115
...
0290-130
CARRIAGE BOLT, 1/4-20 X 1, G5 BS-1960698SM
...
0290-140
WASHER, .531 x .781 3-Wave BS-7026257MA
...
0290-150
WASHER, FLAT BS-7091627YP
...
0290-160
SCREW, Slotted, 1/4-20 x 1/2 BS-004X24MA
...
0290-170
PIN, Latch BS-054563MA
...
0300
NUT, HEX FLNG,5/16-18 BS-704067
...
0310
PIN, Cover Hinge, 3/8 Dia.x 3-3/4 BS-054407ZMA
...
0320
HANDLE, Plastic BS-054537MA
...
0330
SCREW, 1/4 x 3/4 BS-26X239MA
...
...
...
