748001-0311-01 Briggs and Stratton Engine

Model: 748001-0311-01

Save Part Not Listed?
product name

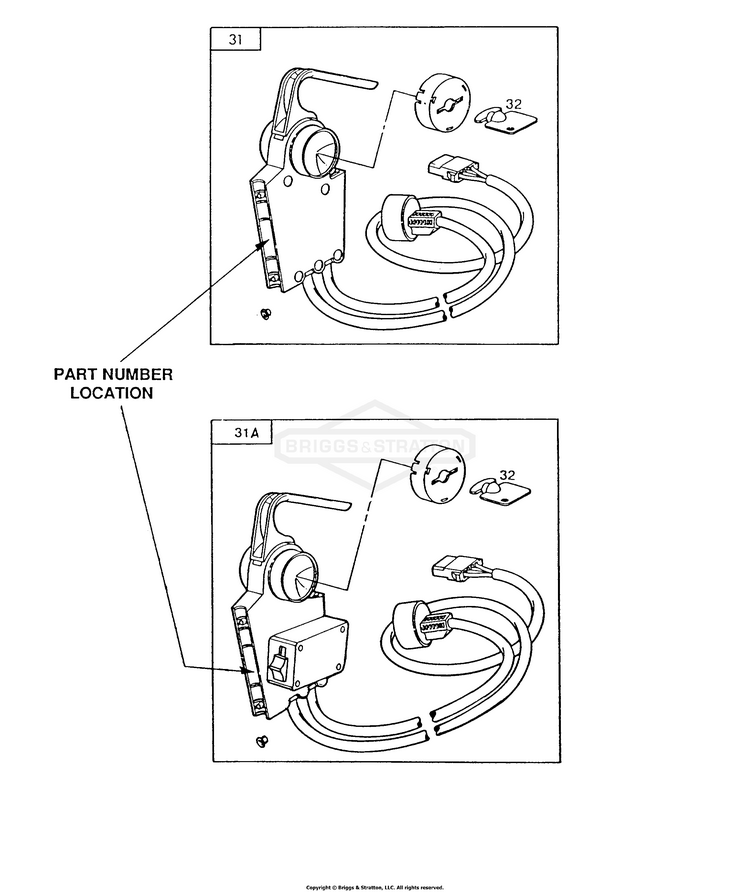

Control Assembly

...
...
31A
CONTROL, Speed (Three Speed) BS-490250
...
31
CONTROL, Speed (Four Conductor) (12 Amp) Used to Replace Parts Numbers 398241, 398406, 398407, 398774, 398775, 398776, 398777, 398778, 399049, 399050, 399051, 399053, 493447, 493450 BS-399192
...
31
CONTROL, Speed (Two Conductor) Used to Replace Part Number 490969 BS-491234
...
32
SET, Key BS-280593

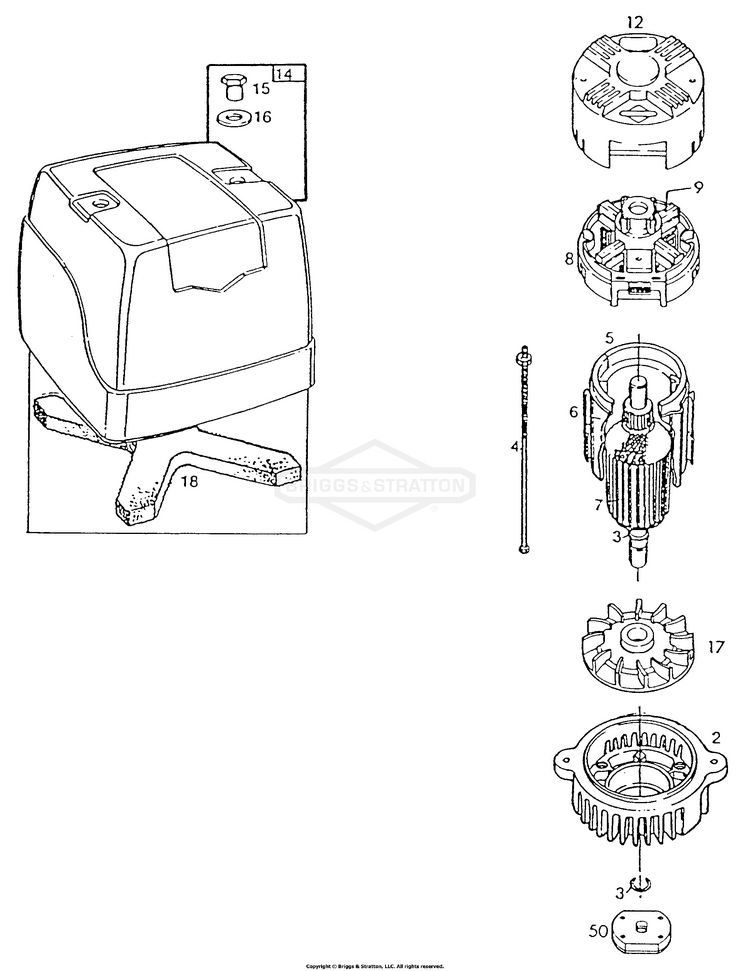

Motor and Housing

...
...
2
FAN, Cooling BS-213119
...
2
DRIVE, End BS-394770
...
2
DRIVE, End BS-397666
...
3
RETAINER BS-395477
...
4
BOLT (Includes Two Sets) BS-490832
...
5
HOUSING, Motor BS-399995
...
6
INSULATOR BS-490830
...
7
Armature Group BS-491495
...
8
BOX, Brush BS-490833
...
9
SET, Brush BS-490834
...
12
CAP, End BS-280709
...
14
COVER, Motor (Includes Hardware And Filter) BS-396267
...
15
NUT BS-231298
...
17
FAN, Cooling BS-280530
...
17
FAN, Cooling BS-280837
...
50
CLUTCH, Centrifugal BS-490845

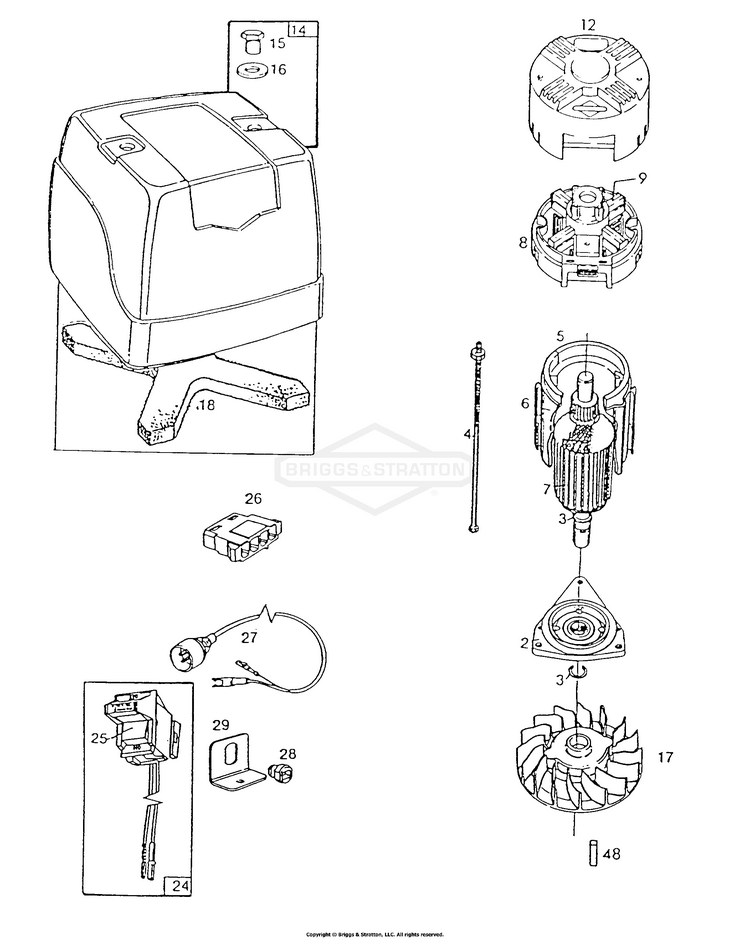

Motor and Housing

...
...
2
FAN, Cooling BS-213119
...
2
DRIVE, End BS-394770
...
2
DRIVE, End BS-397666
...
3
RETAINER BS-395477
...
4
BOLT (Includes Two Sets) BS-490832
...
5
HOUSING, Motor BS-399995
...
6
INSULATOR BS-490830
...
7
Armature Group BS-491495
...
8
BOX, Brush BS-490833
...
9
SET, Brush BS-490834
...
12
CAP, End BS-280709
...
14
COVER, Motor (Includes Hardware And Filter) BS-396267
...
15
NUT BS-231298
...
17
FAN, Cooling BS-280530
...
17
FAN, Cooling BS-280837
...
24
SWITCH, Starting BS-398135
...
25
SWITCH, Key Used Before Code Date 911001 BS-280594
...
25
SWITCH, Key Used After Code Date 910930 BS-281221
...
26
WIRE/CONNECTOR, Alternator BS-280081
...
27
CORD, Starter BS-398270
...
28
PIN, Piston BS-280556

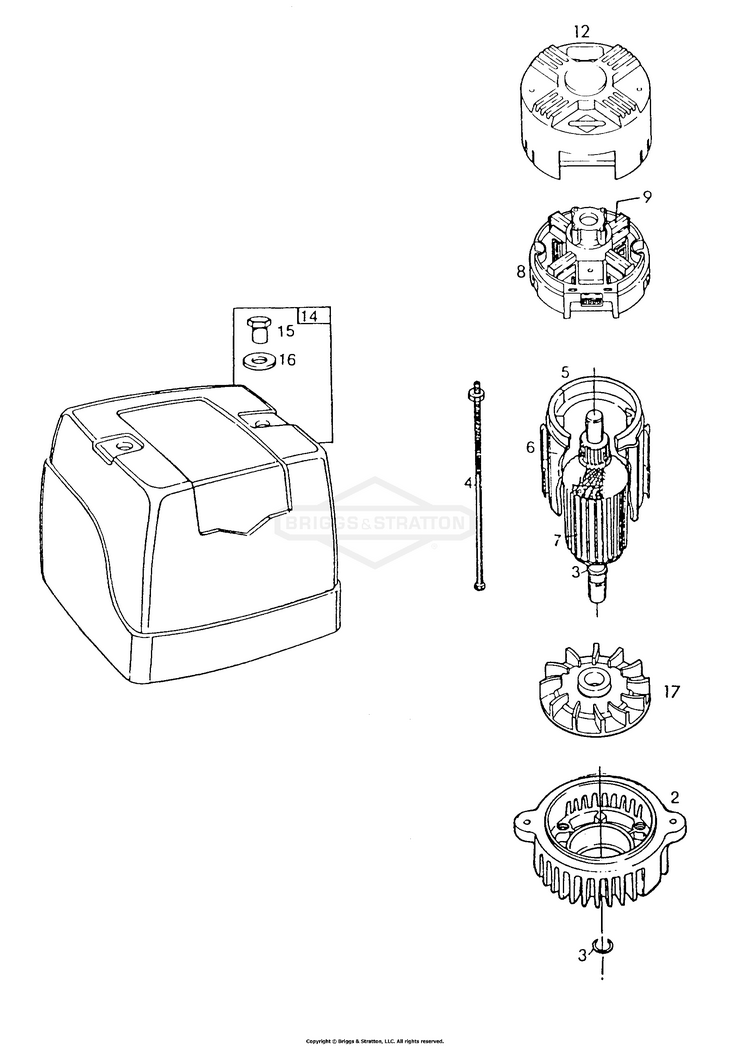

Motor and Housing

...
...
2
FAN, Cooling BS-213119
...
2
DRIVE, End BS-394770
...
2
DRIVE, End BS-397666
...
3
RETAINER BS-395477
...
4
BOLT (Includes Two Sets) BS-490832
...
5
HOUSING, Motor BS-399995
...
6
INSULATOR BS-490830
...
7
Armature Group BS-491495
...
8
BOX, Brush BS-490833
...
9
SET, Brush BS-490834
...
12
CAP, End BS-280709
...
14
COVER, Motor (Includes Hardware And Filter) BS-396267
...
15
NUT BS-231298
...
17
FAN, Cooling BS-280530
...
17
FAN, Cooling BS-280837

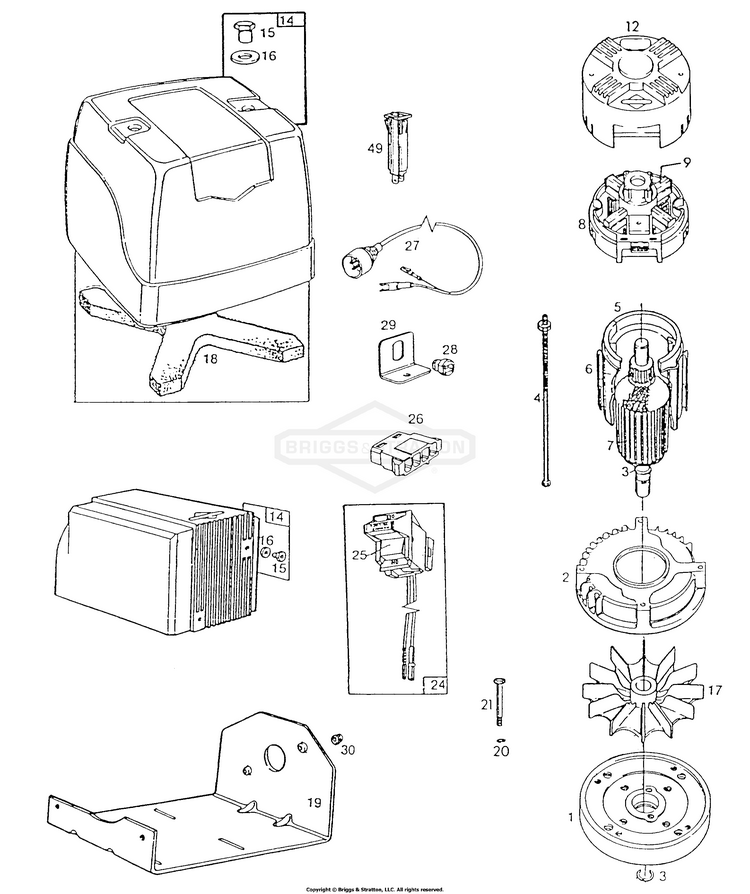

Motor, Housing, Misc

...
...
1
Housing Assembly-Bearing BS-399354
...
2
FAN, Cooling BS-213119
...
2
DRIVE, End BS-394770
...
2
DRIVE, End BS-397666
...
3
RETAINER BS-395477
...
4
BOLT (Includes Two Sets) BS-490832
...
5
HOUSING, Motor BS-399995
...
6
INSULATOR BS-490830
...
7
Armature Group BS-491495
...
8
BOX, Brush BS-490833
...
9
SET, Brush BS-490834
...
12
CAP, End BS-280709
...
14
COVER, Motor (Includes Hardware And Filter) BS-396267
...
15
NUT BS-231298
...
17
FAN, Cooling BS-280530
...
17
FAN, Cooling BS-280837
...
19
BRACKET, Mounting (Nema 56) BS-223565
...
21
SCREW BS-94151
...
24
SWITCH, Starting BS-398135
...
25
SWITCH, Key Used Before Code Date 911001 BS-280594
...
25
SWITCH, Key Used After Code Date 910930 BS-281221
...
26
WIRE/CONNECTOR, Alternator BS-280081
...
27
CORD, Starter BS-398270
...
28
PIN, Piston BS-280556
...
30
NUT (10-24) BS-93991

Replacement Engine - US & Canada

...
...
xx
Replacement Engine BS-7480010220
...
xx
Armature BS-490829
