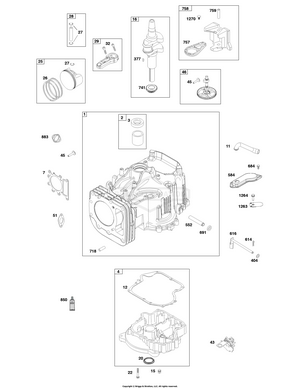

697740 Briggs and Stratton Short Block Assembly

Model: 697740

Save
 Don't See Your Part Listed?
product name

697740

...
...
1
CYLINDER ASSEMBLY BS-697377
...
2
KIT, Bushing/Seal (Magneto Side) BS-797673
...
3
SEAL, Oil (Magneto Side) BS-391086S
...
4
SUMP, Engine BS-697106
...
7
GASKET, Cylinder Head BS-273280S
...
11
TUBE, Breather BS-794683
...
12
GASKET, Crankcase BS-697110
...
15
PLUG, Oil Drain BS-690946
...
16
CRANKSHAFT BS-697390
...
20
SEAL, Oil (PTO Side) BS-795387
...
22
SCREW (Crankcase Cover/Sump) BS-692125
...
25
PISTON ASSEMBLY BS-792307
...
25
PISTON ASSEMBLY (.020 Oversize) BS-792728
...
26
SET, Ring BS-792306
...
26
SET, Ring (.020 Oversize) BS-792643
...
27
LOCK-PISTON PIN BS-698469
...
28
PIN, Piston BS-697099
...
29
ROD, Connecting BS-791633
...
32
SCREW (Connecting Rod) BS-791118
...
43
SLINGER, Governor/Oil BS-691968
...
45
TAPPET, Valve BS-690564
...
46
CAMSHAFT BS-84005207
...
51
GASKET-INTAKE BS-692137
...
377
KEY, Woodruff BS-691639
...
404
WASHER (Governor Crank) BS-691691
...
552
BUSHING, Governor Crank BS-697144
...
584
COVER, Breather Passage BS-794682
...
614
PIN, Cotter BS-691620
...
616
CRANK-GOVERNOR BS-692012
...
684
SCREW (Breather Passage Cover) BS-697157
...
691
SEAL-GOVERNOR SHAFT BS-692407
...
718
PIN, Locating BS-690959
...
741
GEAR, Timing BS-697128
...
757
LINK, Counterweight BS-793242
...
758
COUNTERWEIGHT BS-697391
...
759
PIN, Counterweight BS-697392
...
850
SEALANT, Liquid BS-100106
...
883
GASKET, Exhaust BS-692236
...
1263
REED, Breather BS-697124
...
1264
SCREW (Breather Reed) BS-697104
...
1270
PLUG, AVS Counterweight BS-793243
...
...
...
...
