633136x85B Murray - Dual Stage Snow Thrower (2003)

Model: 633136x85B

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

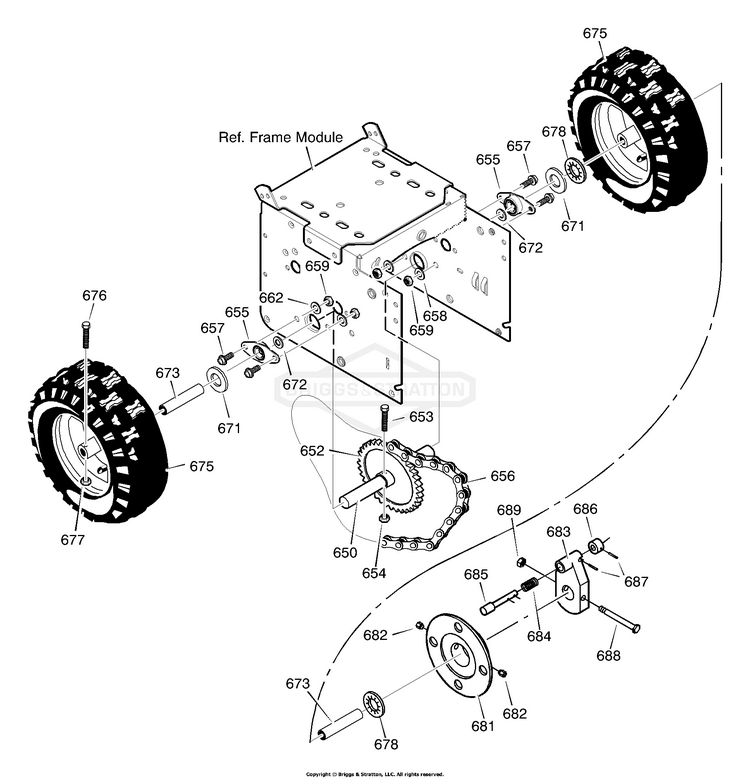

Wheels

...
...
650
SHAFT, AXLE BS-1501564
...
652
SPROCKET,AXLE WF BS-1501089MA
...
653
BOLT, HEX,1/4-20X1.75 BS-704212
...
654
NUT, 1/4-20, NYLOCK BS-703232
...
655
RETAINER & BEARING ASSY BS-53266MA
...
657
SCREW, 3/8"-16x.75 BS-71003
...
658
WASHER, LOCK BS-71062
...
659
NUT, 3/8"-16 BS-71044
...
671
WASHER, FLAT BS-712120MA
...
673
BUSHING, WHEEL BS-1501138MA
...
675
WHEEL & TIRE ASSEMBLY, R.H. SNOW XTRAC 16 x 6.5-8 BS-1736413YP
...
676
SCREW, SHR 1/4-20X1.7 BS-577015MA
...
677
NUT, 1/4-20, NYLOCK BS-703232
...
678
RETAINER, Ring BS-1657528SM
...
680
TIRE & RIM -Left BS-1501019
...
681
DISC,WHEEL LOCK ECOAT BS-1501032EMA
...
682
SCREW BS-2001066MA
...
683
HUB, WHEEL LOCK BS-1501644
...
684
SPRING, COMPRESSION (Included with Ref. No. 683) BS-164X34MA
...
685
PIN, LOCK (Included with Ref. No. 683) BS-1501033 YZ
...
686
KNOB,STEEL KNURL .25 (Included with Ref. No. 683) BS-1501034MA
...
687
PIN (Included with Ref. No. 683) BS-032X79
...
688
SCREW BS-73839MA
...
689
NUT, 1/4-20, NYLOCK BS-703232
