633136x85B Murray - Dual Stage Snow Thrower (2003)

Model: 633136x85B

Back To Assemblies

Save Part Not Listed?
product name

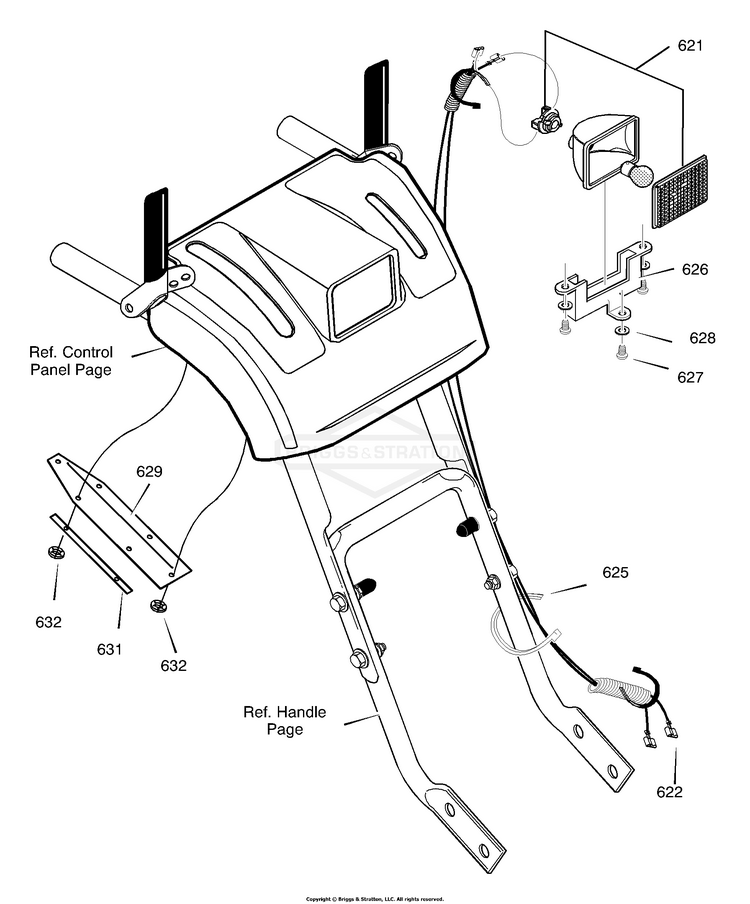

Headlight

...
...
621
LIGHT, HALOGEN BS-762343MA
...
622
HARNESS,LIGHT HAL P4P BS-1501455MA
...
625
TIE,STRAP-REMOVABLE BS-071372MA
...
626
BRACKET, LIGHT BS-578921
...
627
SCREW #8 X .50 BS-901696
...
628
WASHER, FLAT BS-901736
...
629
COVER, SPEED LEVER BS-1501401MA
...
629
COVER, CHUTE LEVER BS-1501402
...
630
FRAME, SPEED LEVER BS-1501330
...
632
NUT, PUSH BS-028X79MA
