633136x85B Murray - Dual Stage Snow Thrower (2003)

Model: 633136x85B

Back To Assemblies

Save Part Not Listed?
product name

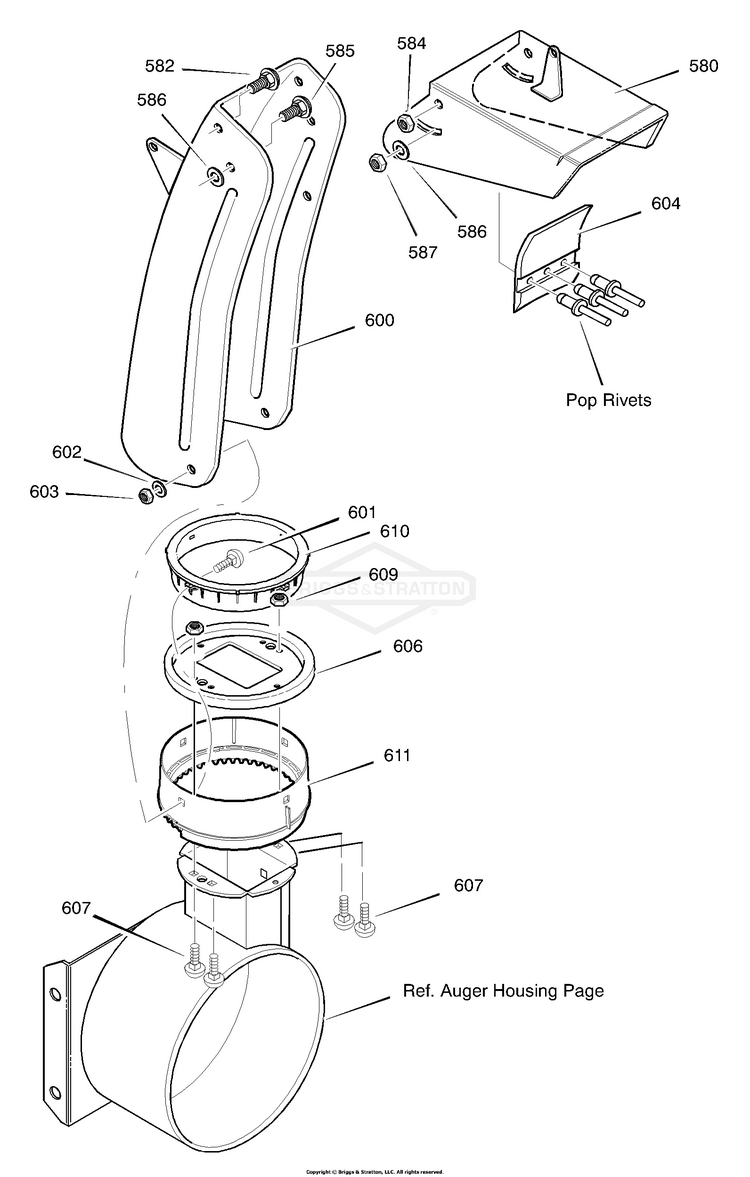

Discharge Chute

...
...
580
CHUTE ASY,UPR C3 RMT BS-761168E701MA
...
582
SCREW, 5/16-18X .75SL BS-578088MA
...
584
NUT, HEX, 5/16-18 BS-703902
...
585
SCREW, 5/16-18X .75SL BS-578088MA
...
586
WASHER, PLASTIC .315X BS-6711MA
...
587
NUT, HEX, 5/16-18 BS-703902
...
600
CHUTE, LOWER W/REMOTE BS-761329E701
...
601
BOLT BS-02X100
...
602
WASHER BS-703350
...
603
NUT, HEX, 5/16-18 BS-703902
...
604
FLAP, C3 CHUTE INSERT BS-762322MA
...
605
RIVET,POP ALM.125X.23 BS-760987MA
...
606
CHUTE COLLAR BS-585214 YZ
...
607
BOLT, 1/4-20 X 3/4 BS-703440
...
609
NUT, 1/4-20, NYLOCK BS-703232
...
610
RETAINER, RING INNER BS-337227MA
...
611
RING,OUTER CHUTE BS-1501282MA
