633134x85A Murray - Dual Stage Snow Thrower (2000)

Model: 633134x85A

Back To Assemblies

Save Part Not Listed?
product name

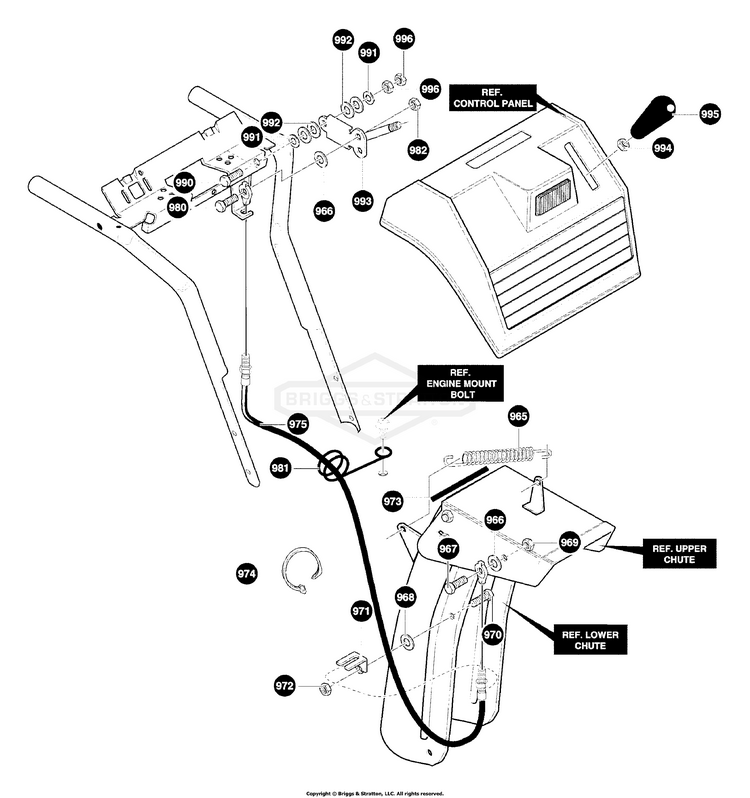

Chute Deflector

...
...
965
SPRING, TENSION RETURN BS-318468MA
...
966
WASHER, FLAT BS-711666
...
967
BOLT-SHD.250X.312 .25 BS-310088MA
...
968
WASHER, FLAT .330X . BS-73787MA
...
969
NUT, 1/4-20 BS-302635
...
970
SCREW BS-313676
...
971
BRACKET, CABLE CHUTE BS-PER - 780066
...
972
IDLER SUPT ASSY 22SD BS-1101253MA
...
973
TRIM BS-055021
...
974
TIE, CABLE BS-760113MA
...
975
CABLE, CHUTE CONTROL BS-761131MA
...
980
BOLT-SHD.250X.312 .25 BS-310088MA
...
981
WIRE FORM,REMOTE CHUT BS-780220MA
...
982
NUT, 1/4-10 BS-302635
...
990
SCREW, 3/8-16 x 1.75 BS-4058
...
991
WASHER, FLAT BS-71072
...
992
WASHER, SPRING BS-4051MA
...
993
HANDLE ASSY, SPEED CONTROL BS-579040
...
994
NUT, 3/8-16 BS-71044
...
995
HANDLE BS-306689MA
...
996
NUT BS-703117
