633134x85A Murray - Dual Stage Snow Thrower (2000)

Model: 633134x85A

Back To Assemblies

Save Part Not Listed?
product name

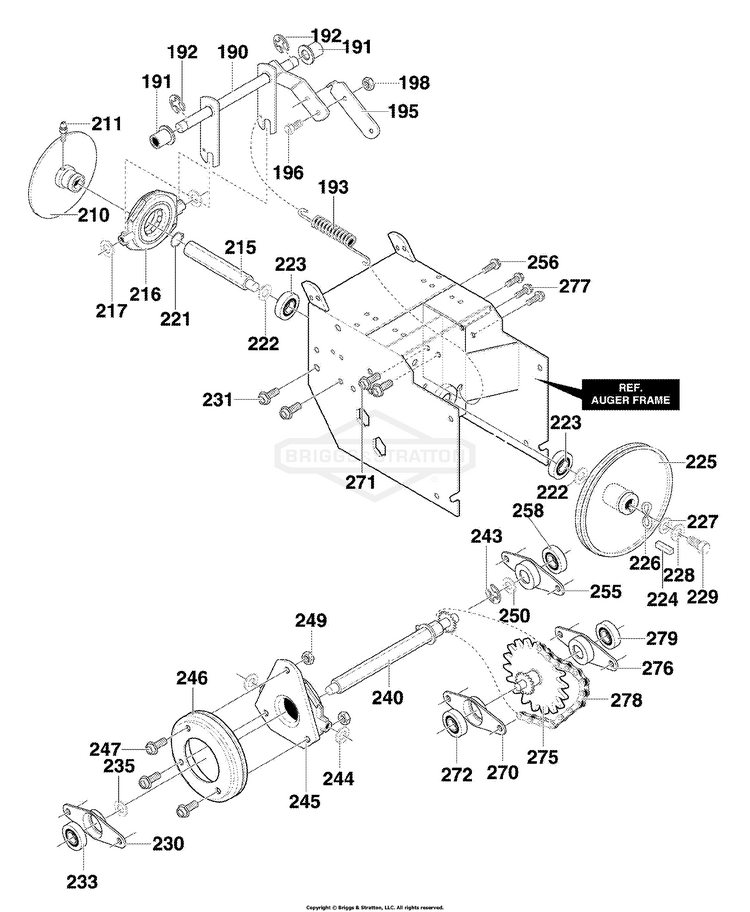

Drive Components Assembly

...
...
190
LEVER, ASSY TRACTION CLUTCH BS-761820MA
...
191
BEARING, FLANGE BS-53703MA
...
192
RING, RET E BS-020864
...
193
SPRING, RETURN BS-53818MA
...
195
LEVER, SPRING BS-579937MA
...
196
SCREW, 1/4-20X .63 BS-11871MA
...
198
NUT, 1/4-20 BS-73826
...
210
DISC, ASSY BS-583163-853
...
211
ZERK, GREASE BS-583206MA
...
215
SHAFT, HEX TRACTION BS-583155MA
...
216
BEARING, TRUNION BS-85501MA
...
217
WASHER, FLAT .53X1.00 BS-71074MA
...
221
RING, RETEX BS-73811MA
...
222
FLATWASHER BS-580969MA
...
223
BEARING, BALL BS-043846
...
224
KEY,SQUARE 3/16 X 3/4 BS-2001022MA
...
225
PULLEY BS-580961MA
...
226
WASHER, WAVE BS-580965MA
...
227
FLATWASHER BS-712123
...
228
WASHER, SPLIT BS-071059MA
...
229
SCREW BS-01X176
...
230
BEARING & RETAINER BS-579850MA
...
231
SCREW, 5/16-18X.5 BS-703985
...
235
WASHER.502-0.75-.06 F BS-579858MA
...
240
ASSEMBLY, HEX SHAFT BS-337307MA
...
243
RING, RETEX BS-783002MA
...
244
WASHER, FLAT .53X1.00 BS-71074MA
...
245
BEARING TRUNNION ASSY BS-1739282YP
...
246
WHEEL, ASSY FRICTION BS-53830
...
247
SCREW, 1/4-20X .63 BS-11871MA
...
249
NUT, HEX, KEPS,1/4-20 BS-703914
...
250
WASHER.502-0.75-.06 F BS-579858MA
...
255
BEARING & RETAINER BS-579850MA
...
256
SCREW, 5/16-18X.5 BS-703985
...
270
BEARING & RETAINER BS-579850MA
...
271
SCREW, 5/16-18X.5 BS-703985
...
275
ASSEMBLY, JACKSHAFT BS-761804MA
...
276
BEARING & RETAINER BS-579850MA
...
277
SCREW, 5/16-18X.5 BS-703985
...
278
CHAIN ROLLER BS-579867MA
