633134x85A Murray - Dual Stage Snow Thrower (2000)

Model: 633134x85A

Back To Assemblies

Save Part Not Listed?
product name

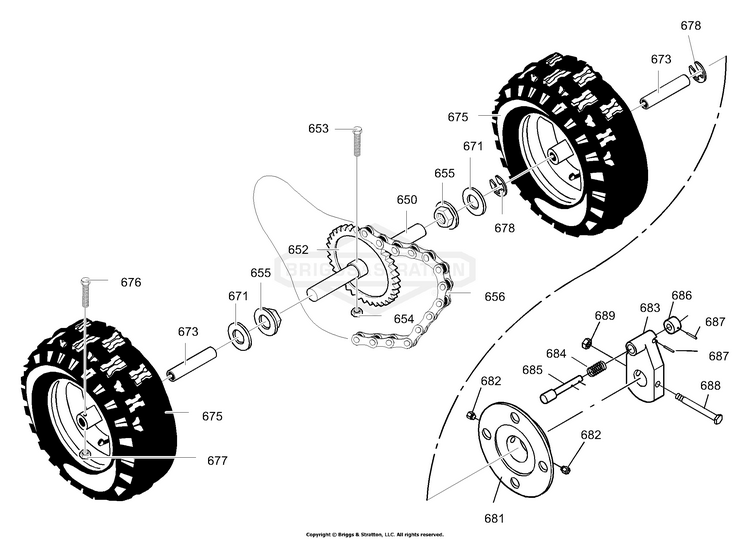

Wheels Assembly

...
...
650
SHAFT, AXLE BS-585386
...
652
SPRKT & HUB BS-583007
...
653
SCREW, 1/4-20X2.25 BS-73839MA
...
654
NUT, 1/4-20 HEX NYLOCK BS-780029
...
655
RETAINER, BEARING BS-50648MA
...
656
CHAIN, ROLLER BS-583013MA
...
671
FLATWASHER BS-712120MA
...
673
BUSHING, WHEEL BS-585591MA
...
675
TIRE & RIM BS-584633MA
...
676
SCREW, SHR 1/4-20X1.7 BS-577015MA
...
677
NUT, 1/4-20 HEX NYLOCK BS-73826
...
678
RETAINER, Ring BS-1657528SM
...
681
DISC, WHEEL BS-1501032-853
...
682
SCREW BS-2001066MA
...
683
HUB, WHEEL LOCK BS-1501031-853
...
684
SPRING, COMPRESSION BS-164X34MA
...
685
PIN, LOCK BS-1501033
...
686
KNOB,STEEL KNURL .25 BS-1501034MA
...
687
PIN BS-032X78
...
688
SCREW BS-73839MA
...
689
NUT BS-780029
