633131x85A Murray - Dual Stage Snow Thrower (2005)

Model: 633131x85A

Back To Assemblies

Save Part Not Listed?
product name

Remote Control

...
...
965
TENSION SPRING BS-318468MA
...
967
BOLT-SHD.250X.312 .25 BS-310088MA
...
968
WASHER, FLAT .330X . BS-73787MA
...
969
NUT,25-20 HEX FLG CTR BS-15X143MA
...
970
SCREW, 5/16-18 x 0.75 BS-313676
...
971
BRACKET, CABLE CHUTE BS-306447 YZ
...
972
IDLER SUPT ASSY 22SD BS-1101253MA
...
973
TRIM STRIP, GREY BS-95105
...
974
TIE,STRAP-REMOVABLE BS-071372MA
...
975
CABLE, CHUTE DEFLECTOR BS-1501393MA
...
980
SCREW BS-780858
...
981
WIRE FORM,REMOTE CHUT BS-780220MA
...
994
NUT, 3/8-16 BS-71045
...
995
KNOB, SHIFT BS-306689MA

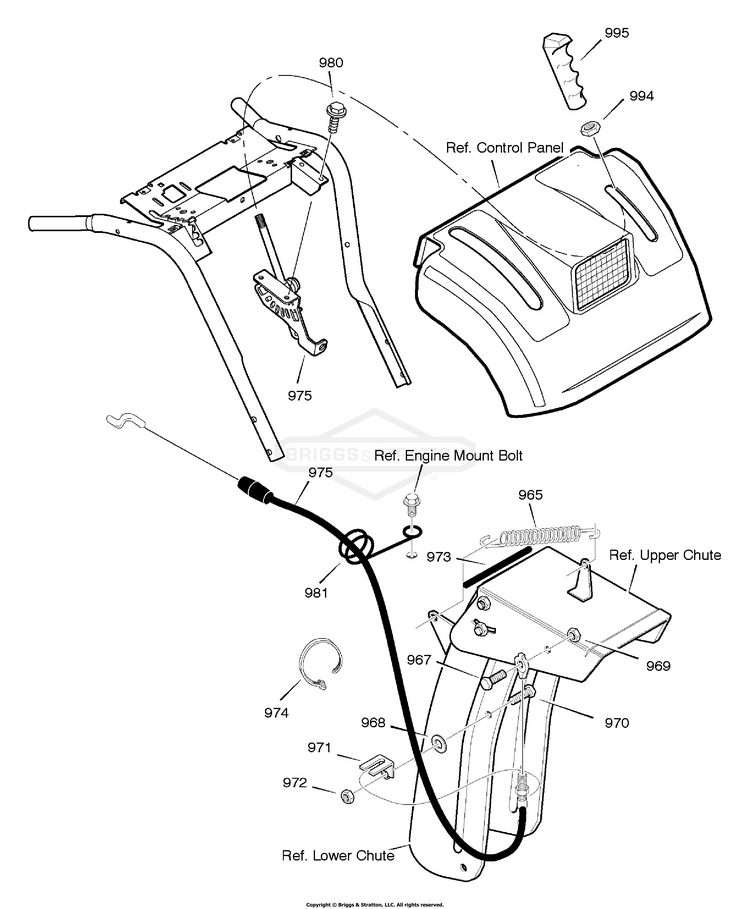

Schematic Image Zoomed
