633131x85A Murray - Dual Stage Snow Thrower (2005)

Model: 633131x85A

Back To Assemblies

Save Part Not Listed?
product name

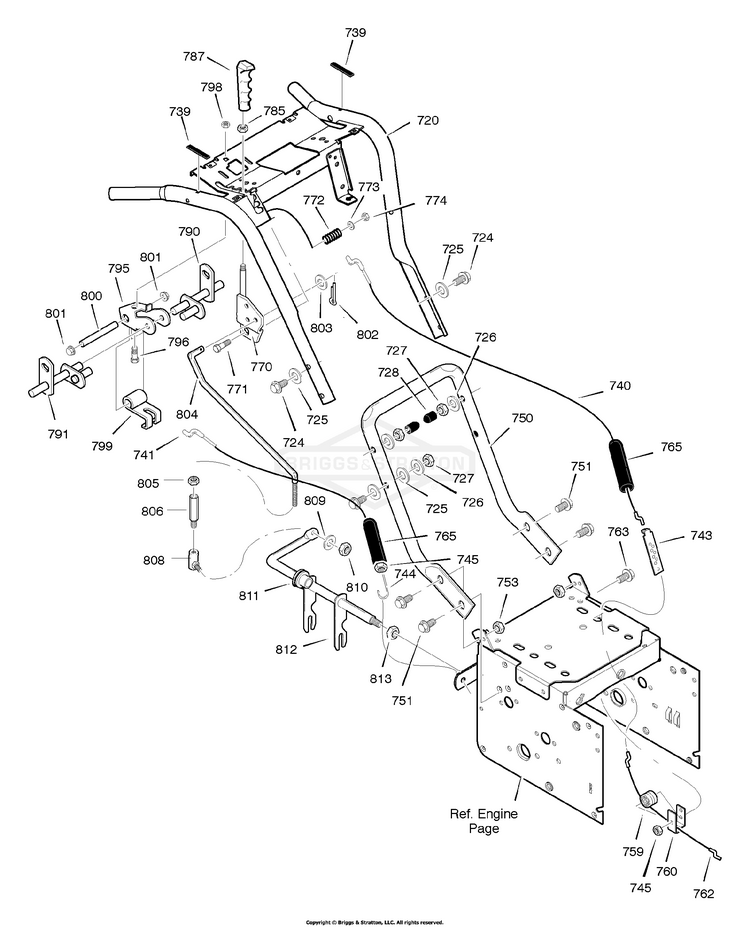

Handle Assembly

...
...
720
ASSY, HANDLE BS-1501421E701
...
724
BOLT, 3/8-16 X 3" GD5 BS-5025013X24SM
...
725
WASHER, FLAT BS-71072
...
726
WASHER BS-71062
...
727
NUT BS-71044
...
728
STOP,PLASTIC.375 BS-7289MA
...
739
BUMPER, RECT W/FLAT T BS-4049MA
...
740
CABLE, AUGER CLUTCH BS-1501451MA
...
741
CABLE, DRIVE BS-1501452MA
...
743
BRACKET, CABLE ADJ BL BS-313441MA
...
744
SPRING, AUGER CLUTCH, BS-1673MA
...
745
NUT, 1/4-20, NYLOCK BS-703232
...
750
HANDLE, LOWER BS-1501449E701
...
751
SCREW, 5/16-18 X .75 BS-703228
...
753
HN, 5/16C GR5 YZ BS-7091511SM
...
759
SPOOL, CABLE BS-579860MA
...
760
BRKT, SPOOL BS-1501059YZMA
...
762
CABLE, LOWER DRIVE BS-1501122MA
...
763
BOLT, 1/4-20 BS-5025010X12SM
...
765
BOOT, CABLE BS-308146MA
...
770
BRACKET, SHIFT BS-1501570 YZ
...
771
SCREW BS-4058
...
772
SPRING,.509 DIA X0.75 BS-50786MA
...
773
WASHER, FLAT BS-71072
...
774
NUT BS-703117
...
785
NUT, HEX BS-71045
...
787
GRIP, LEVER BS-306689MA
...
790
ROD, ASSY LH BS-578926
...
791
ROD, ASSY RH BS-578924
...
795
BRACKET, CAM BS-579002
...
796
BOLT BS-703159
...
798
NUT, HEX, 5/16-18 BS-703902
...
799
CAM LOCK BS-8417MA
...
800
PIN, SPRING PIVOT SHC BS-584673MA
...
801
NUT, PUSH ON BS-73664MA
...
802
PIN, COTTER BS-71081
...
803
WASHER BS-703350
...
804
ROD, SPEED CONTROL BS-1501733
...
805
NUT.31-24 HEX BS-71042MA
...
806
ADAPTOR,ROD SPEED YL BS-6352MA
...
808
BALLJOINT,STEEL YZ BS-50782MA
...
809
M-BAG,2LBG.38 K25 N BS-1501670MA
...
810
NUT.31-24 HEX BS-71042MA
...
811
BRNG FL .500ID X .88 BS-579944MA
...
812
SPEED SELECT ASY BS-1501110YZMA
...
813
RETAINER, RING 7/16 Y BS-11X30MA
