633131x85A Murray - Dual Stage Snow Thrower (2005)

Model: 633131x85A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

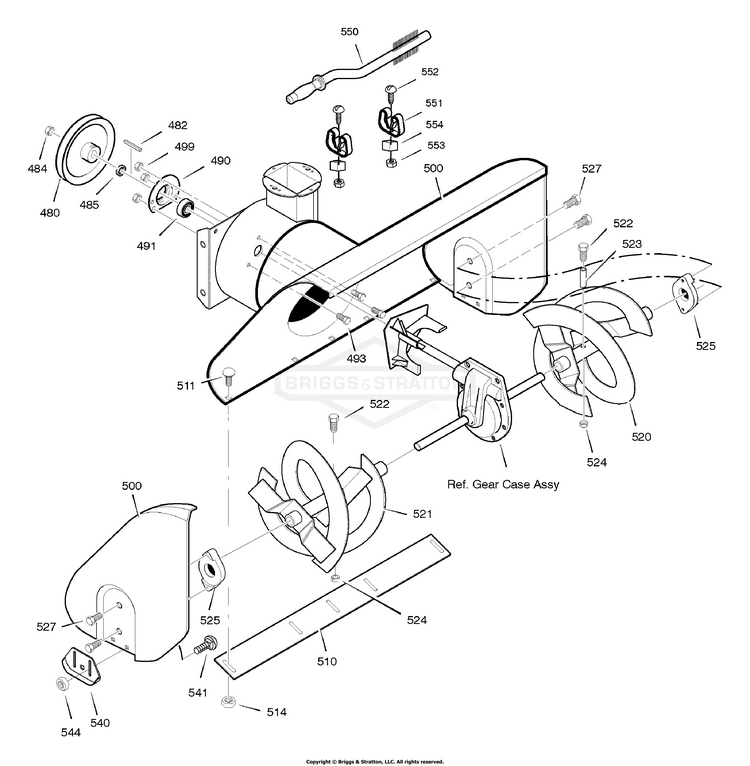

Auger Housing

...
...
480
PULLEY, 4L 8.40 OD BS-583146MA
...
482
KEY,SQUARE 3/16 X 3/4 BS-2001022MA
...
484
NUT.50-20 HEX FLG SER BS-15X112MA
...
485
SPACER,FRICTION PULLE BS-1501158MA
...
490
RETAINER, BEARING BS-1756809YP
...
491
BEARING, BALL 11/16X1 BS-1705897SM
...
493
CAPSCREW,5/16-18X.625 BS-703822
...
499
NUT, 5/16-18 HEXWDFLLK BS-710026
...
500
AUGER HOUSING ASSEMBLY BS-1501710E012
...
510
BLADE, SCRAPER BS-1739239BMYP
...
511
CAPSCREW,5/16-18X.625 BS-703822
...
514
NUT, 5/16-18 BS-710026
...
520
AUGER, ASSEMBLY, LH BS-1740742HMA
...
521
AUGER, ASSEMBLY, RH BS-1740743HMA
...
522
BOLT, 5/16-18 BS-703335
...
524
IDLER SUPT ASSY 22SD BS-1101253MA
...
525
BRNG,AUGER SHAFT MF-L BS-53757MA
...
527
SCREW, 5/16-18 X .75 BS-703228
...
540
SKID, HEIGHT ADJUST BS-1741194AYP
...
541
BOLT, 5/16-18X0.50 BS-703798
...
544
NUT, 5/16-18 BS-710026
...
550
STICK-CLEANOUT W/BRUSH BS-1736094YP
...
551
CLIP,RETAINER YZ BS-1501672MA
...
552
SCREW, 10-24 x 1 1/4 BS-704086
...
553
NUT, NYLOCK, 10-24 BS-703412
...
554
BLOCK,UNIVERSAL PIVOT BS-578063MA
