633131x85A Murray - Dual Stage Snow Thrower (2005)

Model: 633131x85A

Back To Assemblies

Save Part Not Listed?
product name

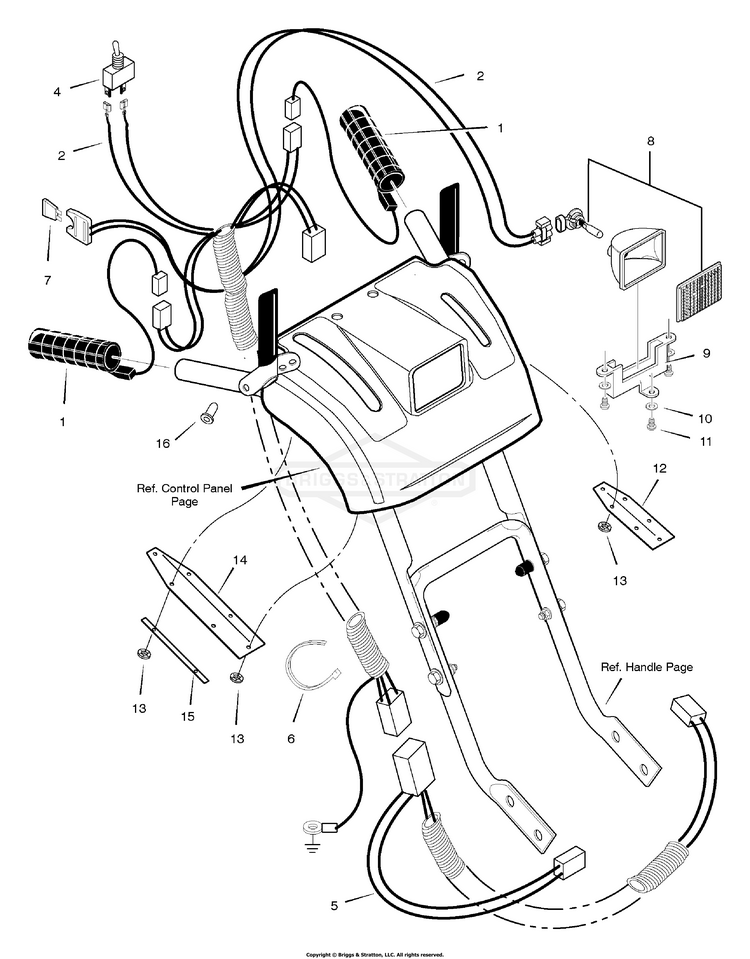

Wiring

...
...
1
GRIP, HEATED BS-1501352MA
...
2
WIRE HARNESS, UPPER BS-1501351MA
...
4
SWITCH, HEATED GRIP BS-1501349MA
...
5
WIRE HARNESS, LOWER BS-1501350MA
...
6
TIE,STRAP-REMOVABLE BS-071372MA
...
8
HEADLIGHT ASSEMBLY * BS-762343MA
...
9
BRACKET BS-578921
...
10
WASHER, FLAT BS-901736
...
11
SCREW #8 X .50 BS-901696
...
12
COVER BS-1501402
...
13
NUT, PUSH BS-028X79MA
...
14
COVER BS-1501401MA
...
15
FRAME BS-1501330
...
16
RIVET,POP ALM.125X.23 BS-760987MA
