633131x85A Murray - Dual Stage Snow Thrower (2005)

Model: 633131x85A

Back To Assemblies

Save Part Not Listed?
product name

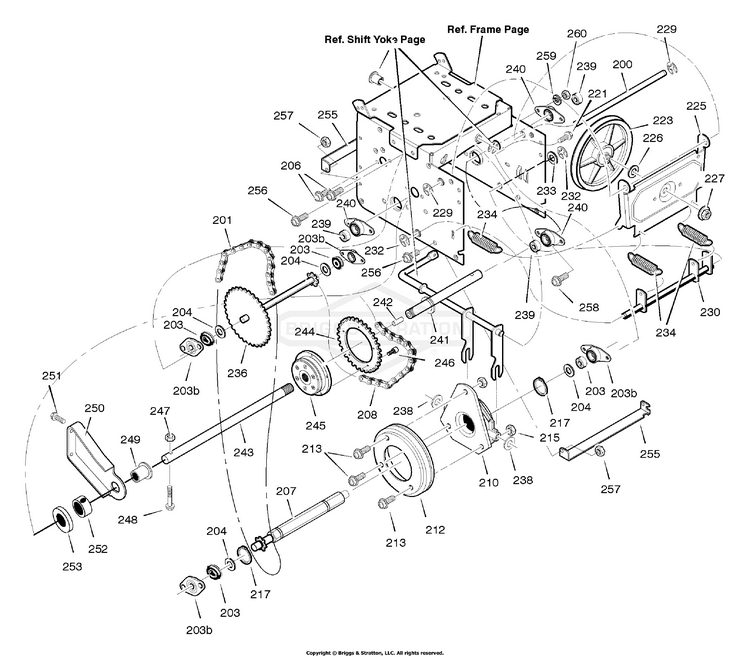

Drive

...
...
200
SPRING LINK BS-703328
...
201
CHAIN, ROLLER 420X19. BS-579851MA
...
203
BEARING, BALL BS-579863MA
...
203b
RETAINER, BEARING BS-579850MA
...
204
WASHER.502-0.75-.06 F BS-579858MA
...
206
SCREW.31-18X0.50 WAHH BS-25X020MA
...
207
ASSEMBLY, HEX SHAFT BS-1502032MA
...
208
CHAIN,ROLLER 420X18.0 BS-579868MA
...
210
BEARING TRUNNION ASSY BS-1739282YP
...
212
WHEEL,FRICTION 4.3 RU BS-1501435MA
...
213
BOLT BS-001X38MA
...
215
NUT, HEX, KEPS,1/4-20 BS-703914
...
217
RING,RETEXT .54X.03TR BS-579859MA
...
221
SCREW.31-18X0.50 WAHH BS-25X020MA
...
223
FRICTION PULLY BS-1501115MA
...
225
PLATE, Swinging BS-1501057YZMA
...
226
SPACER,FRICTION PULLE BS-1501158MA
...
227
NUT, FLANGE LOCK 3/8- BS-15X114MA
...
229
RETAINER, RING 7/16 Y BS-11X30MA
...
230
ASSEMBLY, SPRING LINK STEERABLE BS-1502084YZMA
...
232
RETAINER, RING 7/16 Y BS-11X30MA
...
233
WASHER BS-017X57MA
...
234
SPRING, Extension BS-1736469YP
...
236
SPROCKET SET 33T/7 BS-1501102MA
...
238
WASHER, FLAT .53X1.00 BS-71074MA
...
239
BEARING, BALL BS-53263MA
...
240
RETAINER, BEARING BS-50648MA
...
241
AXLE, LEFT BS-1502106MA
...
242
PIN, AXLE BS-1502024MA
...
243
AXLE&BSG ASY STR RH R BS-1502047MA
...
244
SPROCKET BS-1501623MA
...
245
CLUTCH, AUTO LOCK BS-1501619MA
...
246
SCREW BS-0352X3
...
247
NUT, 1/4-20, NYLOCK BS-703232
...
248
SCREW, SHR 1/4-20X1.7 BS-577015MA
...
249
BEARING,AXLE BS-1501114MA
...
250
BRACKET, AXLE SUPPORT BS-1501618YZMA
...
251
SCREW, 5/16-18 X .75 BS-703228
...
252
COLLAR, LOCKING BS-1501620MA
...
253
WASHER BS-17X195MA
...
255
BRACKET, SUPPORT BS-704216
...
256
BOLT BS-001X38MA
...
257
NUT, 1/4-20, GR5 BS-703233
...
258
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
259
WASHER BS-71062
...
260
NUT BS-71044
