633129x5A Murray - Dual Stage Snow Thrower (2003)

Model: 633129x5A

Back To Assemblies

Save Part Not Listed?
product name

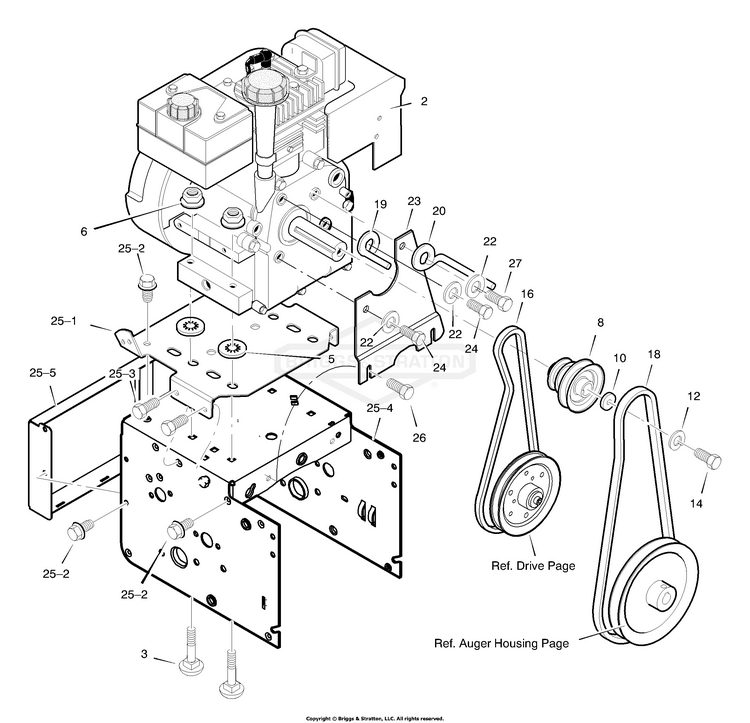

Engine

...
...
3
BOLT, 5/16-18X1.50 BS-704210
...
5
NUT,SPEED BS-028X76MA
...
6
NUT, HEX 5/16-18 BS-710026
...
8
PULLEY, ENGINE BS-1501109MA
...
10
WASHER BS-710247
...
12
WASHER BS-71063
...
14
SCREW, 3/8-24 x 1.00 BS-71015
...
16
BELT, HYDRO DRIVE BS-37X141
...
18
BELT, AUGER V 4L BS-761788MA
...
19
GUIDE,BELT HYDRO BS-1501368MA
...
20
BELT GUIDE BS-1739070YP
...
22
M-BAG,2LBG.38 K25 N BS-1501670MA
...
23
PLATE, VIBRATION BS-1501754
...
24
SCREW, 5/16-24 x 0.75 BS-710097
...
25-1
PLATE, ENGINE MOUNT BS-1501062E201
...
25-2
SCREW, 1/4-20X0.625 BS-703054
...
25-3
SCREW.31-18X0.50 WAHH BS-25X020MA
...
25-4
FRAME, MOTOR BOX BS-1501296E201
...
25-5
PANEL, BACK - HYDRO BS-1501333E201
...
26
SCREW.25-20 S-T BS-26X263MA
...
27
BOLT, HEX, 5/16-24X1 BS-703301
...
--
OWNER'S MANUAL BS-F-0310103L
