633129x5A Murray - Dual Stage Snow Thrower (2003)

Model: 633129x5A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

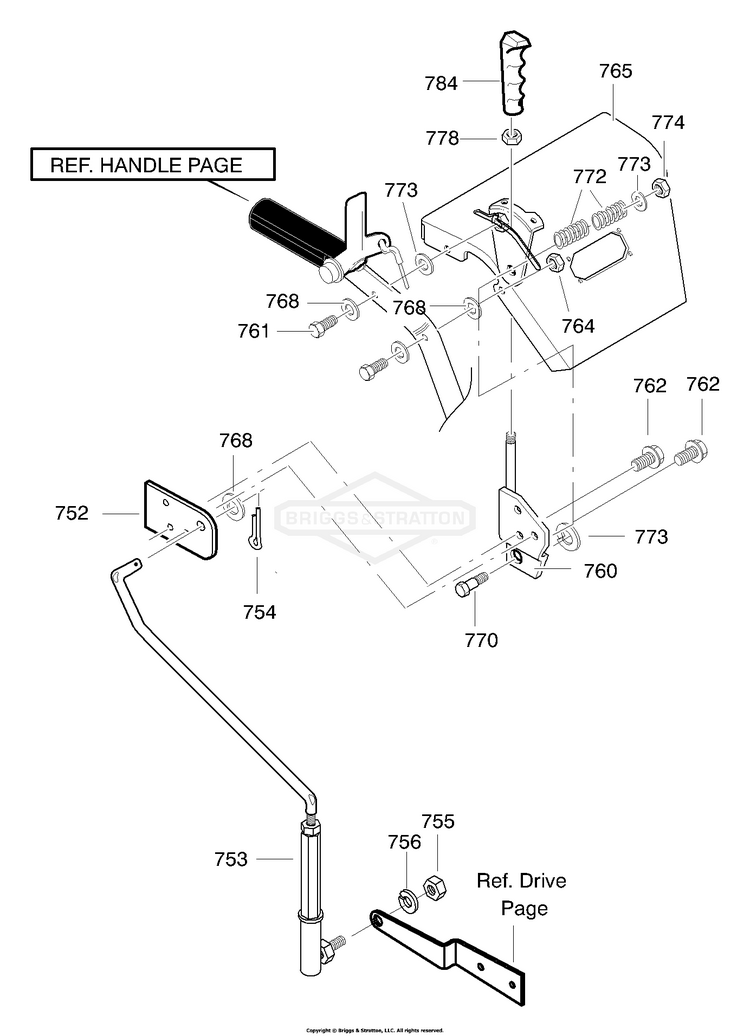

Control Panel Assembly

...
...
752
BRACKET, CONTROL BS-1501749
...
753
ASSEMBLY, ROD BS-1501761
...
754
PIN, COTTER BS-71081
...
755
NUT.31-24 HEX BS-71042MA
...
756
M-BAG,2LBG.38 K25 N BS-1501670MA
...
760
HANDLE ASSY SPD CTRL BS-85030 YZ
...
761
BOLT, 5/16-18 X 1-3/4 BS-5025011X14SM
...
762
SCREW, 1/4-20X0.625 BS-703054
...
764
NUT, 5/16-18 BS-710026
...
765
ASSY. BAY PANEL - LT BS-1501747E201MA
...
768
WASHER BS-703350
...
770
BOLT, 3/8-16 X 3" GD5 BS-5025013X24SM
...
772
SPRING,.509 DIA X0.75 BS-50786MA
...
773
FLATWASHER BS-71072
...
774
NUT BS-703117
...
778
NUT, 3/8-16 BS-71044
...
781
WASHER BS-703350
...
784
HANDLE, GRIP BS-304728MA
