633129x54A Murray - Dual Stage Snow Thrower (2000)

Model: 633129x54A

Back To Assemblies

Save Part Not Listed?
product name

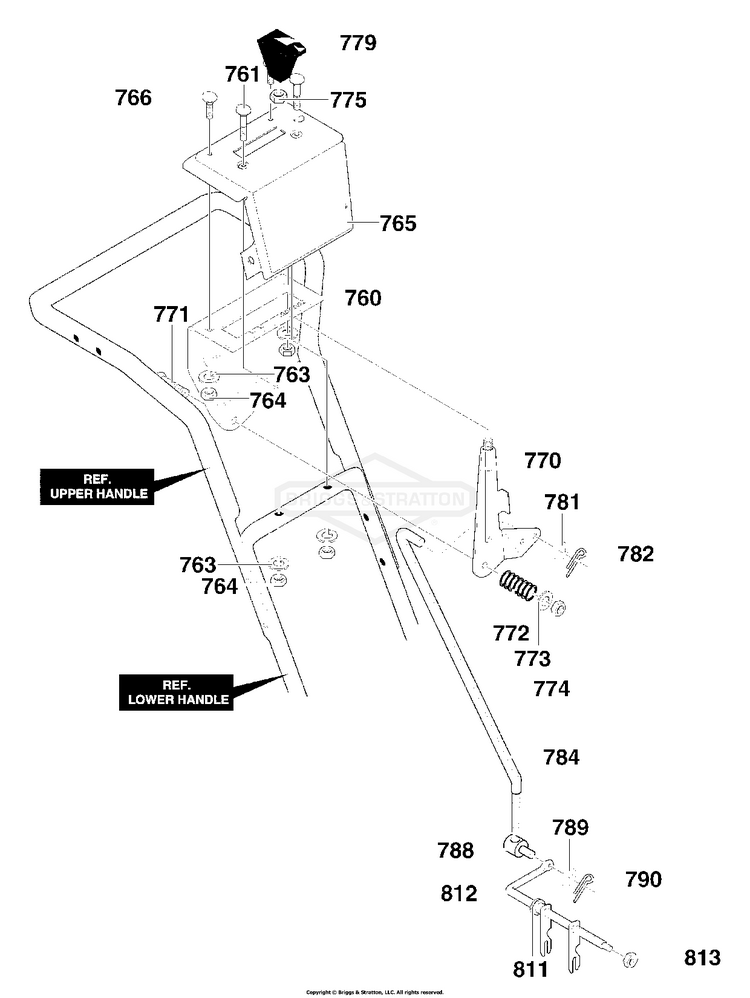

Control Panel

...
...
760
BRACKET, SHIFT CONTROL BS-308905-821
...
761
Bolt BS-340715MA
...
763
WASHER BS-071059MA
...
764
NUT, 1/4-20 BS-120375
...
765
CONTROL PANEL BS-761973-821
...
766
CARR. BOLT, 1/4-20X2.00 BS-762148
...
770
SHIFT LEVER ASSY BS-305260-821
...
771
BOLT, 5/16-18 X 1-3/4 BS-5025011X14SM
...
772
SPRING BS-313842
...
773
WASHER, FLAT BS-120393
...
774
NUT, HEX, 5/16-18 BS-703902
...
775
NUT, 3/8-16 HEXJAM BS-124829
...
779
KNOB, SHIFT BS-306689MA
...
781
WASHER, FLAT BS-120393
...
782
PIN, COTTER, 3/32X.75 BS-703312
...
784
ROD, SPEED CONTROL BS-761668MA
...
788
NUT, TRUNNION 5/16-24 BS-584593
...
789
WASHER, FLAT BS-120393
...
790
PIN, COTTER, 3/32X.75 BS-703312
...
811
BRNG FL .500ID X .88 BS-579944MA
...
812
ROD ASSY, YOKE PANEL BS-337436
...
813
NUT, 3/8-16 HEX BS-071111
