633128x43A Murray - Dual Stage Snow Thrower (2003)

Model: 633128x43A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

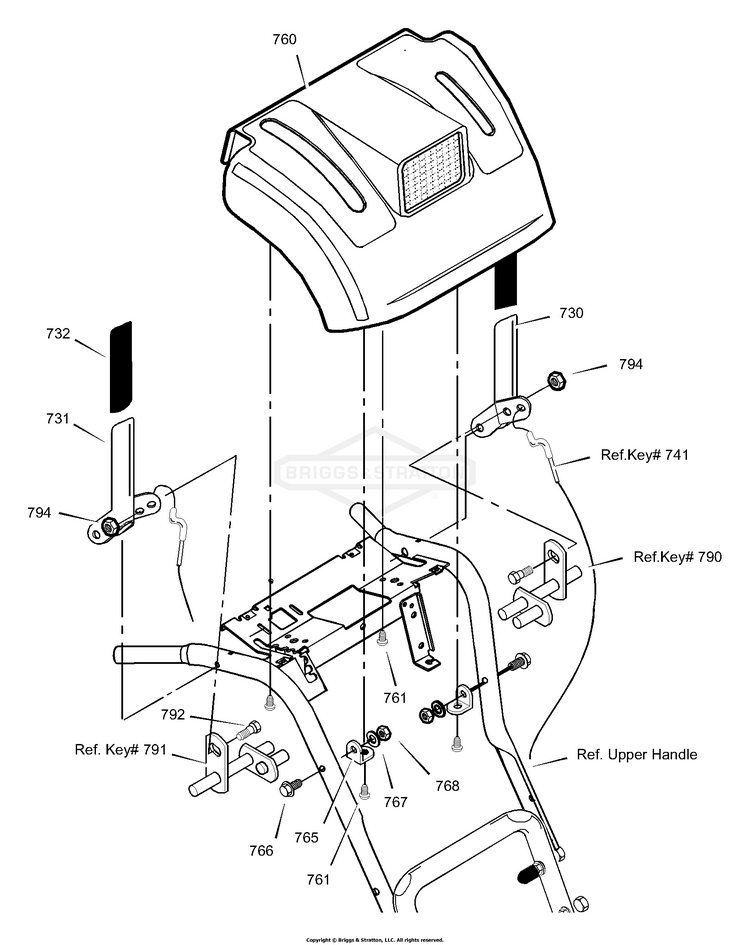

Control Panel

...
...
730
CLUTCH HANDLE LH BS-1501358E701MA
...
731
CLUTCH HANDLE RH BS-1501357E701MA
...
732
GRIP, CLUTCH LEVER BS-337380MA
...
760
PANEL, CONTROL BS-1501486MA
...
761
SCREW, 10X.62 UNSL-HW BS-316042MA
...
765
BRACKET, PANEL BS-578866E701
...
766
BOLT, 5/16-18 X 1-3/4 BS-5025011X14SM
...
767
M-BAG,2LBG.38 K25 N BS-1501670MA
...
768
HN, 5/16C GR5 YZ BS-7091511SM
...
792
BOLT, 1/4-20X .50 CAR BS-905531MA
...
794
NUT, 1/4-20, NYLOCK BS-703232
