632130x16B Murray - Dual Stage Snow Thrower (2004)

Model: 632130x16B

Back To Assemblies

Save Part Not Listed?
product name

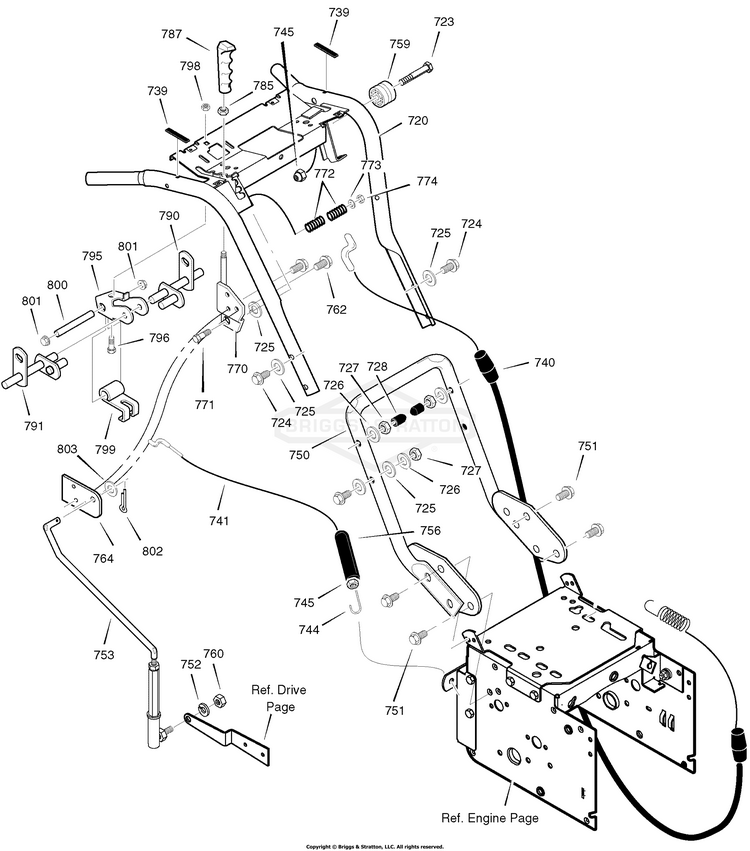

Handle

...
...
720
ASSY., HANDLE BS-MT1501381E701
...
723
BOLT BS-MT01X129
...
724
SCREW BS-MT7288
...
725
WASHER BS-MT71072
...
726
WASHER BS-MT71062
...
727
NUT BS-MT71044
...
728
STOP, PLASTIC BS-MT7289
...
739
BUMPER BS-MT4049
...
740
CABLE, DRIVE BS-MT1501363
...
741
CABLE, AUGER BS-MT1501451
...
744
SPRING, AUGER CLUTCH BS-MT1673
...
745
NUT, HEX - 1/4-20 BS-MT15X145
...
750
HANDLE, LOWER BS-MT1501449E701
...
751
SCREW BS-MT25X021
...
753
ASSEMBLY, ROD BS-MT1501465
...
759
SPOOL, CABLE BS-MT579860
...
756
BOOT, SPRING BS-MT308146
...
760
NUT, 5/16-24 BS-MT71042
...
762
SCREW 1/4-20X0.63 BS-MT310169
...
764
BRACKET, CONTROL BS-MT1501367 YZ
...
770
BRACKET, SHIFT BS-MT1501375 YZ
...
771
SCREW BS-MT7288
...
772
SPRING BS-MT50786
...
773
WASHER BS-MT71072
...
774
NUT, HEX, 3/8-16 BS-MT71046
...
785
NUT, HEX, 3/8-16 BS-MT71045
...
787
GRIP, LEVER BS-MT306689
...
790
ROD, ASSY LH BS-MT578926E701
...
791
ROD, ASSY RH BS-MT578924E701
...
795
BRACKET, CAM BS-MT579002
...
796
SCREW BS-MT002X53
...
798
NUT, NYLOCK BS-MT71038
...
799
CAM LOCK BS-MT8417
...
800
PIN, SPRING PIVOT BS-MT584673
...
801
NUT, PUSH ON BS-MT73664
...
802
PIN, COTTER BS-MT71081
...
803
WASHER BS-MT71071
