631124x31A Murray - Dual Stage Snow Thrower (2000)

Model: 631124x31A

Back To Assemblies

Save Part Not Listed?
product name

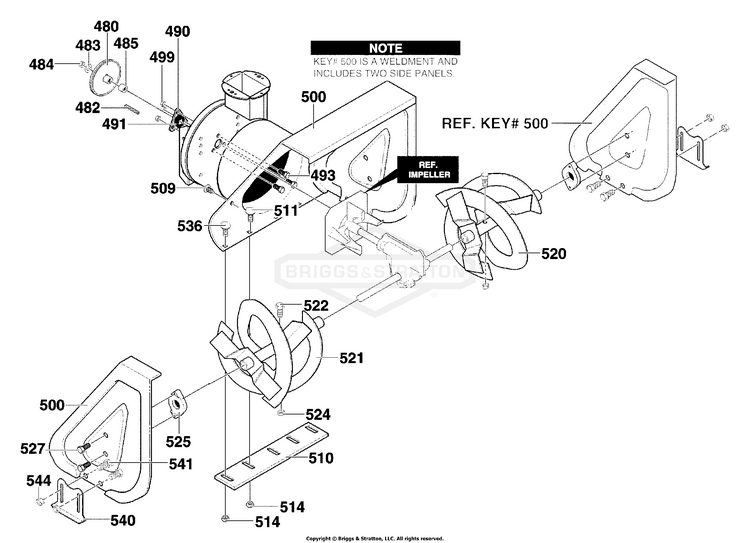

Auger Housing Assembly

...
...
480
PULLEY, 4L 8.40 BS-583146MA
...
482
KEY,SQUARE 3/16 X 3/4 BS-2001022MA
...
483
WASHER, FLAT .53X1.00 BS-71074MA
...
484
NUT, 1/2-20 REGHXCTRLK BS-712121MA
...
485
SPACER, SLEEVE BS-334514MA
...
490
RETAINER, BALL BRNG BS-582960
...
491
BEARING, BALL BS-043846
...
493
SCREW, 5/16-18 x 0.75 BS-313676
...
499
NUT, 5/16-18 HEXWDFLLK BS-710026
...
500
HOUSING, ASSY BS-761881-898
...
509
PLUG BS-760040MA
...
510
BLADE, SCRAPER BS-760665-821
...
511
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
514
NUT, 5/16-18 BS-710026
...
520
AUGER, ASSY, LH BS-760321-821
...
521
AUGER, ASSY, RH BS-760311-821
...
522
BOLT, 5/16-18 BS-703335
...
524
NUT, 5/16-18 REGHEXCTRLK BS-1498
...
525
BRNG,AUGER SHAFT MF-L BS-53757MA
...
527
SCREW, 5/16-18 x 0.75 BS-782967MA
...
536
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
540
SKID, HEIGHT ADJUST BS-762376-821
...
541
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
544
NUT, 5/16-18 REGHEX BS-710026
