631114x61A Murray - Dual Stage Snow Thrower (2000)

Model: 631114x61A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

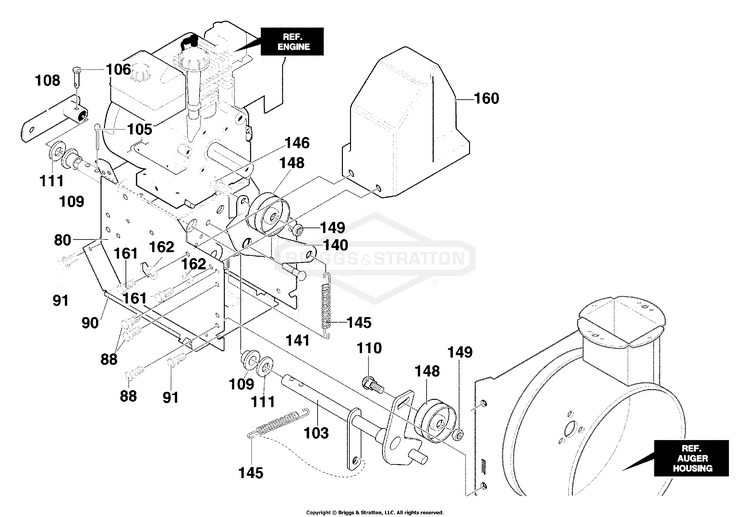

Frame Components

...
...
80
FRAME, ASSY BS-761705-892
...
88
SCREW, 5/16-18X.5 BS-703985
...
90
COVER, BOTTOM BS-583031-853
...
91
SCREW, 1/4-20X0.625 BS-703054
...
103
ASSY., IDLER BS-762296MA
...
105
PIN, 3/32 X 1.6 BS-703300
...
106
PIN, CLEVIS 3/16" DIA BS-761761MA
...
108
ASSY.,SPRING ATTACH WHEEL BS-761766MA
...
109
BEARING, FLANGE BS-53703MA
...
110
CARRIAGE BOLT, 3/8-16 x 1-1/4, G5 BS-1960268SM
...
111
FLATWASHER BS-711617
...
140
LEVER, IDLER ARM TRACTION BS-761701MA
...
141
BOLT, 5/16-18 BS-329989MA
...
145
SPRING, IDLER TRACTIO BS-53704MA
...
146
SCREW, 3/8-16 x 1.25 BS-761760
...
148
IDLER, Plastic Ball Bearing BS-1502120MA
...
149
NUT, 3/8-16 HXCTRLKJA BS-41529MA
...
160
BELT COVER BS-760479
...
161
SCREW, 1/4-20X0.625 BS-703054
...
162
WASHER BS-703332
