631114x61A Murray - Dual Stage Snow Thrower (2000)

Model: 631114x61A

Back To Assemblies

Save Part Not Listed?
product name

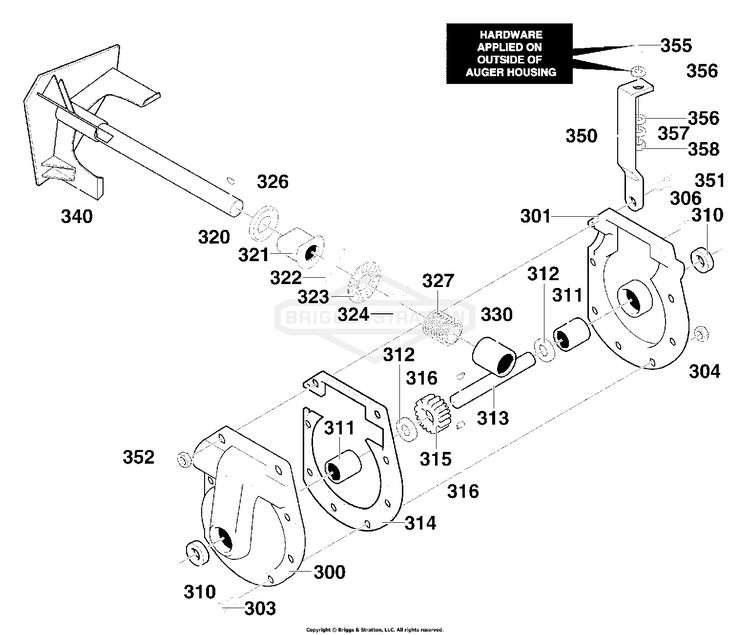

Gear Case

...
...
300
CASE,GEAR RH 12AUG/10 BS-896MA
...
301
CASE, GEAR LH 12"AUG/ BS-895MA
...
303
BOLT, HEX, 5/16-24X1 BS-703301
...
304
NUT BS-703123
...
306
PIPE PLUG BS-313872
...
310
SEAL, OIL CR 530552 BS-780151MA
...
311
BRNG,SLEV 1X1.25X1 BS-53743MA
...
312
WASHER, FLAT 1.00 x 1.54 x .09 BS-313871
...
313
SHAFT, AUGER OUTPUT BS-760409MA
...
314
GASKET, GEAR BOX BS-897MA
...
315
GEAR, WORM BS-1752500YP
...
316
KEY, WOODRUFF,.25X.75 BS-704280
...
320
RING, QUAD BS-313914
...
321
BRNG, FL .753IDX1.128 BS-583126MA
...
322
WASHER, FLAT .752X1. BS-48275MA
...
323
BEARING, ROLL BS-313828
...
324
WASHER, FLAT .752X1. BS-48275MA
...
326
KEY, HI-PRO 606 .75D BS-50795MA
...
327
WORM GEAR BS-313862
...
330
BEARING, SLEEVE BS-53731MA
...
340
IMPELLER BS-761609-853
...
350
BRACE, GEAR BOX BS-5524MA
...
351
BOLT BS-5025025X14YP
...
352
NUT BS-703123
...
355
SCREW.31-18X1.25 HHC BS-302636MA
...
356
WASHER, FLAT .349X.69X.066 BS-120393
...
357
WASHER, SPTLK .31X.58X.08 BS-120638
...
358
HN, 5/16C GR5 YZ BS-7091511SM
...
--
LUBRIPLATE BS-770622
