629924x0A Murray - Dual Stage Snow Thrower (2003)

Model: 629924x0A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

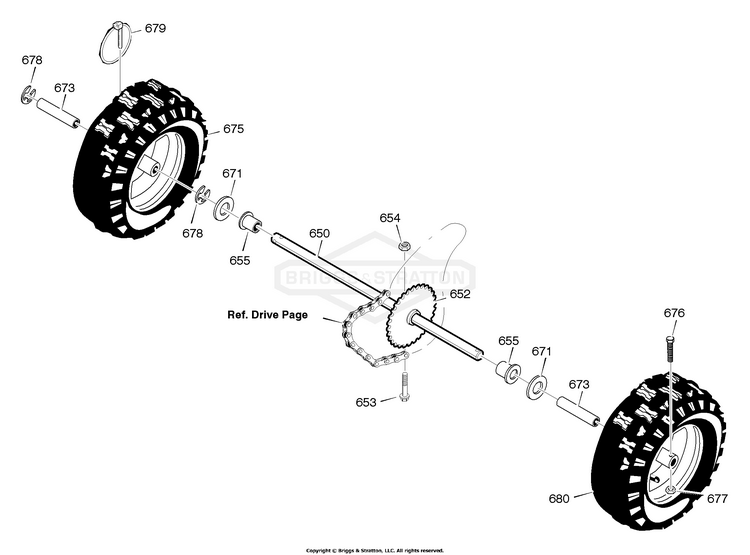

Wheels

...
...
650
AXLE,23.14LK1 BSHG 16 BS-1501563YZMA
...
652
SPROCKET,AXLE WF BS-1501089MA
...
653
BOLT, HEX,1/4-20X1.75 BS-704212
...
654
NUT, 1/4-20, NYLOCK BS-703232
...
655
BEARING,AXLE BS-1501114MA
...
671
FLATWASHER BS-712120MA
...
673
BUSHING, WHEEL BS-1501138MA
...
675
TIRE & RIM, RIGHT BS-584633MA
...
676
SCREW, SHR 1/4-20X1.7 BS-577015MA
...
677
NUT, 1/4-20, NYLOCK BS-703232
...
678
RETAINER, Ring BS-1657528SM
...
679
KLIK PIN ASSY BS-500016MA
...
680
TIRE & RIM, LEFT BS-584633MA
