629924x0A Murray - Dual Stage Snow Thrower (2003)

Model: 629924x0A

Back To Assemblies

Save Part Not Listed?
product name

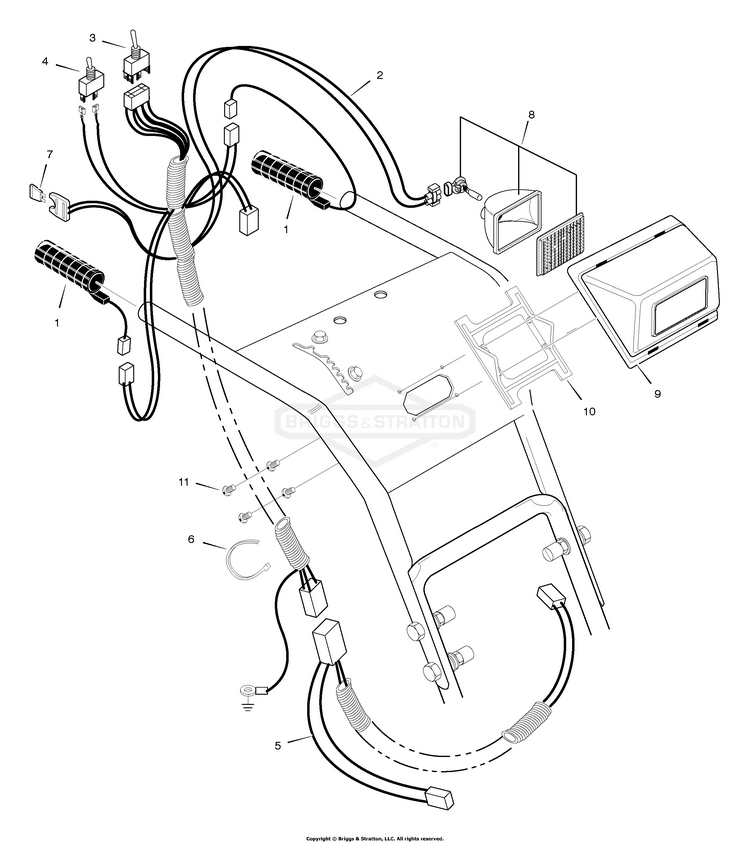

Wiring (part 1)

...
...
1
GRIP, HEATED BS-1501352MA
...
2
WIRE, HARNESS BS-1501351MA
...
3
SWITCH, CHUTE ROTATION BS-1501348MA
...
4
SWITCH, HEATED GRIP BS-1501349MA
...
5
WIRE HARNESS, LOWER BS-1501350MA
...
6
TIE,STRAP-REMOVABLE BS-071372MA
...
8
HEADLIGHT ASSEMBLY * BS-762343MA
...
9
CASE, HEADLIGHT BS-584727MA
...
10
BRACKET, HEADLIGHT BS-584728MA
...
11
SCREW, 10X.62 UNSL-HW BS-316042MA
