629924x0A Murray - Dual Stage Snow Thrower (2003)

Model: 629924x0A

Back To Assemblies

Save Part Not Listed?
product name

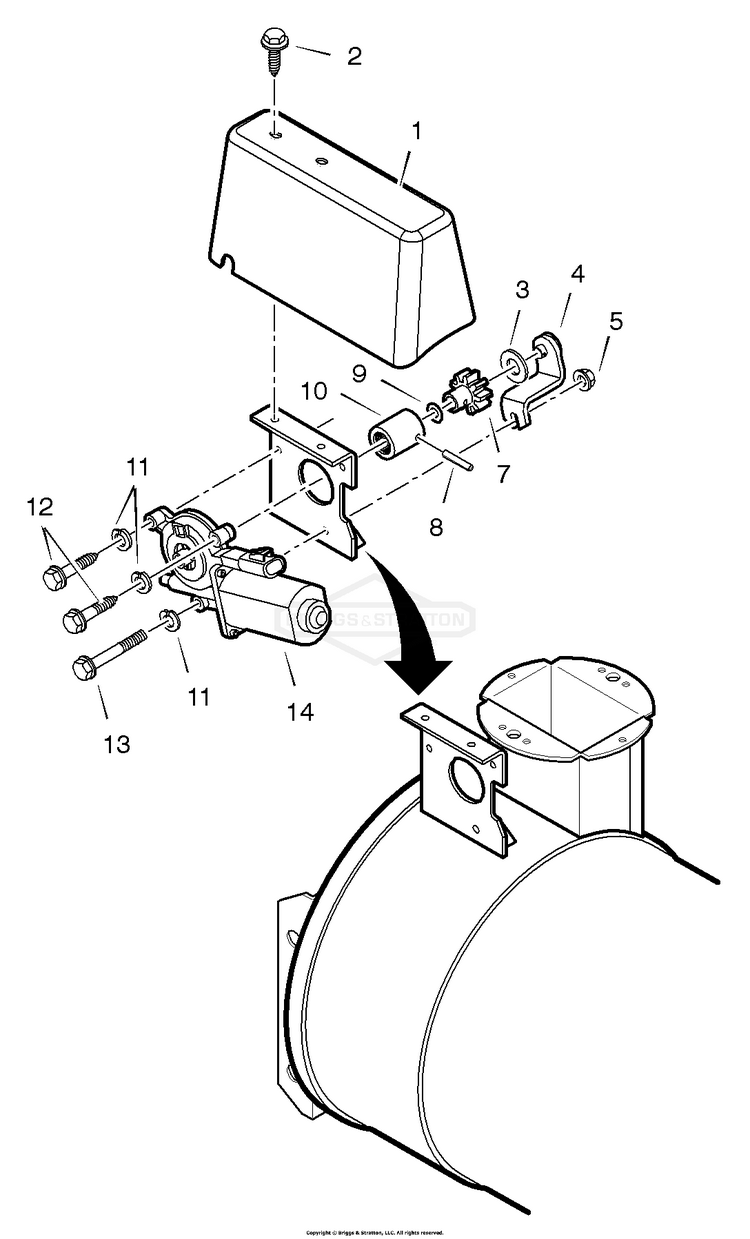

Chute Rotation Motor

...
...
1
COVER, MOTOR BS-1501347
...
2
SCREW.25-20 S-T BS-26X263MA
...
3
WASHER BS-703326
...
4
BRACE, CHUTE GEAR BS-1501396
...
5
NUT,25-20 HEX FLG CTR BS-15X143MA
...
7
GEAR,9 TOOTH 8DP BS-1501067MA
...
8
PIN, SPRING BS-032X75MA
...
9
RING, RETAINER BS-1501430
...
10
ADAPTER BS-1501341
...
11
WASHER BS-018X30
...
12
SCREW BS-26X310
...
13
BOLT, HEX BS-001X94
...
14
MOTOR, ELECTRIC BS-1501340MA
