629924x0A Murray - Dual Stage Snow Thrower (2003)

Model: 629924x0A

Back To Assemblies

Save Part Not Listed?
product name

Remote Control

...
...
965
TENSION SPRING BS-318468MA
...
967
BOLT-SHD.250X.312 .25 BS-310088MA
...
968
WASHER, FLAT .330X . BS-73787MA
...
969
NUT,25-20 HEX FLG CTR BS-15X143MA
...
970
SCREW BS-313676
...
971
BRACKET, CABLE CHUTE BS-306447 YZ
...
972
IDLER SUPT ASSY 22SD BS-1101253MA
...
973
TRIM,BLACK W/ADHESIVE BS-1001221MA
...
974
TIE, CABLE BS-760113MA
...
975
ASSY, CHUTE DEF. CONTROL BS-1501393MA
...
980
SCREW, 1/4-20X.375 BS-703583
...
981
WIRE FORM,REMOTE CHUT BS-780220MA
...
994
NUT BS-71045
...
995
GRIP BS-306689MA

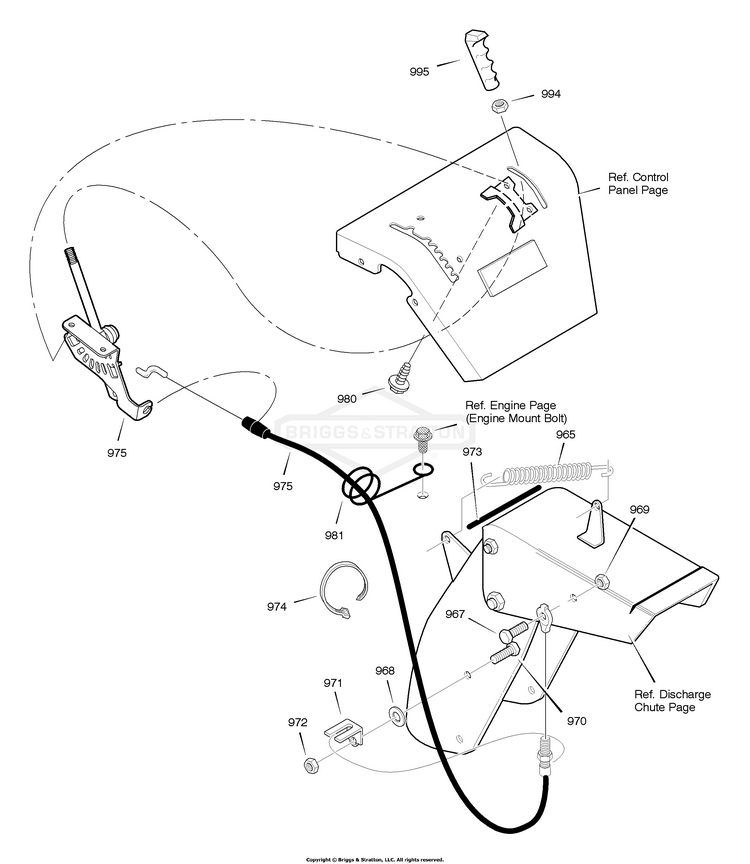

Schematic Image Zoomed
