629909x64B Murray - Dual Stage Snow Thrower (2003)

Model: 629909x64B

Back To Assemblies

Save Part Not Listed?
product name

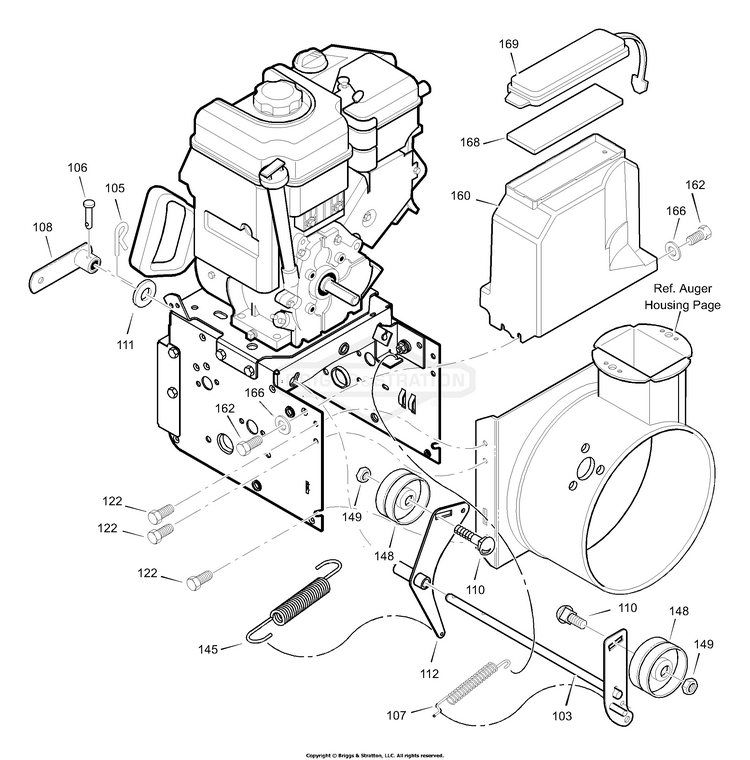

Frame

...
...
103
IDLER ASSEMBLY, AUGER BS-1501369 YZ
...
105
PIN, 3/32 X 1.6 BS-703300
...
106
PIN, CLEVIS 3/16" DIA BS-761761MA
...
107
SPRING, TENSION BS-165X159MA
...
108
ASSY., SPRING ATTACH BS-761675 YZ
...
110
CARRIAGE BOLT, 3/8-16 x 1-1/4, G5 BS-1960268SM
...
111
WASHER, FLAT BS-711617
...
112
BRKT,DRIVE IDLER HYDR BS-1501370YZMA
...
122
SCREW, 5/16-18X.5 BS-703985
...
145
SPRING, CLUTCH BS-165X155MA
...
148
IDLER, Plastic Ball Bearing BS-1502120MA
...
149
NUT, HEX, 3/8-16 BS-703996
...
160
COVER, BELT BS-1501171
...
162
SCREW, 1/4-20 X 3/4 BS-1751355YP
...
167
WASHER BS-703332
...
168
PAD, FOAM BS-761187MA
...
169
LID, TOOL BOX BS-761167
